YM35RV-MRSBEQ (1985)

Toyota Liteace

Production Sep 1985 - Aug 1988
Engine 2YC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

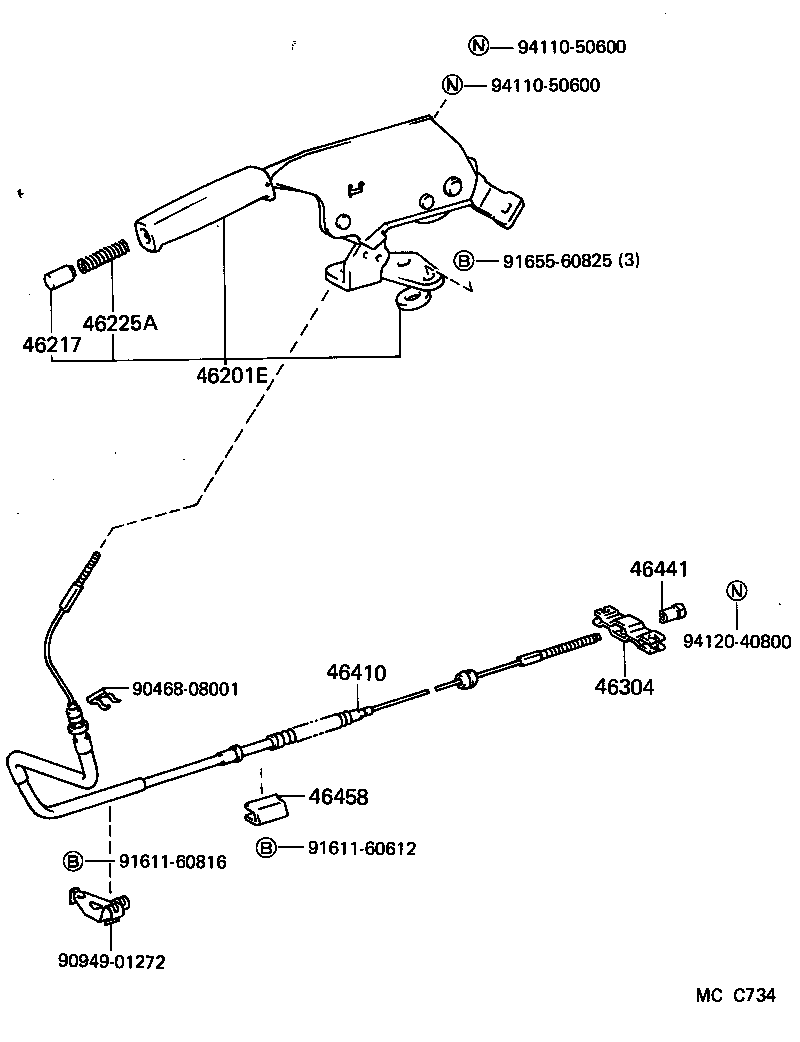

ILLUST NO. 1 OF 2(8509- )RHD

Click highlighted areas on diagram

diagram 46201E 46217 46225A 46304 46410 46441 46458 9046808001 9094901272 9161160612 9161160816 9165560825 9411050600 9411050600 9412040800
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-2702106

CM3#,KM36,YM30,35,40..RHD

BROWN,BROWN

 1
46201-2702006

CM3#,KM36,YM3#,4#..RHD

BROWN,BROWN

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-1002026

CM35,KM36,YM3#..RHD

BROWN,BROWN

 1
46217-2002016

CM3#,KM36,YM3#,4#..RHD

BROWN,DARK BROWN

 1
46217-1202016

CM3#,KM36,YM30,35,40..RHD

BROWN,BROWN

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10745

CM3#,KM36,YM3#,4#..RHD

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46304-22020

CM3#,KM3#,YM3#,4#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-27120

KM36,YM3#,4#..RHD

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-35010

CM3#,KM3#,YM3#,4#

 1
46458 - RETAINER, CABLE
46458-28010

CM3#,KM3#,YM3#,4#

 4
Common parts
90468-08001
90949-01272
91611-60612
91611-60816
91655-60825
94110-50600
94120-40800

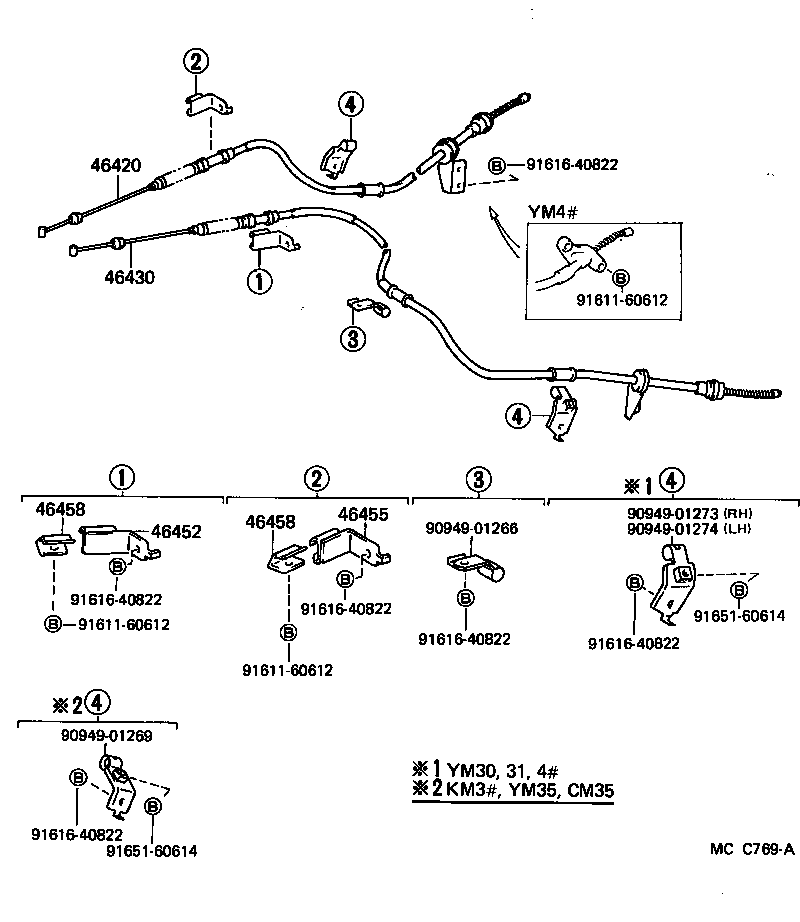

ILLUST NO. 2 OF 2(8509- )

Click highlighted areas on diagram

diagram 46420 46430 46452 46455 46458 46458 9094901266 9094901269 9094901273 9094901274 9161160612 9161160612 9161160612 9161640822 9161640822 9161640822 9161640822 9161640822 9161640822 9165160614 9165160614
Part # Description Qty Price
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-27150

CM3#,KM3#,YM35

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-27150

CM3#,KM3#,YM35

 1
46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
46452-28060

CM3#,KM3#,YM3#,4#

 1
46455 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.3
46453-28010

CM3#,KM3#,YM3#,4#

 1
46458 - RETAINER, CABLE
46458-28010

CM3#,KM3#,YM3#,4#

 4
46458 - RETAINER, CABLE
46458-28010

CM3#,KM3#,YM3#,4#

 4
Common parts
90949-01266
90949-01269
90949-01273
90949-01274
91611-60612
91616-40822
91651-60614
