YM35RV-MRSBEQ (1985)

Toyota Liteace

Production Sep 1985 - Aug 1988
Engine 2YC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )2Y#,3YC

Click highlighted areas on diagram

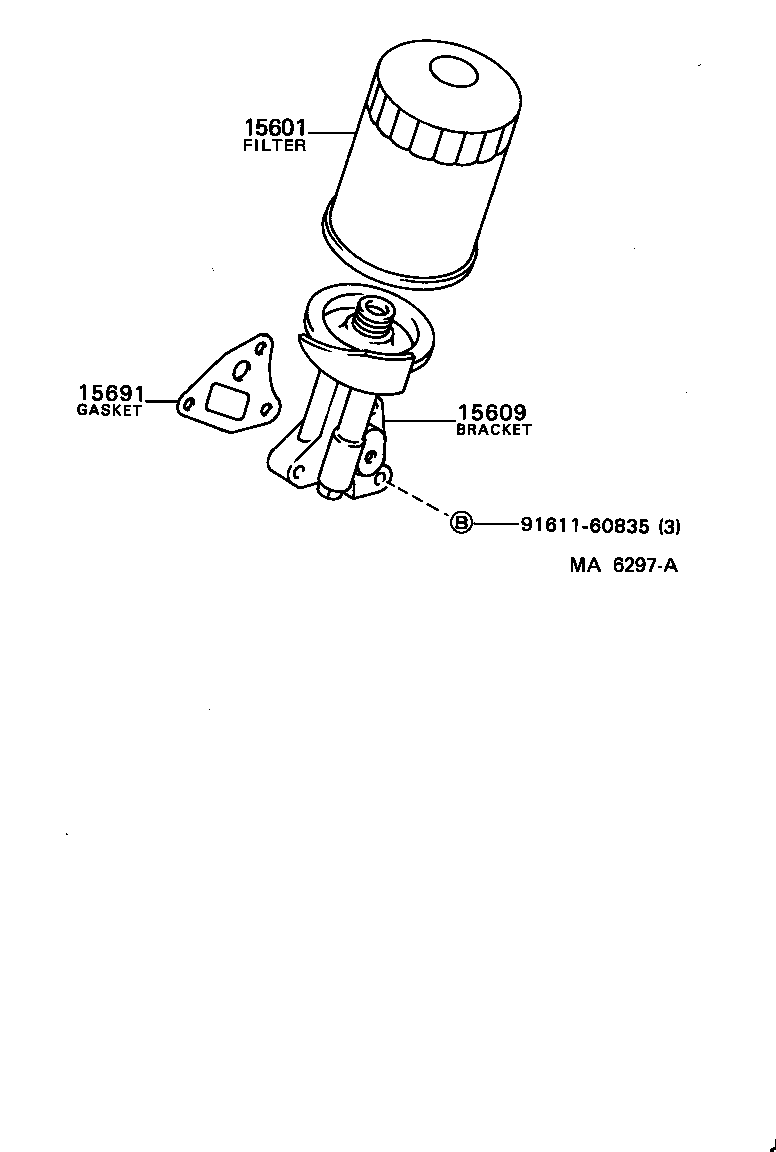

diagram 15601 15609 15691 9161160835
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
15601-33021

2Y#,3YC..YM3#,4#

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-71011

2Y#,3YC..YM3#,4#

 1
15609-71010

2Y#,3YC..YM3#,4#

 1
15691 - GASKET, OIL FILTER
15691-71010

2Y#,3YC..YM3#,4#

 1
Common parts
91611-60835
