YM35RV-MRSBEQ (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 2YC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )RHD

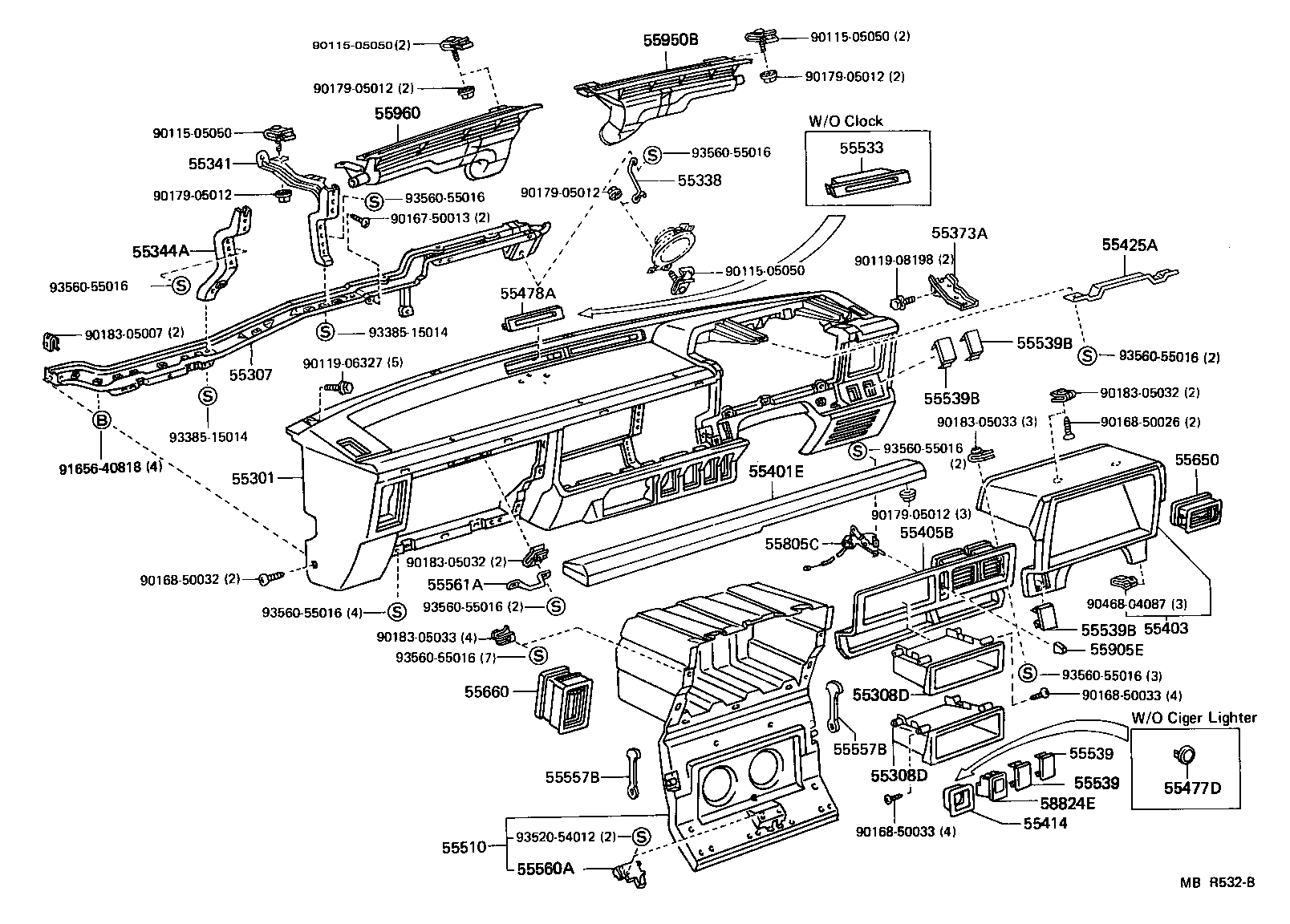

Click highlighted areas on diagram

diagram 55301 55307 55308D 55308D 55338 55341 55344A 55373A 55401E 55403 55405B 55414 55425A 55477D 55478A 55510 55533 55539 55539 55539B 55539B 55539B 55557B 55557B 55560A 55561A 55650 55660 55805C 55905E 55950B 55960 58824E 9011505050 9011505050 9011505050 9011505050 9011906327 9011908198 9016750013 9016850026 9016850032 9016850033 9016850033 9017905012 9017905012 9017905012 9017905012 9017905012 9018305007 9018305032 9018305032 9018305033 9018305033 9046804087 9165640818 9338515014 9338515014 9352054012 9356055016 9356055016 9356055016 9356055016 9356055016 9356055016 9356055016 9356055016 9356055016
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55311-9571313

CM36,KM36,YM35..RHD

GRAY,TRIM1#

 1
55307 - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER
55307-95703

CM36,KM36,YM3#..RHD

 1
55308D - BOX SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-95701

CM36,KM3#,YM3#

 1
55308D - BOX SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-95701

CM36,KM3#,YM3#

 1
55338 - EXTENSION, INSTRUMENT PANEL REINFORCEMENT, NO.1
55338-95700

CM36,KM36,YM3#..RHD

 1
55341 - BRACE, INSTRUMENT PANEL, NO.1
55306-95702

CM36,KM3#,YM3#

 1
55344A - BRACE, INSTRUMENT PANEL TO COWL, NO.3
55344-95700

CM36,KM36,YM3#..RHD

 1
55373A - BRACKET, OIL RESERVOIR TANK
55373-95700

CM36,KM36,YM3#..RHD

 1
55403 - HOOD SUB-ASSY, METER
55403-9570203

CM36,KM36,YM30,35..RHD

GRAY,TRIM1#

 1
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-9570313

KM36..4F;KM36,YM35..VSP..ARL;CM36,KM30,36,YM30,31..MRF..(4FC,4H,5F)

GRAY,TRIM1#

 1
55414 - BEZEL, CIGAR LIGHTER HOLE
55414-95J00

CM36,KM3#,YM3#

 1
55478A - BEZEL, AUTO CLOCK HOLE
55478-9570113

CM36,KM3#,YM3#

GRAY,TRIM1#

 1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55501-9570713

CM36,KM3#,YM3#

GRAY,TRIM1#

 1
55533 - COVER, AUTO CLOCK HOLE
55423-9570213

CM36,KM36,37,YM3#

GRAY,TRIM1#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-2401013

CM36,KM3#,YM3#

GRAY,TRIM1#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-2401013

CM36,KM3#,YM3#

GRAY,TRIM1#

 1
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-3201013

CM36,KM3#,YM3#

SHADOW GRAY,TRIM1#

 1
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-3201013

CM36,KM3#,YM3#

SHADOW GRAY,TRIM1#

 1
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-3201013

CM36,KM3#,YM3#

SHADOW GRAY,TRIM1#

 1
55557B - STOPPER, GLOVE COMPERTMENT DOOR CHECK
55557-95700

CM36,KM3#,YM3#

 2
55557B - STOPPER, GLOVE COMPERTMENT DOOR CHECK
55557-95700

CM36,KM3#,YM3#

 2
55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR
55560-9570413

CM36,KM3#,YM3#

GRAY,TRIM1#

 1
55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK
55561-95702

CM36,KM3#,YM3#

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-9570113

CM36,KM3#,YM3#

GRAY,TRIM1#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-9570113

CM36,KM3#,YM3#

GRAY,TRIM1#

 1
55805C - BRACKET SUB-ASSY, AIR DAMPER CONTROL LEVER
55805-95704

CM36,KM3#,YM3#

 1
55905E - KNOB SUB-ASSY, CONTROL
55905-1205001

CM36,KM3#,YM31,35

BLACK,TRIM1#

 1
55950B - NOZZLE ASSY, DEFROSTER, RH
55950-95703

CM36,KM3#,YM3#

 1
55960 - NOZZLE ASSY, DEFLOSTER, LH
55960-95702

CM36,KM3#,YM3#

 1
Common parts
90115-05050
90119-06327
90119-08198
90167-50013
90168-50026
90168-50032
90168-50033
90179-05012
90183-05007
90183-05032
90183-05033
90468-04087
91656-40818
93385-15014
93520-54012
93560-55016
