YM35RV-MRS (1989)

Toyota Liteace

Production May 1989 - Apr 1998
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

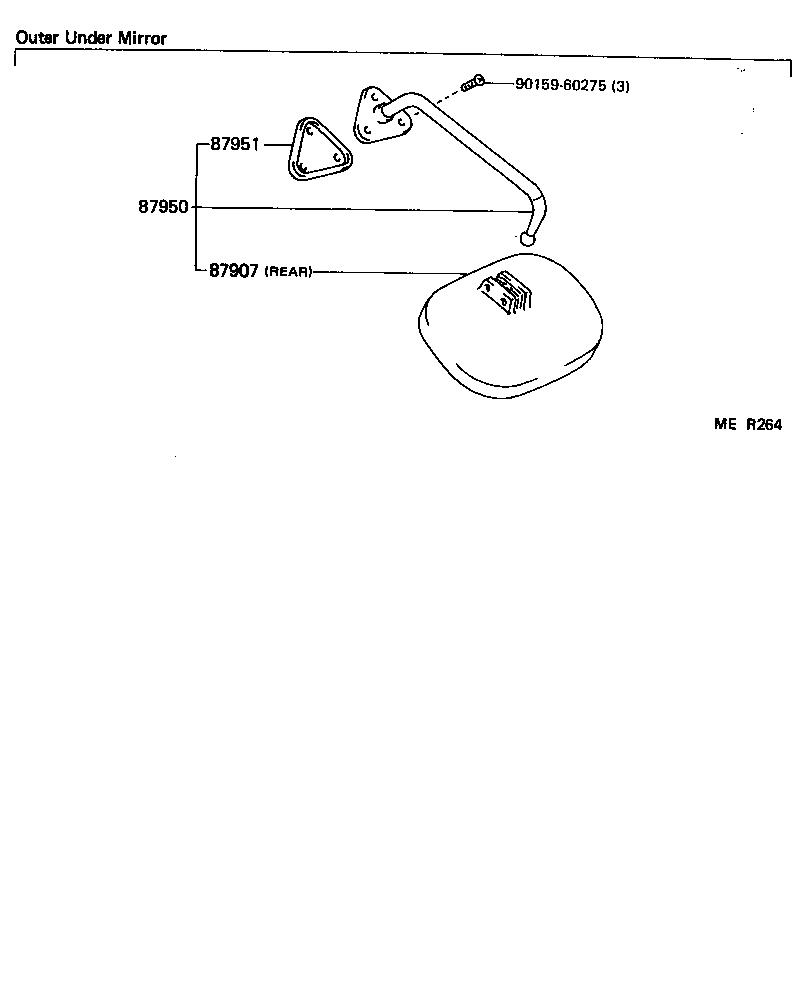

ILLUST NO. 2 OF 2(9001- )

Click highlighted areas on diagram

diagram 87907 87950 87951 9015960275
Part # Description Qty Price
87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW
87907-95J02

KM36..SRF..05S;CM36,YM35..5F..GEN

 1
87907-95J02

YM35..GEN;KM36..SRF..05S

 1
87950 - MIRROR ASSY, OUTER UNDER REAR VIEW
87950-95702

YM35..GEN

MALAYSIA CKD

 1
87951 - GASKET, OUTER UNDER REAR VIEW MIRROR
87951-95701

YM35..GEN

MALAYSIA CKD

 1
Common parts
90159-60275
