YM31RV-MR (1985)

Toyota Liteace

Production Sep 1985 - Aug 1988
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )

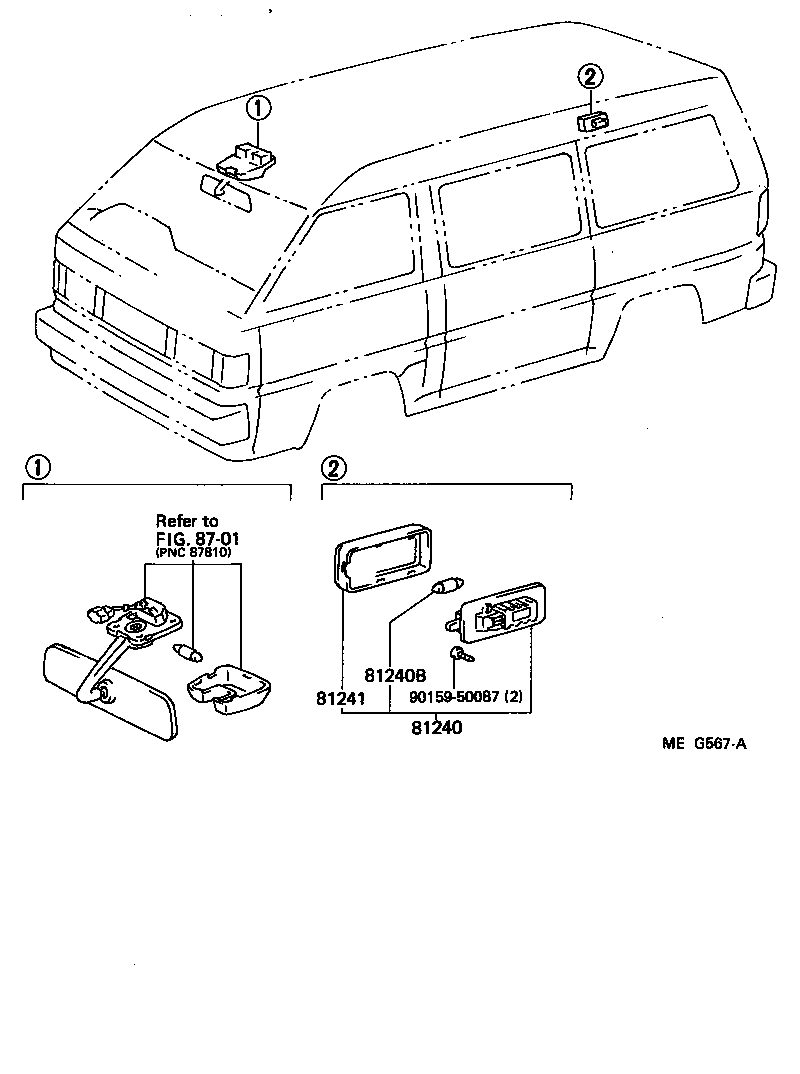

Click highlighted areas on diagram

diagram 81240 81240B 81241 8701 9015950087
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-9570803

YM30,4#

GRAY,GRAY

 1
81240-9570805

KM37,YM30,4#

BEIGE,BEIGE

 1
81240-9570805

CM3#,KM36,YM31..VSG

BEIGE,BEIGE

 1
81240B - BULB, ROOM LAMP, NO.1
90981-11004

CM3#,KM36,YM31..VSG

12V 10W,12V 10W

 1
90981-11004

KM37,YM30,4#

12V 10W,12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-95013

KM37,YM30,4#

 1
81241-95013

CM3#,KM36,YM31..VSG

 1
Common parts
90159-50087
Linked diagrams
8701
