YM31RV-MR (1985)

Toyota Liteace

Production Sep 1985 - Aug 1988
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

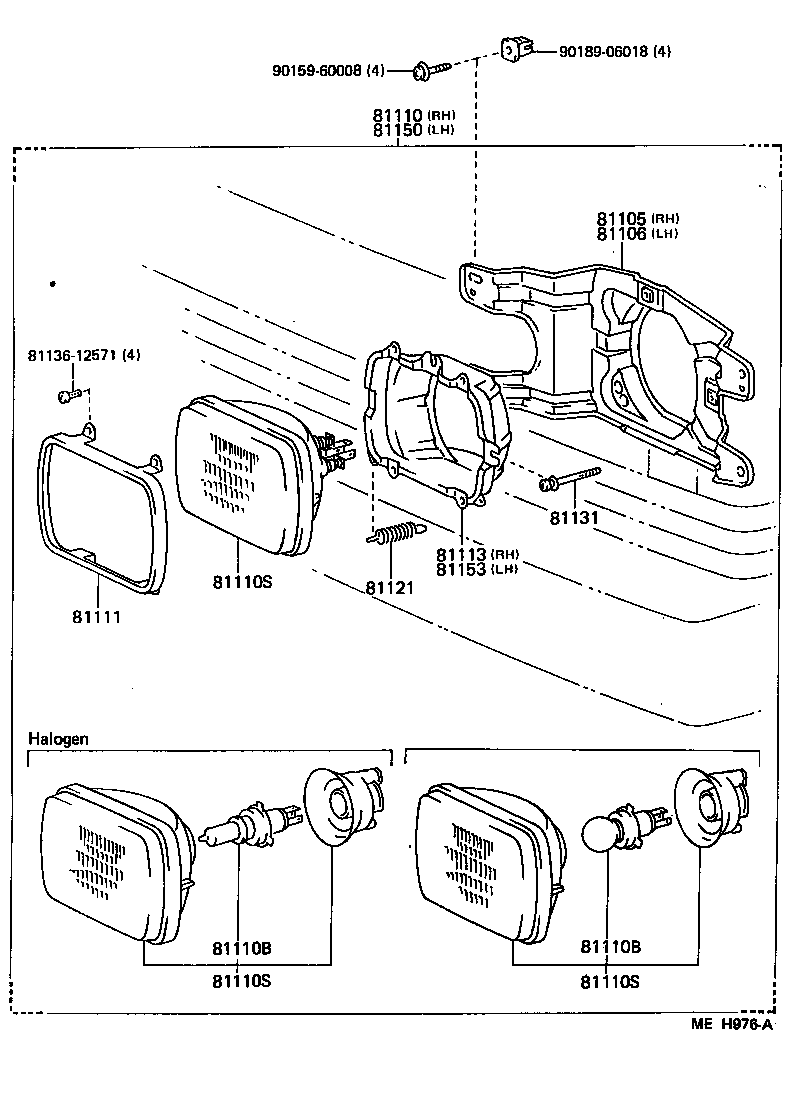

(8509- )CM35,KM3#,YM31,35,41

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81110B 81110S 81110S 81110S 81111 81113 81121 81131 8113612571 81150 81153 9015960008 9018906018
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-95728

CM3#,KM3#,YM31,35,41

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-95728

CM3#,KM3#,YM31,35,41

 1
81110 - HEADLAMP ASSY, RH
81110-95742

CM3#,KM36,YM31..RHD..GEN

 1
81110-95728

YM31

HALOGEN

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

KM37,YM31

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN,WHITE

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

KM37,YM31

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN,WHITE

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04029

CM3#,KM36,YM31..RHD..GEN

12V 65/55W,*WB,12V 65/55W

 2
90981-04027

YM31

12V 60/55W,*HWS,12V 60/55W,HALOGEN

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04029

CM3#,KM36,YM31..RHD..GEN

12V 65/55W,*WB,12V 65/55W

 2
90981-04027

YM31

12V 60/55W,*HWS,12V 60/55W,HALOGEN

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04029

CM3#,KM36,YM31..RHD..GEN

12V 65/55W,*WB,12V 65/55W

 2
90981-04027

YM31

12V 60/55W,*HWS,12V 60/55W,HALOGEN

 2
81111 - RING, SEALED BEAM RETAINING
81111-16020

CM3#,KM3#,YM31,35,41

 2
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-16220

CM3#,KM3#,YM31,35,41

 1
81121 - SPRING, HEADLAMP TENSION
81121-16020

CM3#,KM3#,YM31,35,41

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-10031

CM3#,KM3#,YM31,35,41

 4
81150 - HEADLAMP ASSY, LH
81150-95728

YM31

HALOGEN

 1
81150-95742

CM3#,KM36,YM31..RHD..GEN

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-16220

CM3#,KM3#,YM31,35,41

 1
Common parts
81136-12571
90159-60008
90189-06018

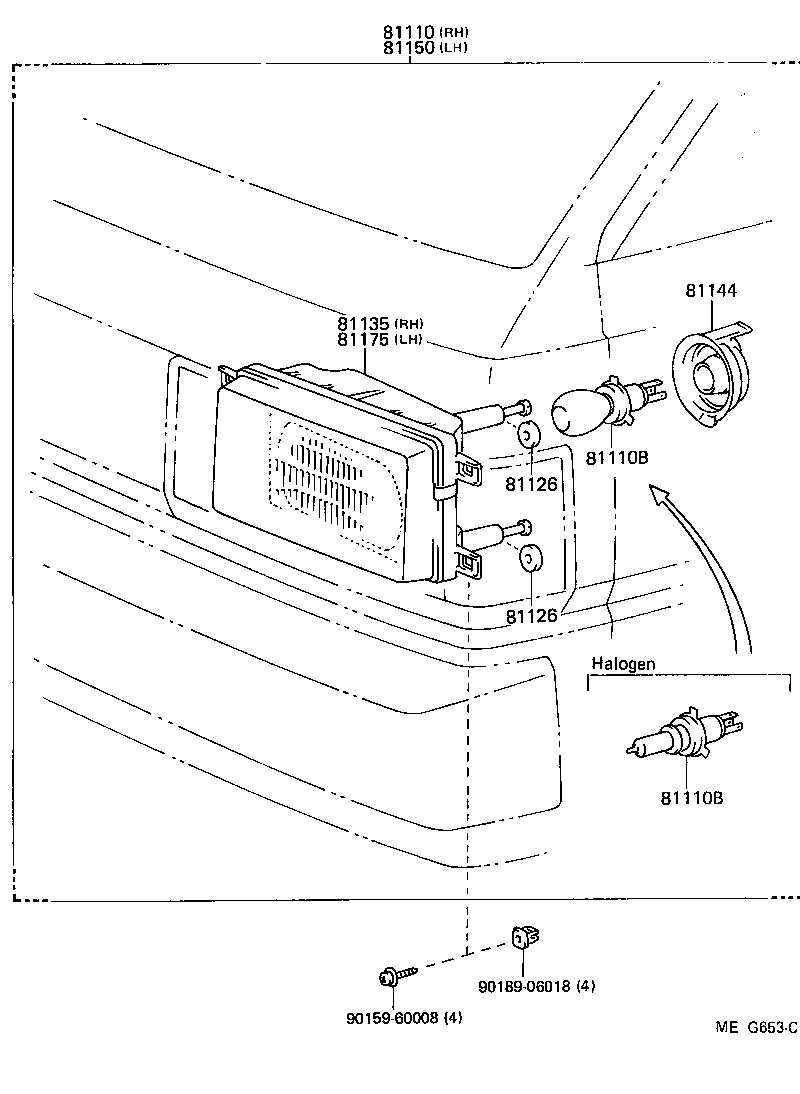

(8808-8910)KM36..4F ; (8808-8910)CM36..5F..GEN ;(8808- )YM30,31 ; (8910-9108)SR

Click highlighted areas on diagram

(8808-8910)MALASYIA FOR CKD

diagram 81110 81110B 81110B 81126 81126 81135 81144 81150 81175 9015960008 9018906018
Part # Description Qty Price
Common parts
90159-60008
90189-06018
