YM31RV-MR (1985)
Toyota Liteace
Production
Sep 1985
-
Aug 1988
Engine
2Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8509- )

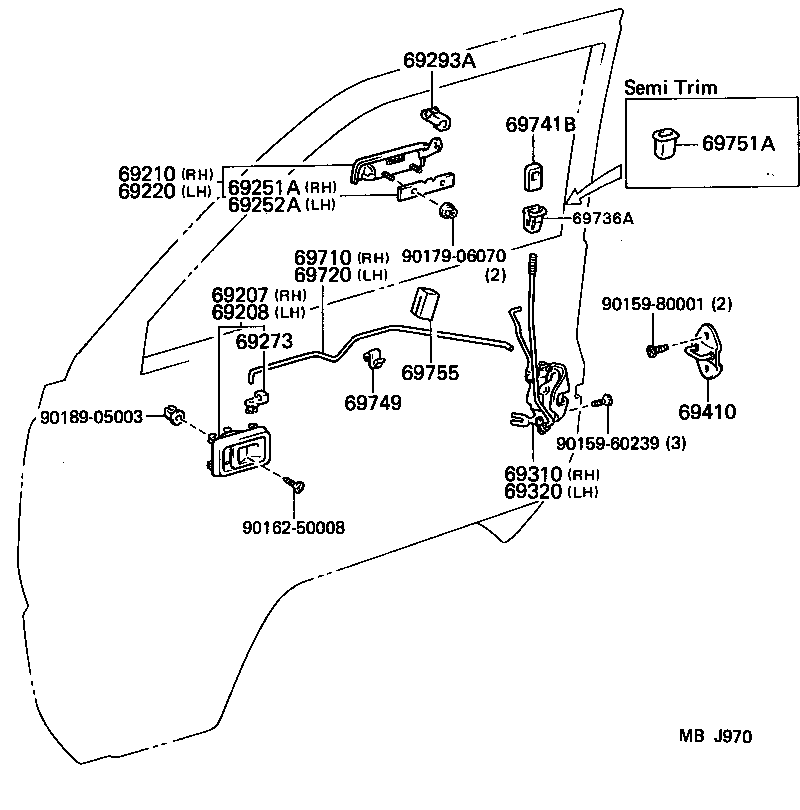

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-9570306 |
CM3#,KM3#,YM3#,4# BROWN,BROWN |
1 | ||
| 69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-9570306 |
CM3#,KM3#,YM3#,4# BROWN,BROWN |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-95701 |
CM3#,KM3#,YM3#,4# |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-95701 |
CM3#,KM3#,YM3#,4# |
1 | ||
| 69251A - PAD, FRONT DOOR OUTSIDE HANDLE, NO.1 RH | ||||
| 69238-95J00 |
CM3#,KM3#,YM3#,4# |
1 | ||
| 69252A - PAD, FRONT DOOR OUTSIDE HANDLE, NO.1 LH | ||||
| 69238-95J00 |
CM3#,KM3#,YM3#,4# |
1 | ||
| 69273 - SNAP, DOOR INSIDE HANDLE ROD | ||||
| 69759-14050 |
CM3#,KM3#,YM3#,4# RH |
1 | ||
| 69759-24070 |
CM3#,KM3#,YM3#,4# LH |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12030 |
CM3#,KM3#,YM3#,4# RH |
1 | ||
| 69293-12040 |
CM3#,KM3#,YM3#,4# LH |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-95706 |
CM3#,KM3#,YM3#,4# |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-95705 |
CM3#,KM3#,YM3#,4# |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-89103 |
CM3#,KM3#,YM3#,4# |
2 | ||
| 69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH | ||||
| 69711-95700 |
CM3#,KM3#,YM3#,4# |
1 | ||
| 69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH | ||||
| 69712-95700 |
CM3#,KM3#,YM3#,4# |
1 | ||
| 69736A - GUIDE, FRONT DOOR LOCK LINK | ||||
| 69736-12030 |
CM3#,KM3#,YM3#,4# |
2 | ||
| 69741B - KNOB, FRONT DOOR LOCK CONTROL | ||||
| 69741-90K0026 |
CM3#,KM3#,YM3#,4# BROWN,BROWN |
2 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-30020 |
CM3#,KM3#,YM3#,4# |
4 | ||
| 69751A - HOLDER, DOOR LOCKING(FOR FRONT DOOR) | ||||
| 69751-8910116 |
KM36..SRF;CM3#,KM37,YM31,35 BROWN,BROWN |
2 | ||
| 69751-1201006 |
CM3#,KM3#,YM3#,4# W/UPR TRIM,BROWN,BROWN |
2 | ||
| 69755 - SILENCER, FRONT DOOR LOCK LINK | ||||
| 69759-95500 |
CM3#,KM3#,YM3#,4# |
2 | ||
| Common parts | ||||
| 90159-60239 | ||||
| 90159-80001 | ||||
| 90162-50008 | ||||
| 90179-06070 | ||||
| 90189-05003 | ||||
