YM31RV-MR (1985)

Toyota Liteace

Production Sep 1985 - Aug 1988
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )

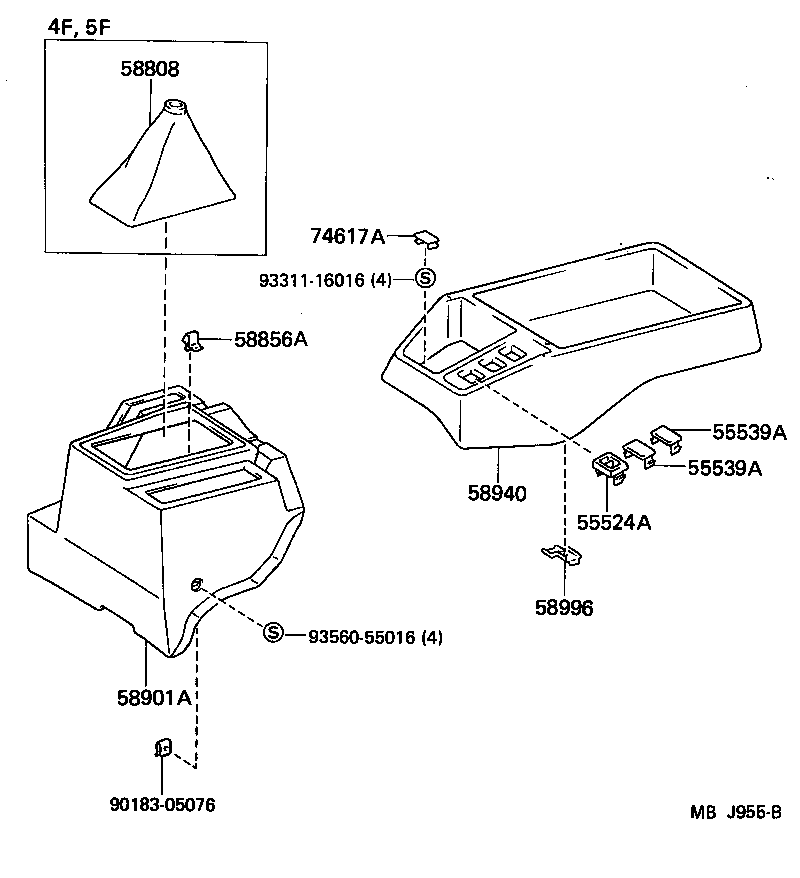

Click highlighted areas on diagram

diagram 55524A 55539A 55539A 58808 58856A 58901A 58940 58996 74617A 9018305076 9331116016 9356055016
Part # Description Qty Price
55524A - COVER, SWITCH BASE HOLE
55539-2002016

YM30,31,4#

BROWN,BROWN

 1
55539A - COVER, SPARE SWITCH HOLE
55539-2401006

YM30,31,4#

BROWN,BROWN

 2
55539A - COVER, SPARE SWITCH HOLE
55539-2401006

YM30,31,4#

BROWN,BROWN

 2
58808 - COVER SUB-ASSY, SHIFTING HOLE
58840-9570101

CM3#,KM36,YM3#,4#..RHD..(4F,5F)

BLACK,BLACK

 1
58856A - HOLDER, CONSOLE BOX
58856-95700

CM3#,KM36,YM3#,4#..RHD..(4F,5F)

 2
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-9570706

CM3#,KM36,YM31,35..RHD..(02S,05S)

BROWN,BROWN

 1
58940 - CONSOLE ASSY, REAR
58810-9570206

YM30,31,4#

BROWN,BROWN

 1
58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-95703

YM30,31,4#

 1
74617A - PLUG, ASSIST GRIP
74617-1601006

YM30,31,4#

BROWN,BROWN

 1
Common parts
90183-05076
93311-16016
93560-55016
