YM31RV-MR (1985)

Toyota Liteace

Production Sep 1985 - Aug 1988
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )2Y#,3YC

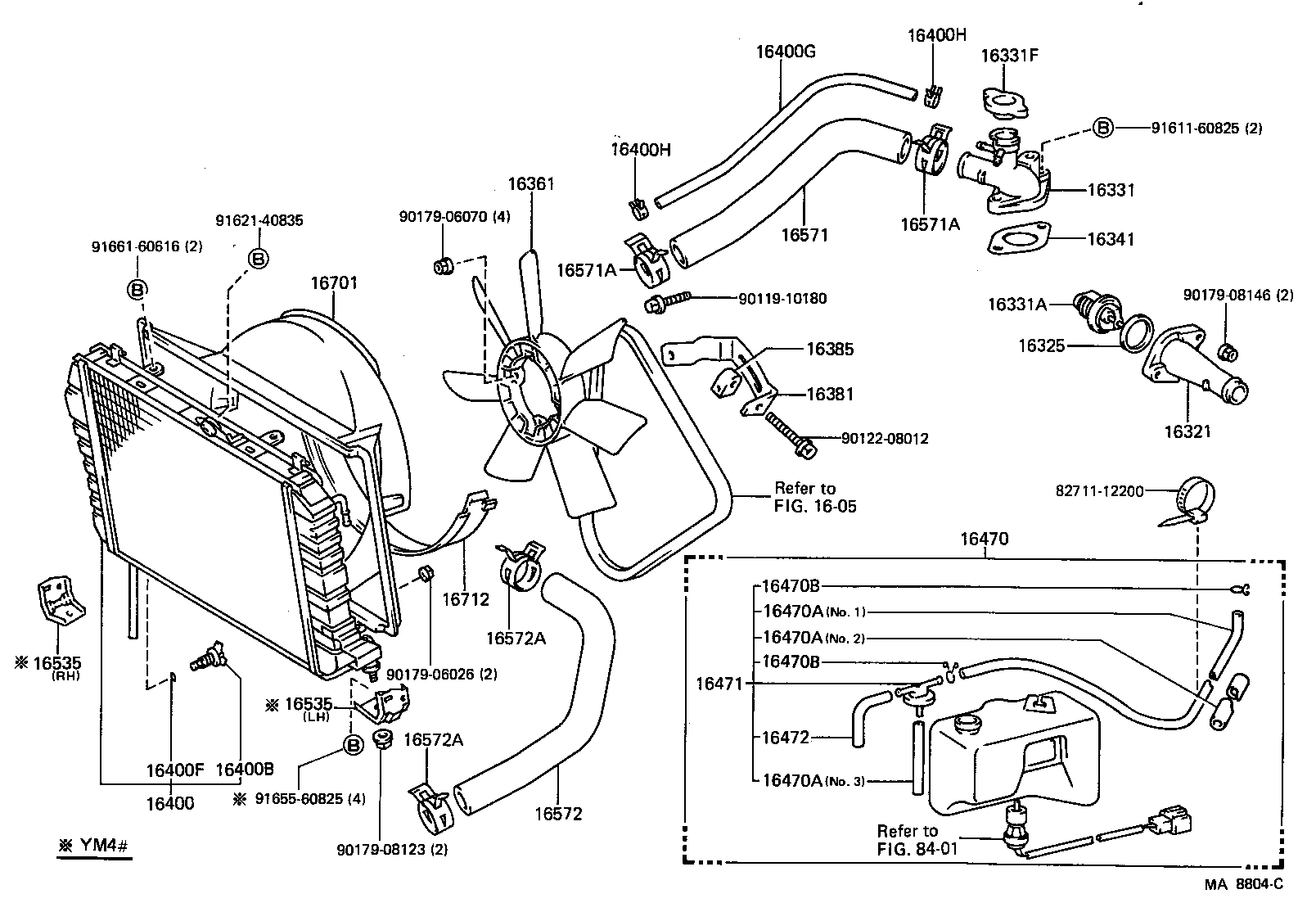

Click highlighted areas on diagram

diagram 1605 16321 16325 16331 16331A 16331F 16341 16361 16381 16385 16400 16400B 16400F 16400G 16400H 16400H 16470 16470A 16470A 16470A 16470B 16470B 16471 16472 16535 16535 16571 16571A 16571A 16572 16572A 16572A 16701 16712 8271112200 8401 9011910180 9012208012 9017906026 9017906070 9017908123 9017908146 9161160825 9162140835 9165560825 9166160616
Part # Description Qty Price
16321 - INLET, WATER
16321-71010

2Y#,3YC..YM3#,4#

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63010

2Y#,3YC..YM3#,4#

 1
16331 - OUTLET, WATER
16304-71010

2Y#,3YC..YM3#,4#

 1
16331A - THERMOSTAT
90916-03069

2Y#,3YC..YM3#,4#

*WAX 82-95

 1
16331F - CAP SUB-ASSY(FOR WATER OUTLET)
16401-15210

2Y#,3YC..YM3#,4#

 1
16341 - GASKET, WATER OUTLET
16341-71010

2Y#,3YC..YM3#,4#

 1
16361 - FAN
16361-38010

2Y#..YM3#

 1
16381 - BAR, FAN BELT ADJUSTING
16381-73011

2Y#,3YC..YM3#,4#

 1
16385 - SLIDER, FAN BELT ADJUSTING
16385-71010

2Y#,3YC..YM3#,4#

 1
16400 - RADIATOR ASSY
16400-72160

2Y#..YM3#..5F

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-24200

2Y#,3YC..YM3#,4#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-24200

2Y#,3YC..YM3#,4#

 1
16400G - HOSE(FOR RADIATOR BREATHER)
99555-10400

2Y#..YM3#

*H,L=400

 1
16400H - CLAMP OR CLIP(FOR RADIATOR BREATHER HOSE)
90467-13001

2Y#,3YC..YM3#,4#

 2
16400H - CLAMP OR CLIP(FOR RADIATOR BREATHER HOSE)
90467-13001

2Y#,3YC..YM3#,4#

 2
16470 - TANK ASSY, RADIATOR RESERVE
16470-73020

2Y..YM30,31

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
85338-73010

2Y#,3YC..YM3#,4#

NO,1

 1
85338-73030

2Y#,3YC..YM3#,4#

L=400,NO,2

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
85338-73010

2Y#,3YC..YM3#,4#

NO,1

 1
85338-73030

2Y#,3YC..YM3#,4#

L=400,NO,2

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
85338-73010

2Y#,3YC..YM3#,4#

NO,1

 1
85338-73030

2Y#,3YC..YM3#,4#

L=400,NO,2

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2Y#,3YC..YM3#,4#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2Y#,3YC..YM3#,4#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16471-73010

2Y#,3YC..YM3#,4#

 1
16472 - HOSE, BREATHER
85338-30010

2Y#,3YC..YM3#,4#

 1
16571 - HOSE, RADIATOR, INLET
16571-72050

2Y#..YM3#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

2Y#,3YC..YM3#,4#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

2Y#,3YC..YM3#,4#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-72050

2Y#..YM3#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37001

2Y#,3YC..YM3#,4#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37001

2Y#,3YC..YM3#,4#

 2
16701 - SHROUD SUB-ASSY, FAN
16711-72050

2Y#..YM3#

 1
16712 - SHROUD, FAN, NO.2
16712-72020

2Y#..YM3#

 1
Common parts
82711-12200
90119-10180
90122-08012
90179-06026
90179-06070
90179-08123
90179-08146
91611-60825
91621-40835
91655-60825
91661-60616
Linked diagrams
1605
8401
