YM30RG-PDSQ (1985)

Toyota Liteace

Production Sep 1985 - Aug 1988
Engine 2YC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )

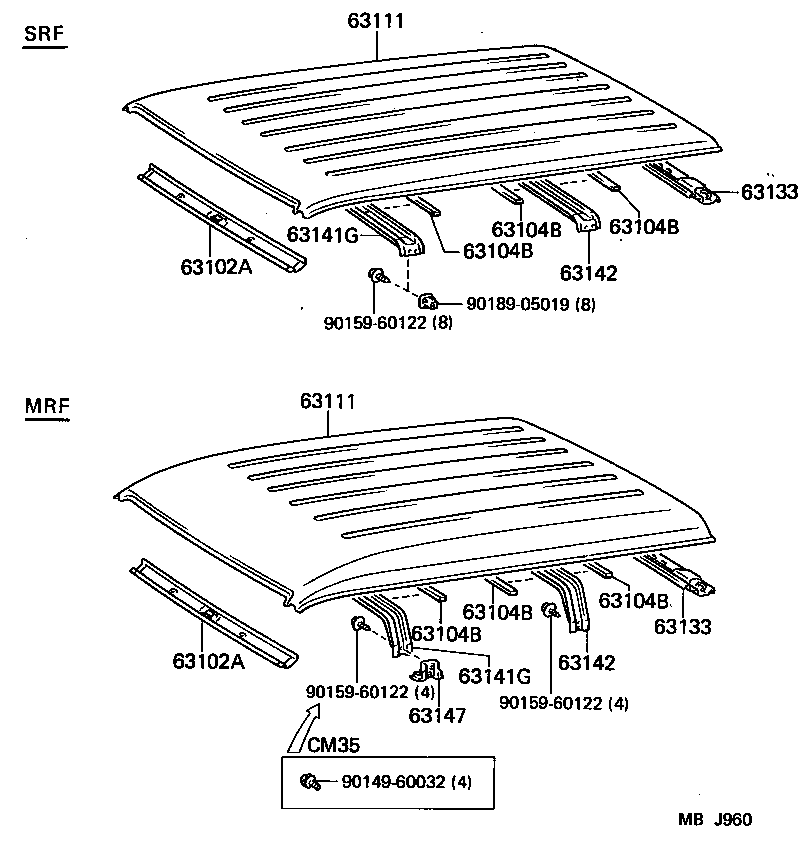

Click highlighted areas on diagram

diagram 63102A 63102A 63104B 63104B 63104B 63104B 63104B 63104B 63111 63111 63133 63133 63141G 63141G 63142 63142 63147 9014960032 9015960122 9015960122 9015960122 9018905019
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-95707

YM30,40

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-95707

YM30,40

 1
63111 - PANEL, ROOF
63111-95712

CM35,KM3#,YM30,35,4#..MRF

 1
63111 - PANEL, ROOF
63111-95712

CM35,KM3#,YM30,35,4#..MRF

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63071-95701

YM30,40

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63071-95701

YM30,40

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63103-95706

YM30,40

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63103-95706

YM30,40

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-95705

CM35,KM3#,YM30,35,4#..MRF

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-95705

CM35,KM3#,YM30,35,4#..MRF

 1
63147 - BRACKET, ROOF PANEL REINFORCEMENT
63148-95701

CM35,KM36,YM30,35,4#..MRF

LH

 1
Common parts
90149-60032
90159-60122
90189-05019
