YM30RG-PDSQ (1985)

Toyota Liteace

Production Sep 1985 - Aug 1988
Engine 2YC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

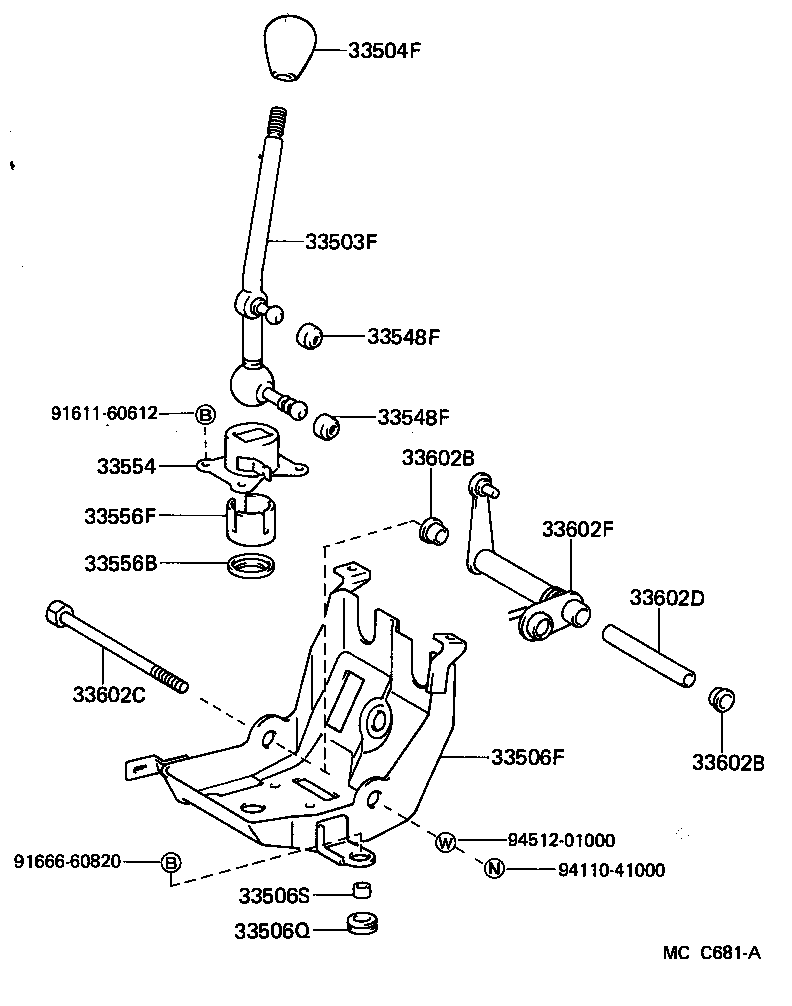

ILLUST NO. 1 OF 2(8509- )4F

Click highlighted areas on diagram

diagram 33503F 33504F 33506F 33506Q 33506S 33548F 33548F 33554 33556B 33556F 33602B 33602B 33602C 33602D 33602F 9161160612 9166660820 9411041000 9451201000
Part # Description Qty Price
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-27050

YM30,35..4FC

W/URETHANE STEERING WHEEL

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-3204014

YM30..4FC

W/URETHANE STRG WHEEL,BLUE,BLUE

 1
33542-3204016

YM30,35..4FC

W/URETHANE STRG WHEEL,BROWN,BROWN

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-27020

CM3#,KM36,YM3#,4#..4F,5F

 1
33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
90480-13012

CM3#,KM36,YM3#,4#..4F,5F

 3
33506S - COLLAR, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
90387-09011

CM3#,KM36,YM3#,4#..4F,5F

 3
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-12021

CM3#,KM36,YM3#,4#..4F,5F

 2
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-12021

CM3#,KM36,YM3#,4#..4F,5F

 2
33556B - BUSH (FOR TRANSMISSION SHIFT LEVER BALL SEAT)
90385-24001

CM3#,KM36,YM3#,4#..4F,5F

 1
33556F - SEAT, TRANSMISSION SHIFT LEVER BALL
33556-27020

CM3#,KM36,YM3#,4#..4F,5F

 1
33602B - BUSHING (FOR SELECT LEVER)
90386-13007

CM3#,KM36,YM3#,4#..4F,5F

 2
33602B - BUSHING (FOR SELECT LEVER)
90386-13007

CM3#,KM36,YM3#,4#..4F,5F

 2
33602C - BOLT (FOR SELECT LEVER)
90101-10191

CM3#,KM36,YM3#,4#..4F,5F

 1
33602D - COLLAR (FOR SELECT LEVER)
90387-10083

CM3#,KM36,YM3#,4#..4F,5F

 1
Common parts
91611-60612
91666-60820
94110-41000
94512-01000

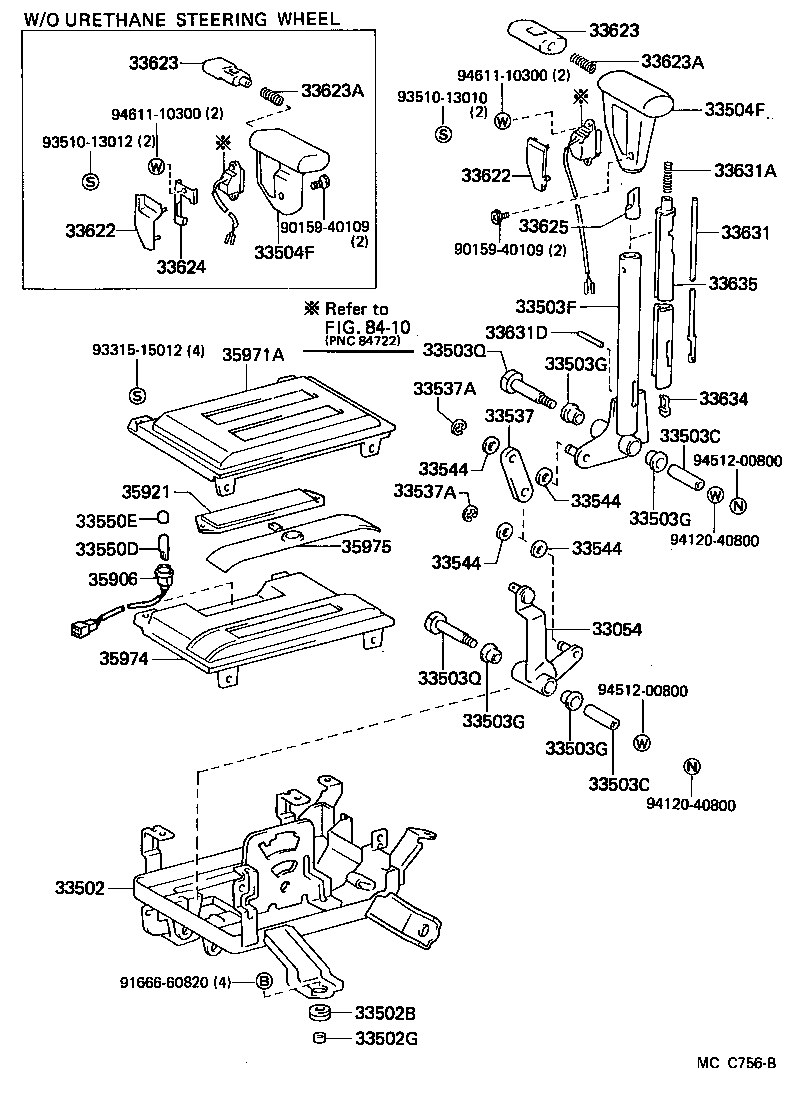

ILLUST NO. 1 OF 2(8509- )4FC

Click highlighted areas on diagram

diagram 33054 33502 33502B 33502G 33503C 33503C 33503F 33503G 33503G 33503G 33503G 33503Q 33503Q 33504F 33504F 33537 33537A 33537A 33544 33544 33544 33544 33550D 33550E 33622 33622 33623 33623 33623A 33623A 33624 33625 33631 33631A 33631D 33634 33635 35906 35921 35971A 35974 35975 8410 9015940109 9015940109 9166660820 9331515012 9351013010 9351013012 9412040800 9412040800 9451200800 9451200800 9461110300 9461110300
Part # Description Qty Price
33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT)
33503-27060

YM30,35..4FC

 1
33502 - PLATE SUB-ASSY, SHIFT LEVER
33502-27020

YM30,35..4FC

 1
33502B - GROMMET (FOR SHIFT LEVER PLATE)
90480-13012

YM30,35..4FC

 4
33502G - COLLAR (FOR SHIFT LEVER PLATE)
90387-09011

YM30,35..4FC

 4
33503C - COLLAR(FOR SHIFT LEVER SUB-ASSY)
90387-08068

YM30,35..4FC

 2
33503C - COLLAR(FOR SHIFT LEVER SUB-ASSY)
90387-08068

YM30,35..4FC

 2
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-27050

YM30,35..4FC

W/URETHANE STEERING WHEEL

 1
33503G - BUSH(FOR SHIFT LEVER)
90385-11003

YM30,35..4FC

L=11

 2
90385-11006

YM30,35..4FC

L=10

 2
33503G - BUSH(FOR SHIFT LEVER)
90385-11003

YM30,35..4FC

L=11

 2
90385-11006

YM30,35..4FC

L=10

 2
33503G - BUSH(FOR SHIFT LEVER)
90385-11003

YM30,35..4FC

L=11

 2
90385-11006

YM30,35..4FC

L=10

 2
33503G - BUSH(FOR SHIFT LEVER)
90385-11003

YM30,35..4FC

L=11

 2
90385-11006

YM30,35..4FC

L=10

 2
33503Q - BOLT(FOR SHIFT LEVER SUB-ASSY)
90101-08108

YM30,35..4FC

 2
33503Q - BOLT(FOR SHIFT LEVER SUB-ASSY)
90101-08108

YM30,35..4FC

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-3204014

YM30..4FC

W/URETHANE STRG WHEEL,BLUE,BLUE

 1
33542-3204016

YM30,35..4FC

W/URETHANE STRG WHEEL,BROWN,BROWN

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-3204014

YM30..4FC

W/URETHANE STRG WHEEL,BLUE,BLUE

 1
33542-3204016

YM30,35..4FC

W/URETHANE STRG WHEEL,BROWN,BROWN

 1
33537 - PLATE, CONTROL LEVER
33537-27010

YM30,35..4FC

 1
33537A - RING, E (FOR CONTROL LEVER PLATE)
90523-06019

YM30,35..4FC

 2
33537A - RING, E (FOR CONTROL LEVER PLATE)
90523-06019

YM30,35..4FC

 2
33544 - INSERT, SHIFT LEVER, NO.1
33544-27010

YM30,35..4FC

 4
33544 - INSERT, SHIFT LEVER, NO.1
33544-27010

YM30,35..4FC

 4
33544 - INSERT, SHIFT LEVER, NO.1
33544-27010

YM30,35..4FC

 4
33544 - INSERT, SHIFT LEVER, NO.1
33544-27010

YM30,35..4FC

 4
33550D - BULB, POSITION INDICATOR LAMP
99132-12034

YM30,35..4FC

12V 3.4W,12V 3.4W

 1
33550E - CAP, POSITION INDICATOR LAMP
90339-09001

YM30,35..4FC

 1
33622 - COVER, SHIFT LEVER KNOB, NO.1
33622-1601014

YM30..4FC

W/URETHANE STRG WHEEL,BLUE,BLUE

 1
33622-1601026

YM30,35..4FC

W/URETHANE STRG WHEEL,BROWN,BROWN

 1
33622 - COVER, SHIFT LEVER KNOB, NO.1
33622-1601014

YM30..4FC

W/URETHANE STRG WHEEL,BLUE,BLUE

 1
33622-1601026

YM30,35..4FC

W/URETHANE STRG WHEEL,BROWN,BROWN

 1
33623 - BUTTON, SHIFT LEVER KNOB
33623-1602014

YM30..4FC

W/URETHANE STRG WHEEL,BLUE,BLUE

 1
33623-1602016

YM30,35..4FC

W/URETHANE STRG WHEEL,BROWN,BROWN

 1
33623 - BUTTON, SHIFT LEVER KNOB
33623-1602014

YM30..4FC

W/URETHANE STRG WHEEL,BLUE,BLUE

 1
33623-1602016

YM30,35..4FC

W/URETHANE STRG WHEEL,BROWN,BROWN

 1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-07009

YM30,35..4FC

 1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-07009

YM30,35..4FC

 1
33625 - SLEEVE, SHIFT LEVER KNOB
33625-32010

YM30,35..4FC

 1
33631 - ROD, DETENT
33631-27020

YM30,35..4FC

 1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-07005

YM30,35..4FC

W/URETHANE STEERING WHEEL

 1
33631D - PIN, GROOVED (FOR DETENT ROD)
90256-04003

YM30,35..4FC

 1
33634 - PROTECTOR, WIRE
33634-27010

YM30,35..4FC

 1
33635 - GUIDE, WIRE (FOR SHIFT LEVER)
33635-27010

YM30,35..4FC

W/URETHANE STEERING WHEEL

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-32010

YM30,35..4FC

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-27010

YM30,35..4FC

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-27010

YM30,35..4FC

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-27010

YM30,35..4FC

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-27010

YM30,35..4FC

 1
Common parts
90159-40109
91666-60820
93315-15012
93510-13010
93510-13012
94120-40800
94512-00800
94611-10300
Linked diagrams
8410

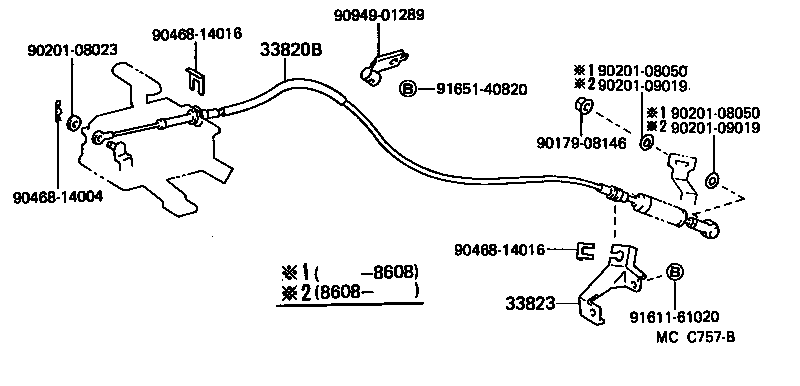

ILLUST NO. 2 OF 2(8509- )4FC

Click highlighted areas on diagram

diagram 33820B 33823 9017908146 9020108023 9020108050 9020108050 9020109019 9020109019 9046814004 9046814016 9046814016 9094901289 9161161020 9165140820
Part # Description Qty Price
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-27020

YM30,35..4FC

 1
33820-27021

YM30,35..4FC

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-27030

YM30,35..4FC

 1
33823-27160

YM30,35..4FC

 1
Common parts
90179-08146
90201-08023
90201-08050
90201-09019
90468-14004
90468-14016
90949-01289
91611-61020
91651-40820

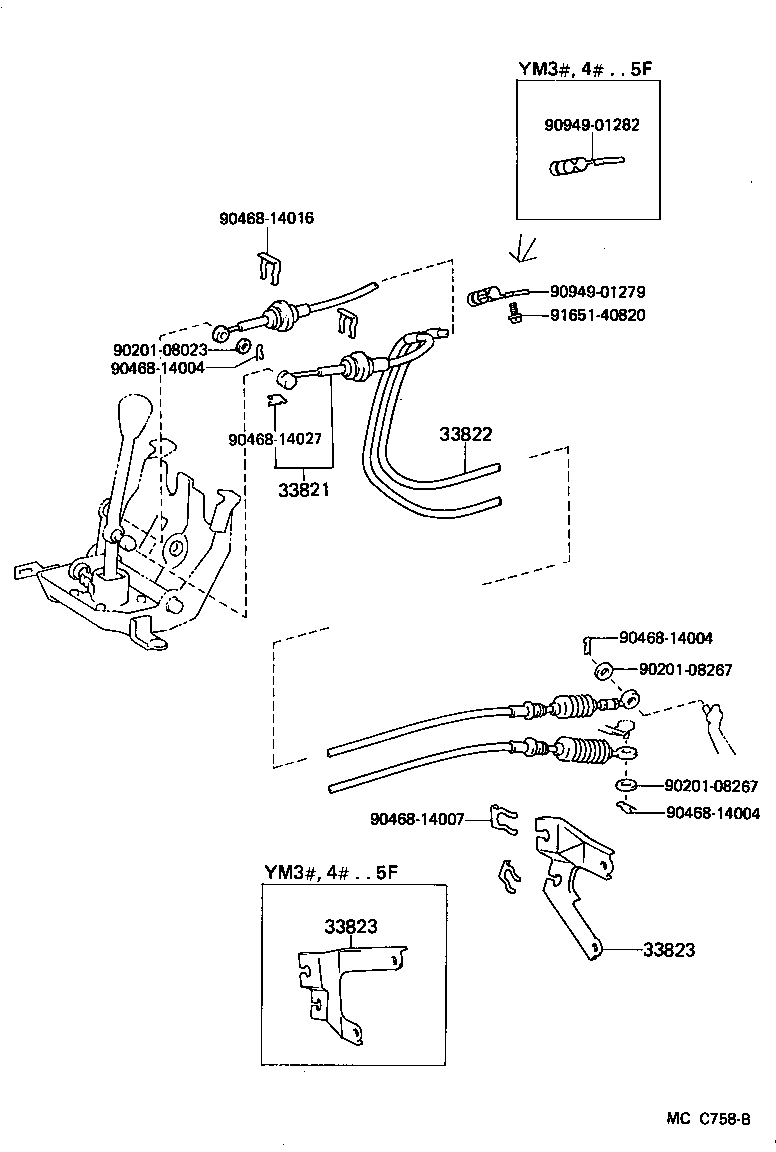

ILLUST NO. 2 OF 2(8509- )KM36,YM3#,4#..4F,5F

Click highlighted areas on diagram

diagram 33821 33822 33823 33823 9020108023 9020108267 9020108267 9046814004 9046814004 9046814004 9046814007 9046814016 9046814027 9094901279 9094901282 9165140820
Part # Description Qty Price
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-27030

YM30,35..4FC

 1
33823-27160

YM30,35..4FC

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-27030

YM30,35..4FC

 1
33823-27160

YM30,35..4FC

 1
Common parts
90201-08023
90201-08267
90468-14004
90468-14007
90468-14016
90468-14027
90949-01279
90949-01282
91651-40820

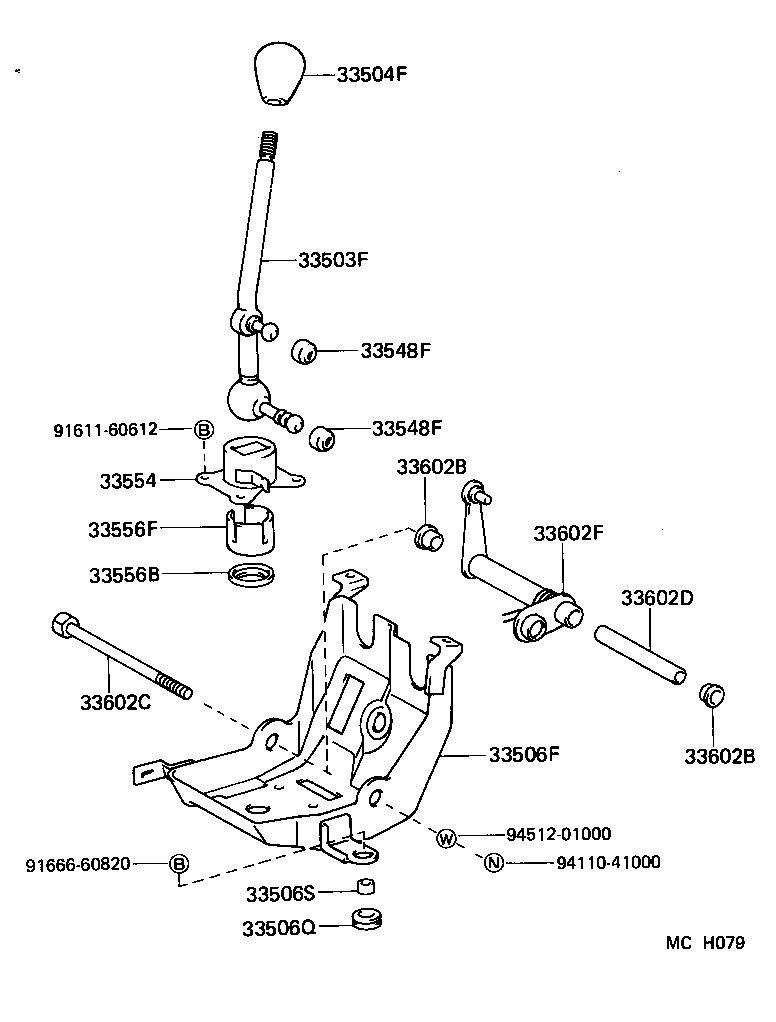

(8808-9201)4F

Click highlighted areas on diagram

diagram 33503F 33504F 33506F 33506Q 33506S 33548F 33548F 33554 33556B 33556F 33602B 33602B 33602C 33602D 33602F 9161160612 9166660820 9411041000 9451201000
Part # Description Qty Price
Common parts
91611-60612
91666-60820
94110-41000
94512-01000

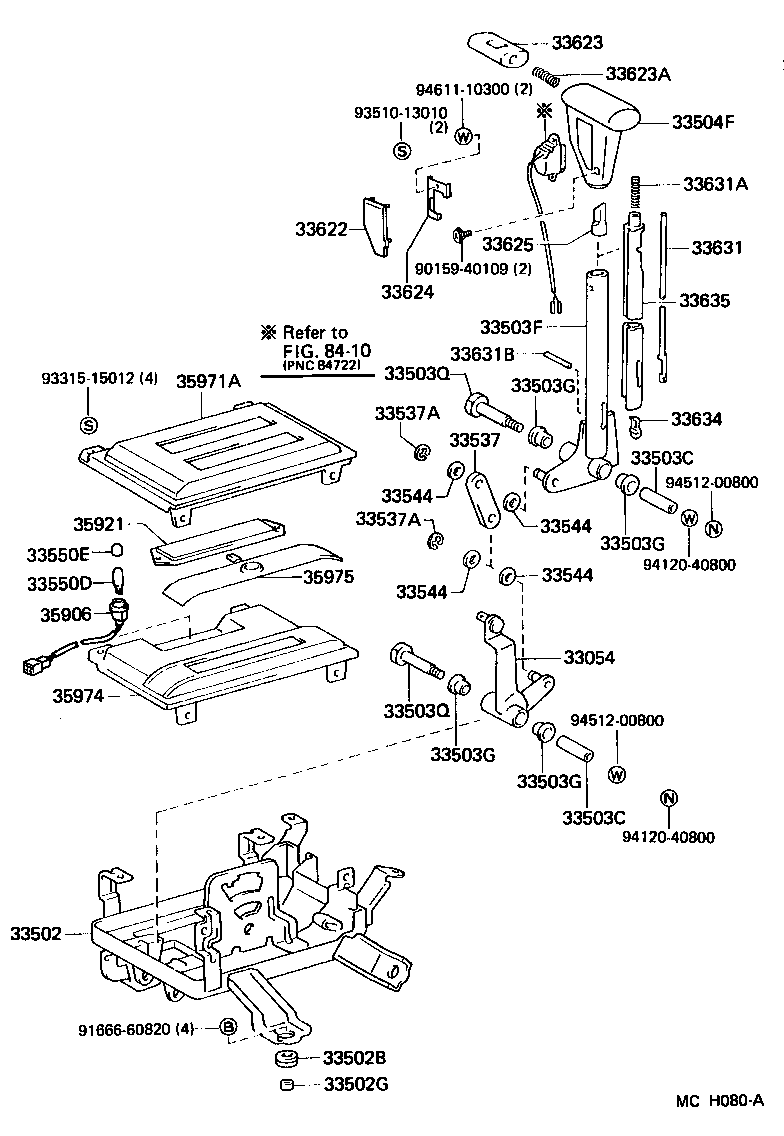

(8808-9201)4FC

Click highlighted areas on diagram

diagram 33054 33502 33502B 33502G 33503C 33503C 33503F 33503G 33503G 33503G 33503G 33503Q 33503Q 33504F 33537 33537A 33537A 33544 33544 33544 33544 33550D 33550E 33622 33623 33623A 33624 33625 33631 33631A 33631B 33634 33635 35906 35921 35971A 35974 35975 8410 9015940109 9166660820 9331515012 9351013010 9412040800 9412040800 9451200800 9451200800 9461110300
Part # Description Qty Price
Common parts
90159-40109
91666-60820
93315-15012
93510-13010
94120-40800
94512-00800
94611-10300
Linked diagrams
8410

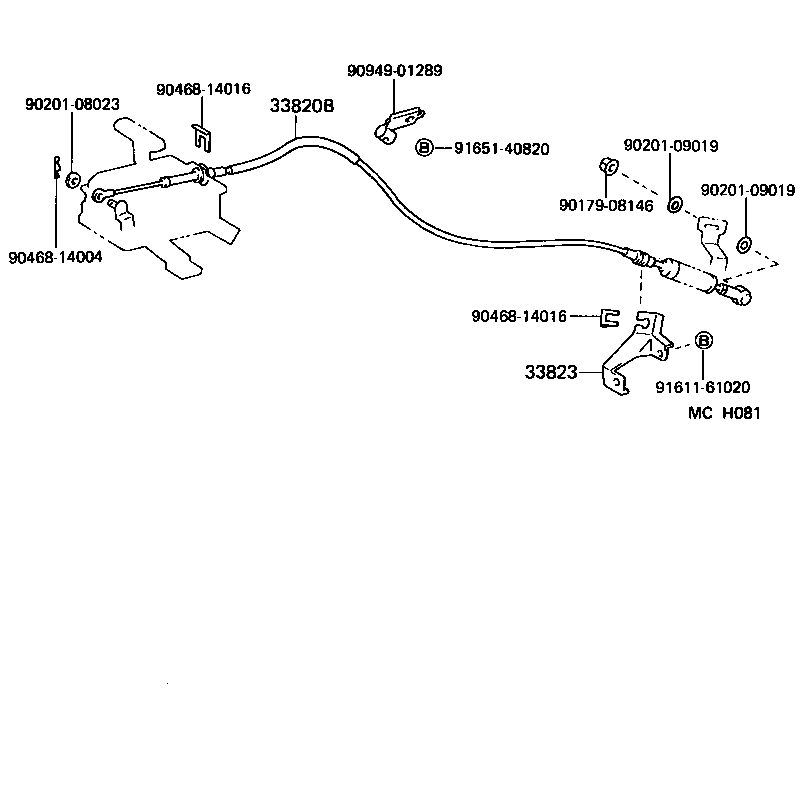

(8808-9201)4FC

Click highlighted areas on diagram

diagram 33820B 33823 9017908146 9020108023 9020109019 9020109019 9046814004 9046814016 9046814016 9094901289 9161161020 9165140820
Part # Description Qty Price
Common parts
90179-08146
90201-08023
90201-09019
90468-14004
90468-14016
90949-01289
91611-61020
91651-40820
