YM30RG-PDSQ (1985)
Toyota Liteace
(8509- )2Y#,3YC

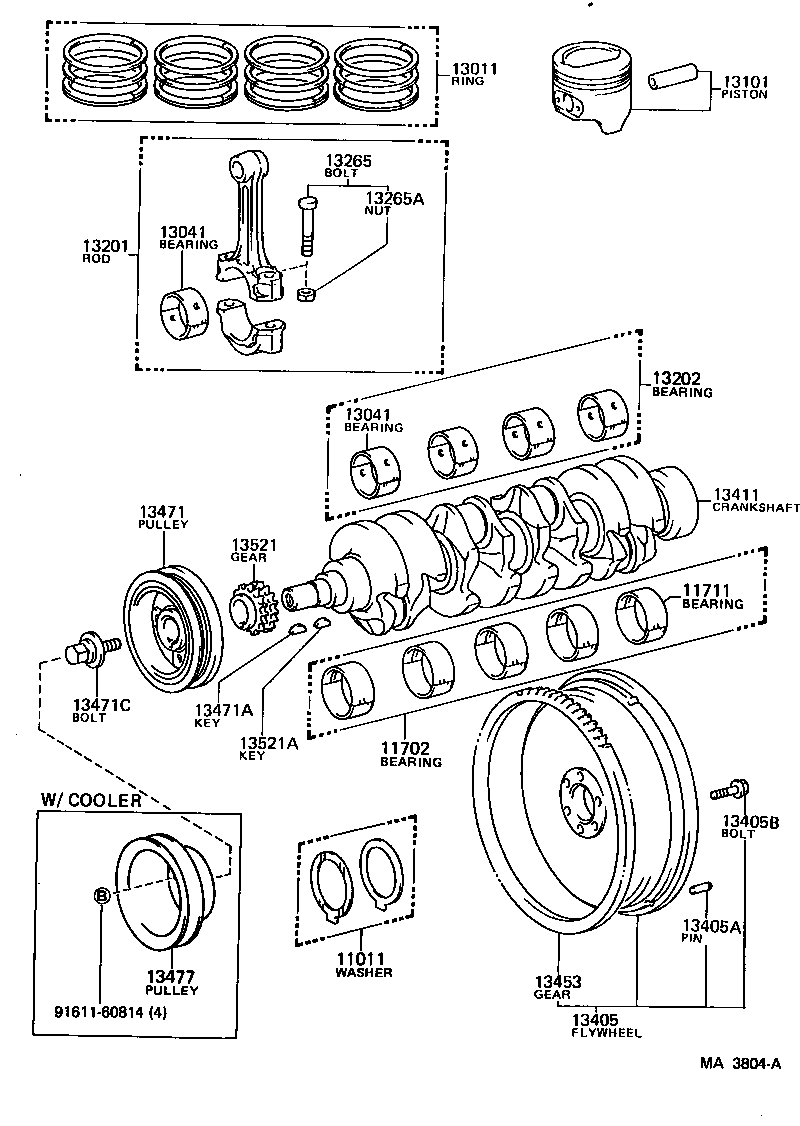

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-25010 |
2Y#,3YC..YM3#,4# STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-71020 |
2Y#,3YC..YM3#,4# U/S 0.25,U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7102003 |
2Y#,3YC..YM3#,4# MARK"3",MARK 3 |
5 | ||
| 11701-7102001 |
2Y#,3YC..YM3#,4# MARK"1",MARK 1 |
5 | ||
| 11701-7102002 |
2Y#,3YC..YM3#,4# MARK"2",MARK 2 |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-71020 |
2YC,3YC..YM30,4# STD,STD |
1 | ||
| 13013-71030 |
2YC..YM35;2Y..YM30,31 O/S 0.50,O/S 0.50 |
1 | ||
| 13014-71020 |
2YC,3YC..YM30,4# O/S 0.75,O/S 0.75 |
1 | ||
| 13013-71020 |
2YC,3YC..YM30,4# O/S 0.50,O/S 0.50 |
1 | ||
| 13011-71030 |
2YC..YM35;2Y..YM30,31 STD,STD |
1 | ||
| 13015-71030 |
2YC..YM35;2Y..YM30,31 O/S 1.00,O/S 1.00 |
1 | ||
| 13011-71031 |
2Y..YM30;2YC..YM35 STD,STD |
1 | ||
| 13011-71021 |
2YC,3YC..YM30,4# STD,STD |
1 | ||
| 13013-71031 |
2Y..YM30;2YC..YM35 O/S 0.50,O/S 0.50 |
1 | ||
| 13014-71030 |
2YC..YM35;2Y..YM30,31 O/S 0.75 |
1 | ||
| 13013-71021 |
2YC,3YC..YM30,4# O/S 0.50,O/S 0.50 |
1 | ||
| 13014-71031 |
2Y..YM30;2YC..YM35 O/S 0.75,O/S 0.75 |
1 | ||
| 13015-71031 |
2Y..YM30;2YC..YM35 O/S 1.00,O/S 1.00 |
1 | ||
| 13014-71021 |
2YC,3YC..YM30,4# O/S 0.75,O/S 0.75 |
1 | ||
| 13015-71020 |
2YC,3YC..YM30,4# O/S 1.00,O/S 1.00 |
1 | ||
| 13011-71021 |
2YC,3YC..YM30,35,40 STD,STD |
1 | ||
| 13015-71021 |
2YC,3YC..YM30,4# O/S 1.00,O/S 1.00 |
1 | ||
| 13014-71031 |
2Y..YM30 O/S 0.75,O/S 0.75 |
1 | ||
| 13014-71021 |
2YC,3YC..YM30,35,40 O/S 0.75,O/S 0.75 |
1 | ||
| 13015-71021 |
2YC,3YC..YM30,35,40 O/S 1.00,O/S 1.00 |
1 | ||
| 13013-71031 |
2Y..YM30 O/S 0.50,O/S 0.50 |
1 | ||
| 13011-71031 |
2Y..YM30 STD,STD |
1 | ||
| 13015-71031 |
2Y..YM30 O/S 1.00,O/S 1.00 |
1 | ||
| 13013-71021 |
2YC,3YC..YM30,35,40 O/S 0.50,O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7102106 |
2Y#,3YC..YM3#,4# MARK"6",MARK 6 |
4 | ||
| 13041-7102107 |
2Y#,3YC..YM3#,4# MARK"7",MARK 7 |
4 | ||
| 13041-7102108 |
2Y#,3YC..YM3#,4# MARK"8",MARK 8 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7102106 |
2Y#,3YC..YM3#,4# MARK"6",MARK 6 |
4 | ||
| 13041-7102107 |
2Y#,3YC..YM3#,4# MARK"7",MARK 7 |
4 | ||
| 13041-7102108 |
2Y#,3YC..YM3#,4# MARK"8",MARK 8 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13103-72010 |
2Y#..YM3# O/S 0.50,O/S 0.50 |
4 | ||
| 13104-72010 |
2Y#..YM3# O/S 0.75,O/S 0.75 |
4 | ||
| 13101-72010 |
2Y#..YM3# STD,STD |
4 | ||
| 13105-72010 |
2Y#..YM3# O/S 1.00,O/S 1.00 |
4 | ||
| 13101-7201002 |
2Y#..YM30,35 STD,STD,MARK"2",MARK 2 |
4 | ||
| 13101-7201001 |
2Y#..YM30,35 STD,STD,MARK"1",MARK 1 |
4 | ||
| 13101-7201003 |
2Y#..YM30,35 STD,STD,MARK"3",MARK 3 |
4 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-71011 |
2Y#..YM3# |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-71021 |
2Y#,3YC..YM3#,4# U/S 0.25,U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-29025 |
2Y#,3YC..YM3#,4# |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-09001 |
2Y#,3YC..YM3#,4# |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-72010 |
2Y#..YM3# |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-73010 |
2Y#,3YC..YM3#,4# |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05010 |
2Y#,3YC..YM3#,4# |
1 | ||
| 95161-10519 |
2Y#,3YC..YM30,35,4# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-14013 |
2Y#,3YC..YM3#,4# |
1 | ||
| 13477 - PULLEY, CRANKSHAFT, NO.2 | ||||
| 88451-28010 |
2Y#,3YC..YM30,40 W/COOLER |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-33010 |
2Y#,3YC..YM3#,4# |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
2Y#,3YC..YM3#,4# |
1 | ||
| 95161-10519 |
2Y#,3YC..YM30,35,4# |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
