YM30RG-MDSQ (1988)
Toyota Liteace
Production
Aug 1988
-
Jan 1992
Engine
2YC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )MTM

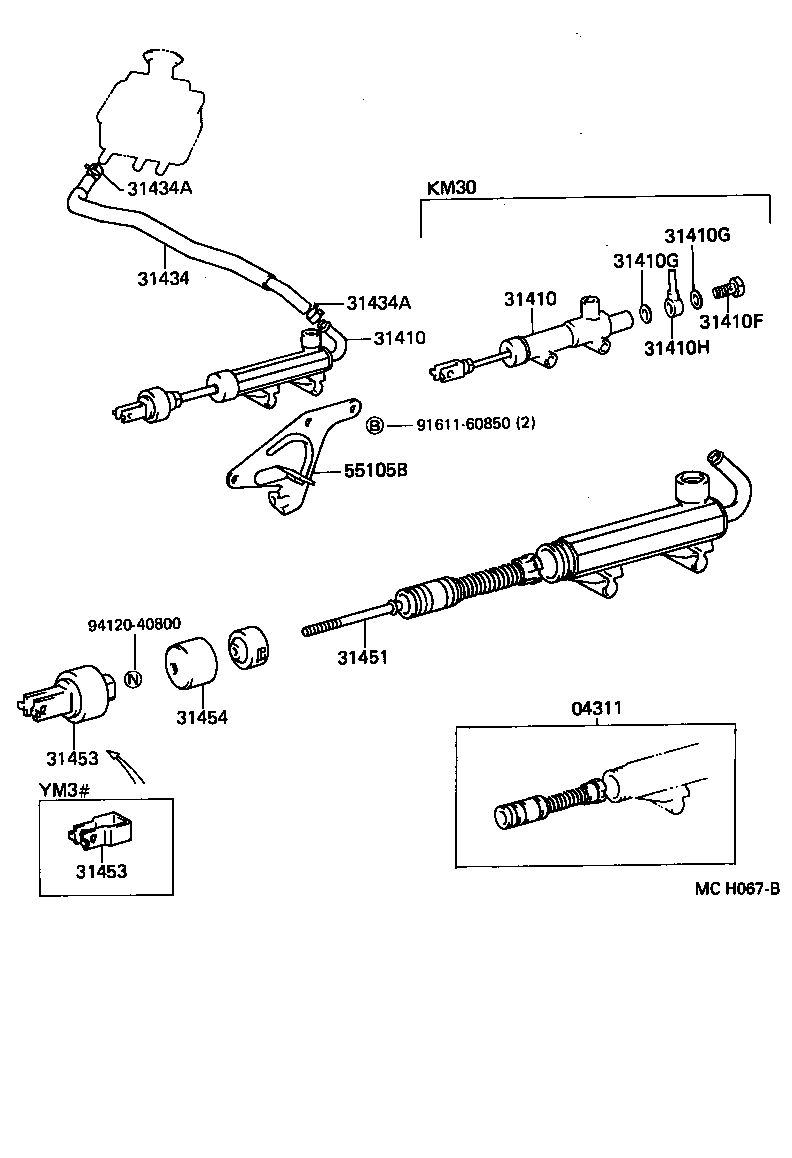

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-27010 |
KM36..5F;CM36,YM3#..MTM |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31420-27072 |
CM36,YM3#..RHD..MTM |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31420-27072 |
CM36,YM3#..RHD..MTM |
1 | ||
| 31434 - TUBE, CLUTCH RESERVOIR | ||||
| 31434-27040 |
KM36..5F;CM36,YM3#..RHD..MTM |
1 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96132-30800 |
KM36..5F;CM36,KM30,YM3#..MTM |
2 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96132-30800 |
KM36..5F;CM36,KM30,YM3#..MTM |
2 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-27020 |
CM36,YM3#..MTM |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-27010 |
CM36,YM3#..MTM |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-27010 |
CM36,YM3#..MTM |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-27010 |
KM36..5F;CM36,YM3#..MTM |
1 | ||
| 55105B - SUPPORT SUB-ASSY, CLUTCH MASTER CYLINDER | ||||
| 55105-95707 |
KM36..5F;CM36,YM3#..RHD..MTM |
1 | ||
| Common parts | ||||
| 91611-60850 | ||||
| 94120-40800 | ||||
