YM30RG-MDSQ (1985)
Toyota Liteace
Production
Sep 1985
-
Aug 1988
Engine
2YC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8509- )
Click highlighted areas on diagram

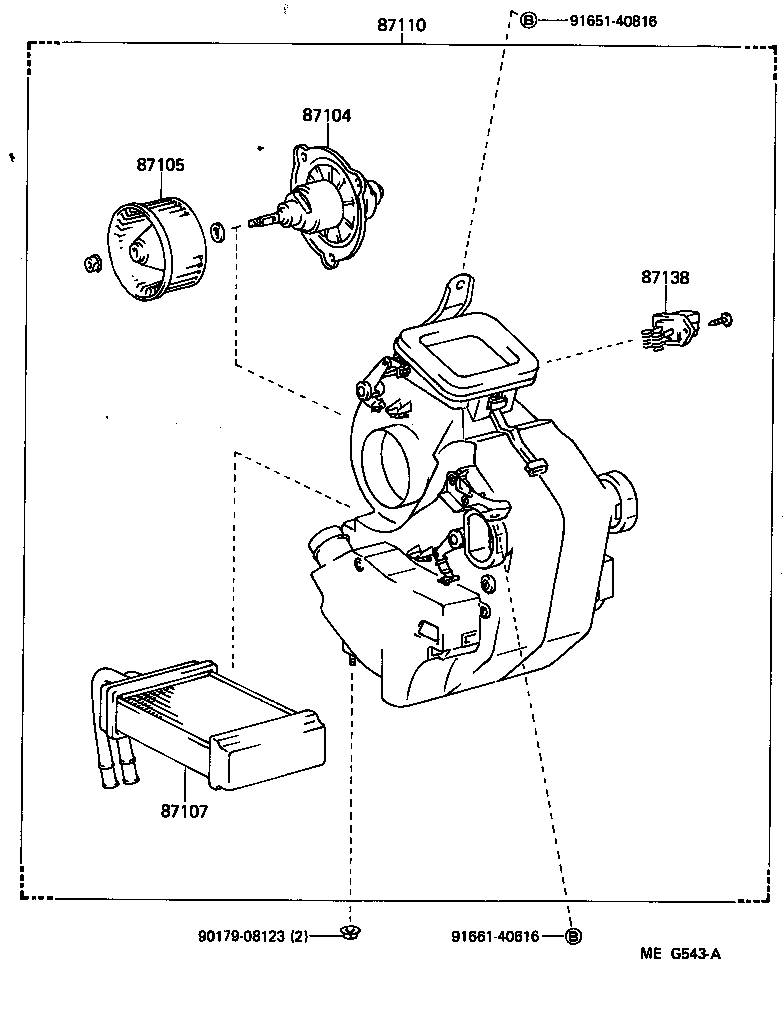

HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-95705 |
CM3#,KM36,YM3#,4#..RHD |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-16020 |
CM3#,KM36,YM3#,4#..RHD |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-95705 |
KM36,YM30,35,4#..ARL |
1 | ||
| 87110 - HEATER ASSY | ||||
| 87110-95715 |
KM36,YM30,35,4#..ARL |
1 | ||
| 87110-95738 |
KM36,YM30,35,4#..ARL |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-95707 |
CM3#,KM36,YM3#,4#..RHD |
1 | ||
| Common parts | ||||
| 90179-08123 | ||||
| 91651-40816 | ||||
| 91661-40616 | ||||
(8509- )

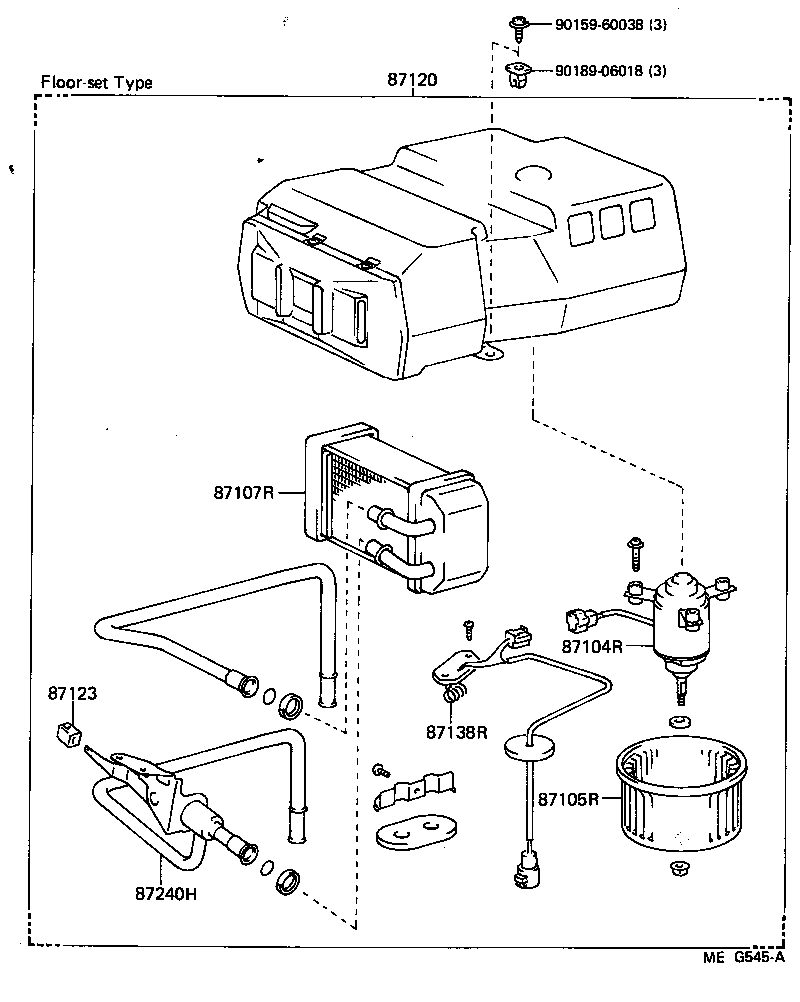

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER | ||||
| 87104-87003 |
KM36,YM30,4#..MRF..ARL |
1 | ||
| 87105R - FAN SUB-ASSY, REAR HEATER BLOWER | ||||
| 87105-87002 |
KM36,YM30,4#..MRF..ARL |
1 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-95709 |
YM30,40..ARL |
1 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-95725 |
YM30,40..ARL |
1 | ||
| 87123 - KNOB, HEATER | ||||
| 55905-12070 |
KM36,YM30,4#..MRF..ARL |
1 | ||
| 87138R - RESISTOR, REAR HEATER BLOWER | ||||
| 87138-95706 |
YM30,40..ARL |
1 | ||
| 87240H - VALVE ASSY, WATER UNIT | ||||
| 87240-95709 |
YM30,40..ARL |
1 | ||
| Common parts | ||||
| 90159-60038 | ||||
| 90189-06018 | ||||
(8509- )

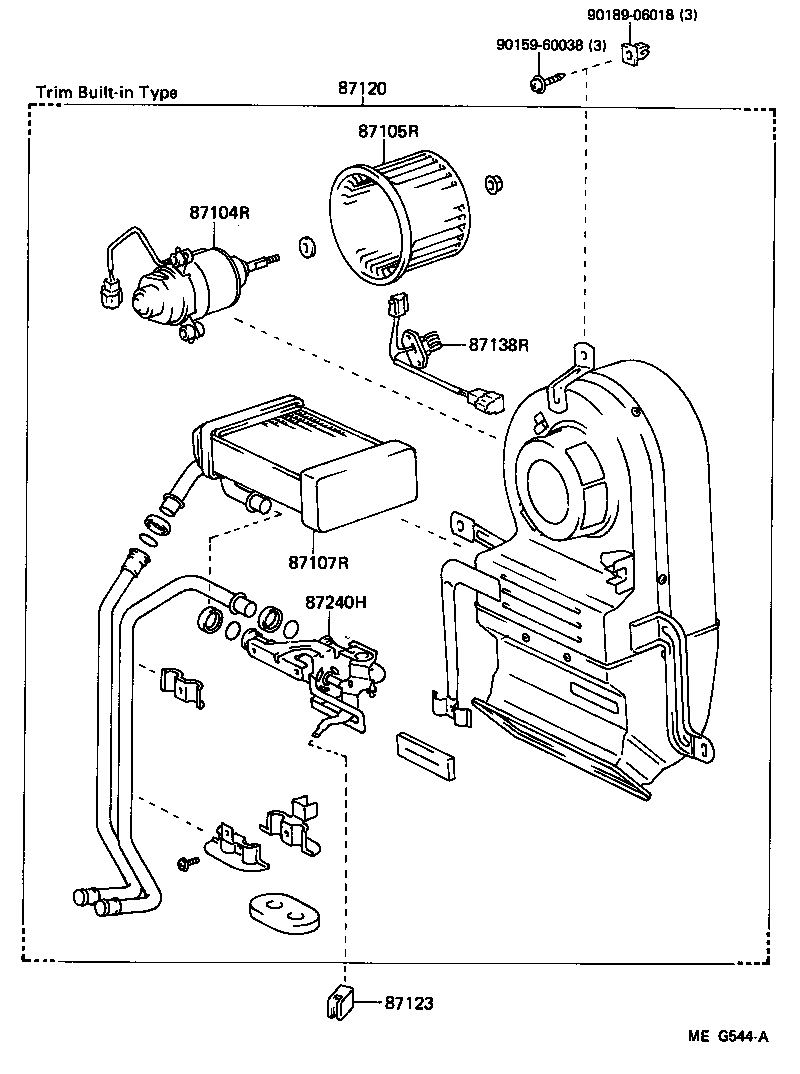

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER | ||||
| 87104-87003 |
KM36,YM30,4#..MRF..ARL |
1 | ||
| 87105R - FAN SUB-ASSY, REAR HEATER BLOWER | ||||
| 87105-87002 |
KM36,YM30,4#..MRF..ARL |
1 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-95709 |
YM30,40..ARL |
1 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-95725 |
YM30,40..ARL |
1 | ||
| 87123 - KNOB, HEATER | ||||
| 55905-12070 |
KM36,YM30,4#..MRF..ARL |
1 | ||
| 87138R - RESISTOR, REAR HEATER BLOWER | ||||
| 87138-95706 |
YM30,40..ARL |
1 | ||
| 87240H - VALVE ASSY, WATER UNIT | ||||
| 87240-95709 |
YM30,40..ARL |
1 | ||
| Common parts | ||||
| 90159-60038 | ||||
| 90189-06018 | ||||
(8509- )
Click highlighted areas on diagram

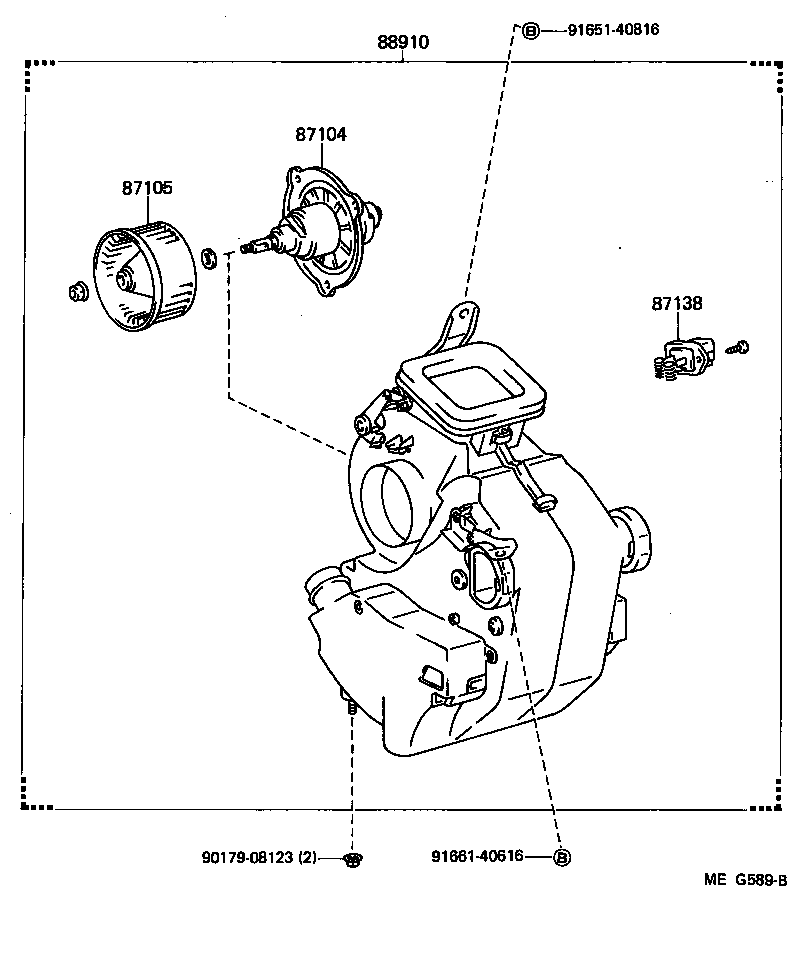

BOOST VENTILATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-95705 |
CM3#,KM36,YM3#,4#..RHD |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-16020 |
CM3#,KM36,YM3#,4#..RHD |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-95707 |
CM3#,KM36,YM3#,4#..RHD |
1 | ||
| Common parts | ||||
| 90179-08123 | ||||
| 91651-40816 | ||||
| 91661-40616 | ||||
