YM30RG-MDSQ (1985)

Toyota Liteace

Production Sep 1985 - Aug 1988
Engine 2YC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )KM37,YM30,31 ; (8509- )CM35,KM36,YM35,4#..ARL

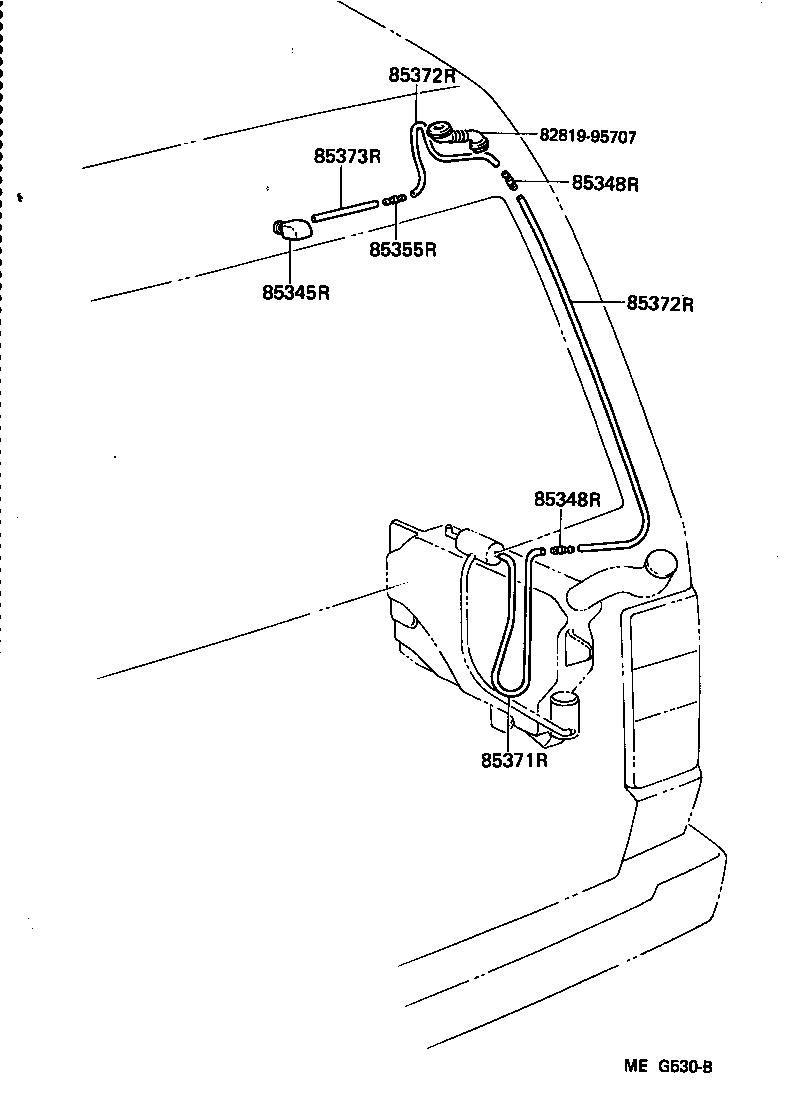

Click highlighted areas on diagram

diagram 8281995707 85345R 85348R 85348R 85355R 85371R 85372R 85372R 85373R
Part # Description Qty Price
85345R - NOZZLE, REAR WASHER
85035-95712

CM35,KM3#,YM30,35,4#..MRF

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

CM3#,KM3#,YM30,35,4#

 2
85355-89122

CM35,KM36,YM30,35,4#..ARL

 2
85355-87201

CM35,KM36,YM30,35..ARL

 2
85355-89122

CM35,KM36,YM3#,4#

 2
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

CM3#,KM3#,YM30,35,4#

 2
85355-89122

CM35,KM36,YM30,35,4#..ARL

 2
85355-87201

CM35,KM36,YM30,35..ARL

 2
85355-89122

CM35,KM36,YM3#,4#

 2
85355R - VALVE, REAR WASHER HOSE
85031-12250

CM35,KM36,YM30,35,4#..ARL

 1
85031-12250

CM3#,KM3#,YM3#,4#

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90446-06013

CM35,KM36,YM30,35,4#..ARL

*H,L=530

 1
90446-06013

CM35,KM3#,YM3#,4#

*H,L=530

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90446-06013

CM35,KM3#,YM30,35,4#..MRF

*H,L=950

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90446-06013

CM35,KM3#,YM30,35,4#..MRF

*H,L=950

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90446-07001

CM35,KM3#,YM30,35,4#..MRF

*H,L=230

 1
Common parts
82819-95707
