YM30RG-MDS (1985)

Toyota Liteace

Production Sep 1985 - Aug 1988
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

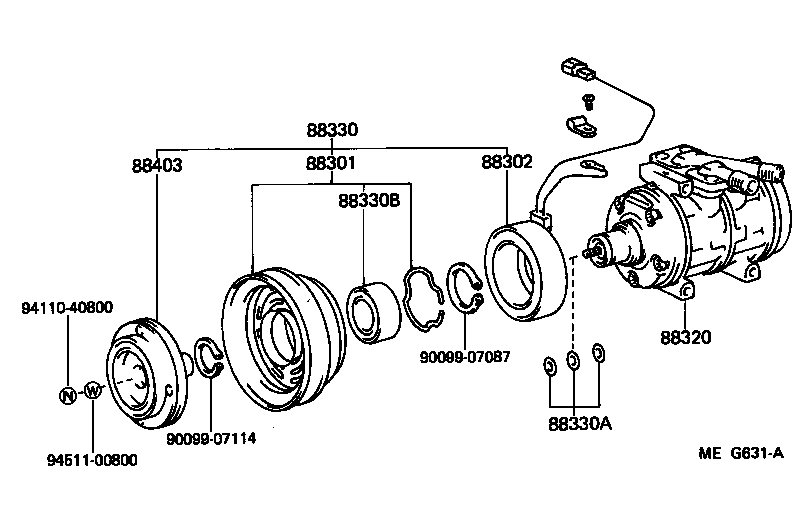

ILLUST NO. 1 OF 3(8509- )

Click highlighted areas on diagram

diagram 88301 88302 88320 88330 88330A 88330B 88403 9009907087 9009907114 9411040800 9451100800
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-22030

YM30,35,4#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-14050

CM3#,YM30,35,4#

 1
88320 - COMPRESSOR ASSY, COOLER
88320-27060

YM30,35,4#

 1
88330 - CLUTCH ASSY, MAGNET
88410-22080

KM37,YM30,35,4#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050

CM3#,YM30,35,4#

 1
88330B - BEARING, MAGNET CLUTCH
90099-10162

YM30,35,4#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-12030

CM3#,YM30,35,4#

 1
Common parts
90099-07087
90099-07114
94110-40800
94511-00800

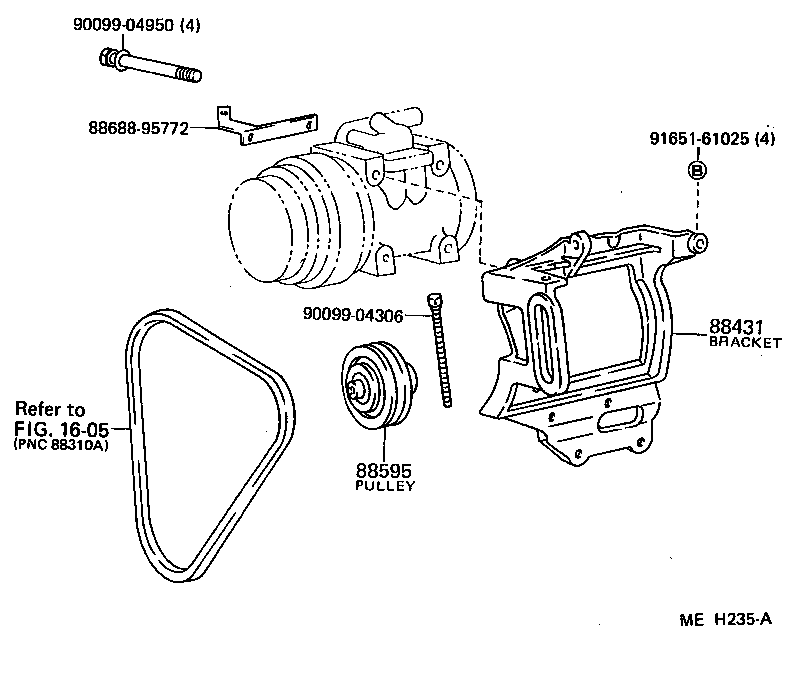

ILLUST NO. 2 OF 3(8509- )YM30,35,40

Click highlighted areas on diagram

diagram 1605 88431 88595 8868895772 9009904306 9009904950 9165161025
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-28070

YM30,35,4#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35020

YM30,35,40

 1
Common parts
88688-95772
90099-04306
90099-04950
91651-61025
Linked diagrams
1605
