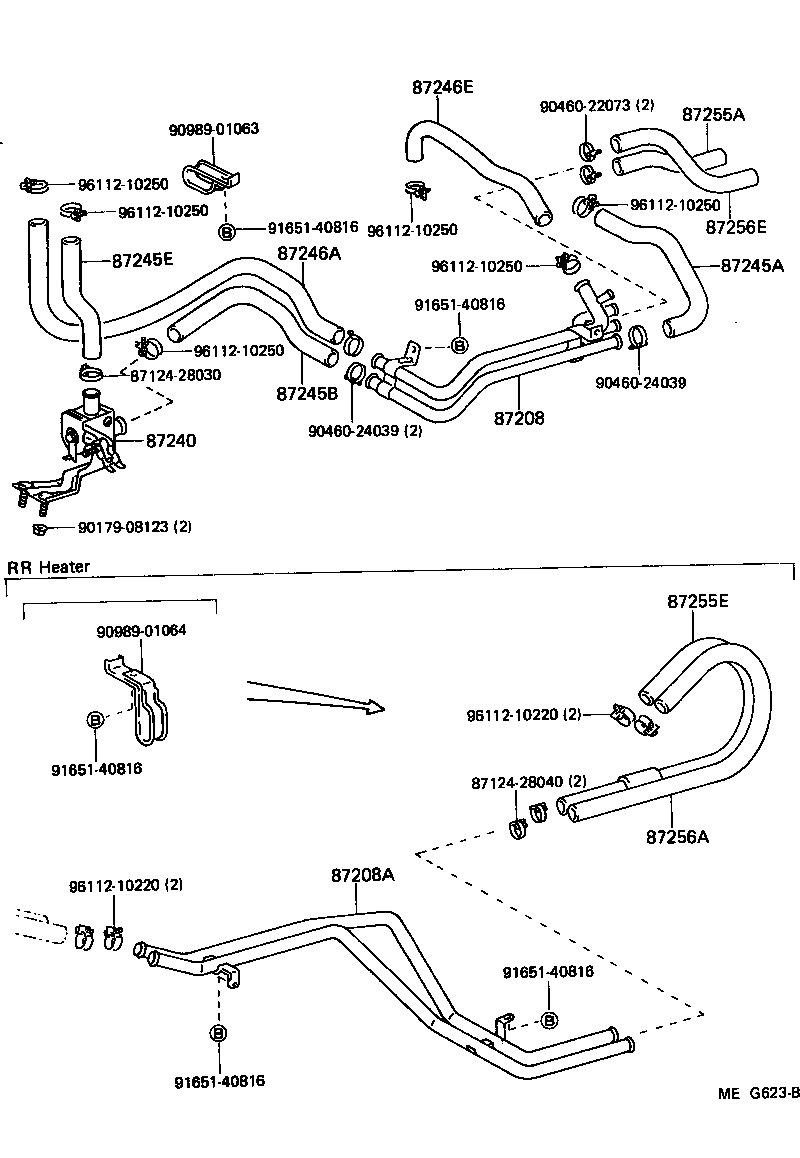

Toyota Liteace KM37 HEATING & AIR CONDITIONING - WATER PIPING

Part #	Description	Period	Qty
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95750	KM37 W(RR HEATER)	08/1988 - 01/1992	1
87208-95749	KM37	08/1988 - 01/1992	1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-95727	KM37	08/1988 - 01/1992	1
87240 - VALVE ASSY, HEATER WATER
87240-95712	CM36..5H;CM36..SRF;KM37,YM30,35;KM36..SRF..(4H,5F);CM36,KM36..MRF..ARL	08/1988 - 04/1998	1
87245A - HOSE, HEATER WATER, INLET A
87245-95735	KM37 W(RR HEATER)	08/1988 - 01/1992	1
99556-30500	KM37 L=500	08/1988 - 01/1992	1
87245B - HOSE, HEATER WATER, INLET B
99556-30380	KM37;KM36..06S..ARL;KM36..SRF..(4H,5F) *H,L=380	08/1988 - 04/1998	1
87245E - HOSE, HEATER WATER, INLET E
99556-30210	CM36..5H;CM36..SRF;KM37,YM30,35;KM36..SRF..(4H,5F);CM36,KM36..MRF..ARL *H,L=210	08/1988 - 04/1998	1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30500	KM37;KM36..06S..ARL;KM36..SRF..(4H,5F) L=500	08/1988 - 01/1992	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95733	KM36,37..LHD	08/1988 - 01/1992	1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-95748	KM37	08/1988 - 01/1992	1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-95746	KM37	08/1988 - 01/1992	1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20700	KM37,YM30 L=700	08/1988 - 01/1992	1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99556-20300	KM37 L=300	08/1988 - 01/1992	1
Common parts
87124-28030
87124-28040
90179-08123
90460-22073
90460-24039
90989-01063
90989-01064
91651-40816
96112-10220
96112-10250

KM37LG-JRS (1988)
