KM37LG-JRS (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

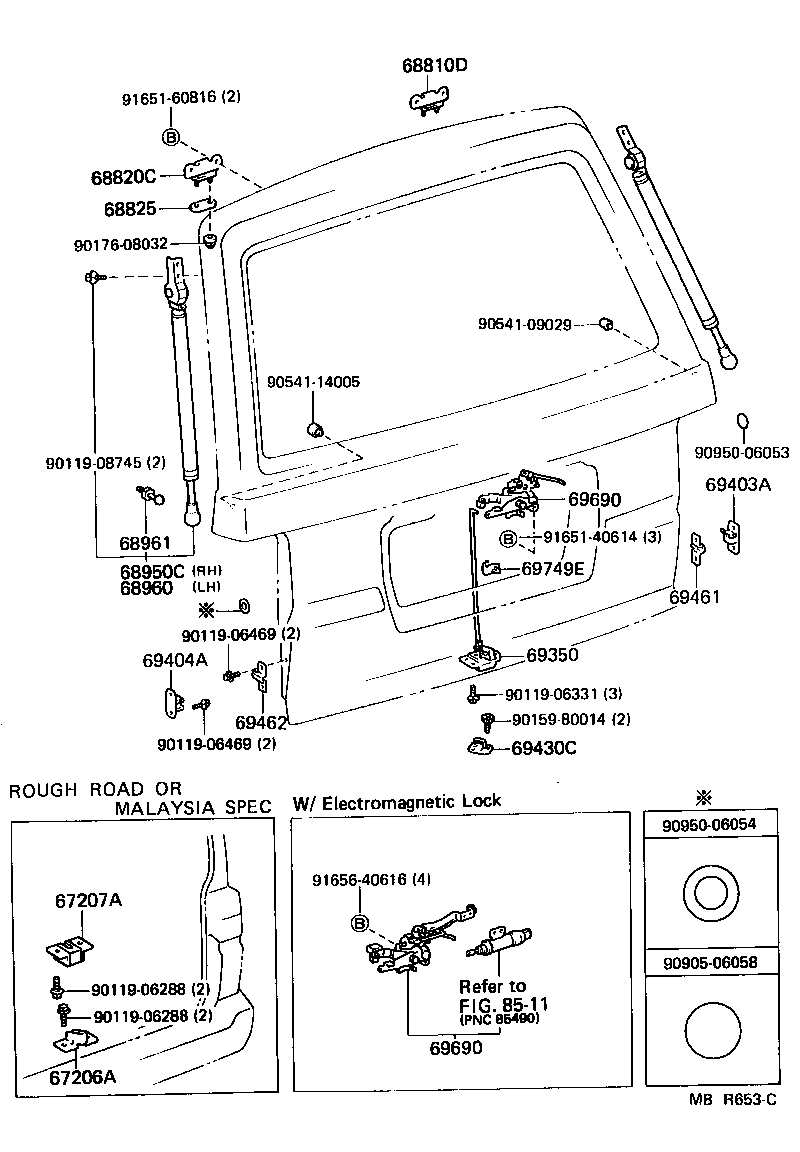

Click highlighted areas on diagram

diagram 67206A 67207A 68810D 68820C 68825 68950C 68960 68961 69350 69403A 69404A 69430C 69461 69462 69690 69690 69749E 8511 9011906288 9011906288 9011906331 9011906469 9011906469 9011908745 9015980014 9017608032 9054109029 9054114005 9090506058 9095006053 9095006054 9165140614 9165160816 9165640616
Part # Description Qty Price
67206A - BRACKET SUB-ASSY, BACK DOOR STOPPER
67206-95J00

CM36..02S;KM3#,YM3#..V4D;KM36..LHD..03S;CM36..(4F,5H)..05S

 1
67206-95J00

CM36..02S;KM36..MRF;KM36..LHD;KM30,37,YM3#;CM36..(4F,5H)..05S;KM36..RHD..V4D..SRF..4H

 1
67206-95J00

KM36..MRF;KM36..LHD;KM30,37,YM30;CM36,YM35..02S;CM36..(4F,5H)..05S;KM36..RHD..V4D..SRF..4H

 1
67207A - STOPPER SUB-ASSY, BACK DOOR, RH
67207-95J01

CM36..02S;KM3#,YM3#..V4D;KM36..LHD..03S;CM36..(4F,5H)..05S

 1
67207-95J01

KM36..MRF;KM36..LHD;KM30,37,YM30;CM36,YM35..02S;CM36..(4F,5H)..05S;KM36..RHD..V4D..SRF..4H

 1
67207-95J01

CM36..02S;KM36..MRF;KM36..LHD;KM30,37,YM3#;CM36..(4F,5H)..05S;KM36..RHD..V4D..SRF..4H

 1
68810D - HINGE ASSY, BACK DOOR, RH
68810-95J01

CM36,KM3#,YM3#

 1
68820C - HINGE ASSY, BACK DOOR, LH
68820-95J01

CM36,KM3#,YM3#

 1
68825 - PLATE, BACK DOOR HINGE
68825-95700

CM36,KM3#,YM3#

 2
68950C - STAY ASSY, BACK DOOR, RH
68950-29795

CM36,KM36,37,YM35..MRF..(02S,05S,09S)

W(REAR WIPER)

 1
68950-29785

CM36,KM3#,YM35..MRF..(02S,05S,09S)

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-29615

CM36,KM3#,YM35..MRF..(02S,05S,09S)

 1
68960-29625

CM36,KM36,37,YM35..MRF..(02S,05S,09S)

W(REAR WIPER)

 1
68961 - BOLT, BACK DOOR STAY
68961-95702

CM36,KM3#,YM3#

 2
69350 - LOCK ASSY, BACK DOOR
69350-95709

CM36,KM3#,YM3#

 1
69403A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH
69403-95701

CM36,KM3#,YM3#

 1
69404A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH
69404-95701

CM36,KM3#,YM3#

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-95702

CM36,KM3#,YM3#

 1
69461 - STOPPER, BACK DOOR SIDE MALE, RH
69461-95702

CM36,KM3#,YM3#

 1
69462 - STOPPER, BACK DOOR SIDE MALE, LH
69462-95702

CM36,KM3#,YM3#

 1
69690 - CONTROL ASSY, BACK DOOR REMOTE
69690-95704

KM30,37,YM35;CM36,KM36,YM30..ARL

 1
69690 - CONTROL ASSY, BACK DOOR REMOTE
69690-95704

KM30,37,YM35;CM36,KM36,YM30..ARL

 1
69749E - CLAMP, BACK DOOR LOCK LINK
69749-30020

CM36,KM3#,YM3#

 1
Common parts
90119-06288
90119-06331
90119-06469
90119-08745
90159-80014
90176-08032
90541-09029
90541-14005
90905-06058
90950-06053
90950-06054
91651-40614
91651-60816
91656-40616
Linked diagrams
8511
