KM37LG-JRS (1986)

Toyota Liteace

Production Aug 1986 - Aug 1988
Engine 5K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

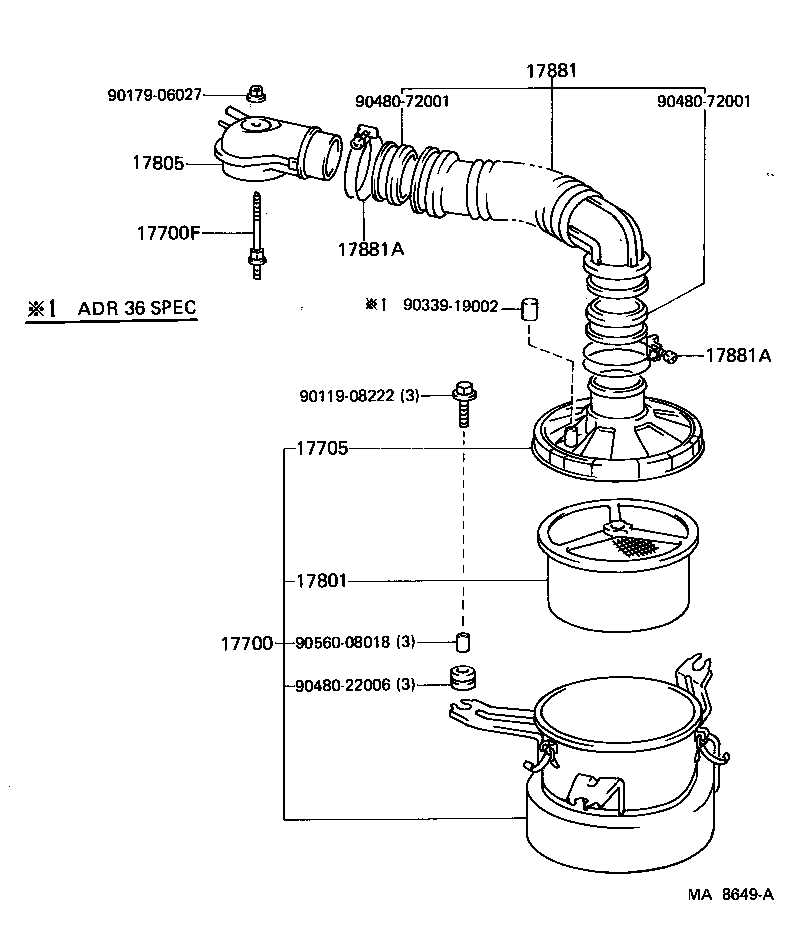

ILLUST NO. 1 OF 2(8509-8805)5K# ; (8805- )5K

Click highlighted areas on diagram

diagram 17700 17700F 17705 17801 17805 17881 17881A 17881A 9011908222 9017906027 9033919002 9048022006 9048072001 9048072001 9056008018
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-13610

5K..KM36..LHD;5K..KM3#..05S,09S

CYCLONE TYPE

 1
17700-13610

5K..KM3#..LHD

CYCLONE TYPE

 1
17700-13600

5K..KM3#..4H

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06060

5K#..KM3#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-13140

5K..KM3#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-13050

5K#..KM3#

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-13060

5K#..KM3#

 1
17805-13060

5K..KM3#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-13150

5K..KM3#..LHD

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-80001

5K#..KM3#

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-80001

5K#..KM3#

 2
Common parts
90119-08222
90179-06027
90339-19002
90480-22006
90480-72001
90560-08018
