KM37LG-JR (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

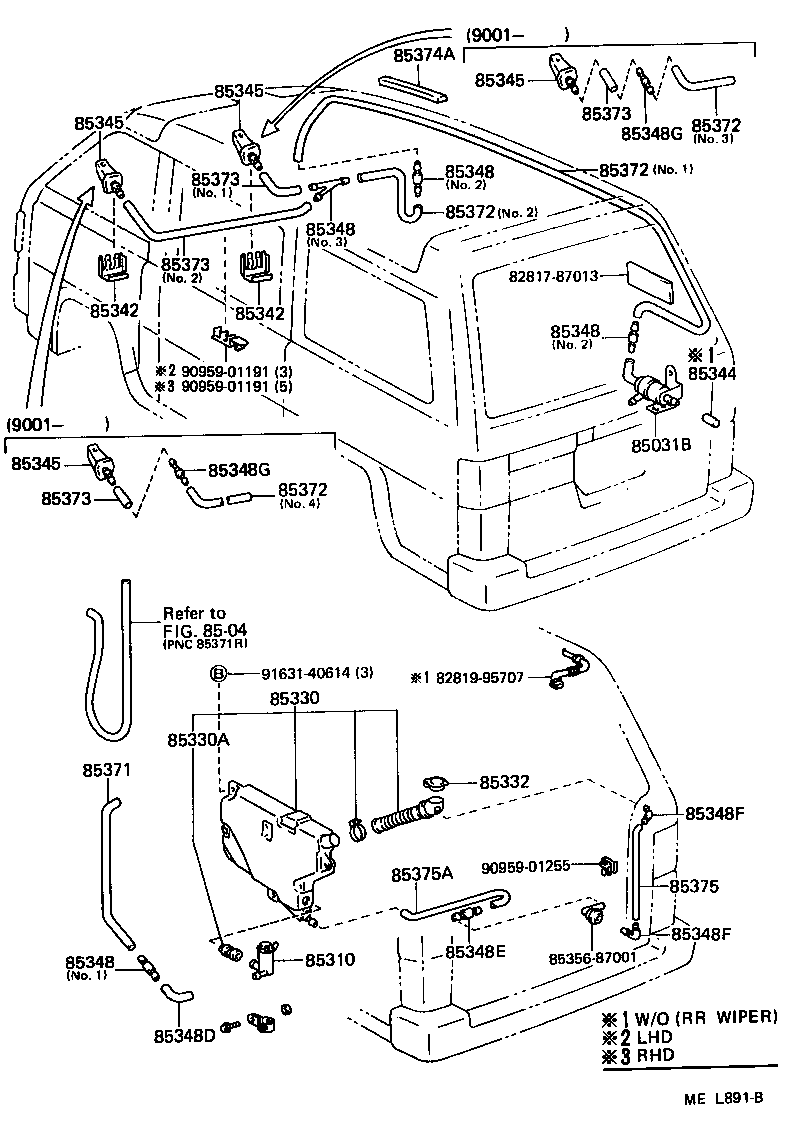

Click highlighted areas on diagram

diagram 8281787013 8281995707 85031B 8504 85310 85330 85330A 85332 85342 85342 85344 85345 85345 85345 85345 85348 85348 85348 85348 85348D 85348E 85348F 85348F 85348G 85348G 8535687001 85371 85372 85372 85372 85372 85373 85373 85373 85373 85374A 85375 85375A 9095901191 9095901191 9095901255 9163140614
Part # Description Qty Price
85031B - VALVE SUB-ASSY, WASHER
85031-95700

CM36,KM3#,YM3#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

CM36,KM3#,YM3#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85331-95700

CM36,KM3#,YM3#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

CM36,KM3#,YM3#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-95700

CM36,KM3#,YM3#

 1
85342 - HOLDER, WASHER NOZZLE
85342-95J01

CM36,KM3#,YM3#

 2
85342 - HOLDER, WASHER NOZZLE
85342-95J01

CM36,KM3#,YM3#

 2
85344 - TUBE, WINDSHIELD WASHER HOSE, STOP
85344-30010

KM36..GEN;KM36..03S..ARL;CM36,KM30,37,YM31,35

 1
85345 - NOZZLE, WINDSHIELD WASHER
85035-95714

CM36,KM3#,YM3#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-95714

CM36,KM3#,YM3#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-95714

CM36,KM3#,YM3#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-95714

CM36,KM3#,YM3#

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

CM36,KM3#,YM3#

NO.1

 1
85349-14010

CM36,KM3#,YM3#

NO.2

 1
85348-12250

CM36,KM3#,YM3#

NO.3

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

CM36,KM3#,YM3#

NO.1

 1
85349-14010

CM36,KM3#,YM3#

NO.2

 1
85348-12250

CM36,KM3#,YM3#

NO.3

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

CM36,KM3#,YM3#

NO.1

 1
85349-14010

CM36,KM3#,YM3#

NO.2

 1
85348-12250

CM36,KM3#,YM3#

NO.3

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

CM36,KM3#,YM3#

NO.1

 1
85349-14010

CM36,KM3#,YM3#

NO.2

 1
85348-12250

CM36,KM3#,YM3#

NO.3

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-14481

CM36,KM3#,YM3#

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85349-89122

CM36,KM3#,YM3#

 1
85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3
85355-20200

CM36,KM3#,YM3#

 2
85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3
85355-20200

CM36,KM3#,YM3#

 2
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06013

CM36,KM3#,YM3#

*H,L=320

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06013

CM36,KM3#,YM3#

L=450,NO.2

 1
85343-95706

CM36,KM3#,YM3#

L=4700,NO.1

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06013

CM36,KM3#,YM3#

L=450,NO.2

 1
85343-95706

CM36,KM3#,YM3#

L=4700,NO.1

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06013

CM36,KM3#,YM3#

L=450,NO.2

 1
85343-95706

CM36,KM3#,YM3#

L=4700,NO.1

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06013

CM36,KM3#,YM3#

L=450,NO.2

 1
85343-95706

CM36,KM3#,YM3#

L=4700,NO.1

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06052

CM36,KM3#,YM3#

*H,L=660,NO.2

 1
90446-06013

CM36,KM3#,YM3#

L=450,NO.1

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06052

CM36,KM3#,YM3#

*H,L=660,NO.2

 1
90446-06013

CM36,KM3#,YM3#

L=450,NO.1

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06052

CM36,KM3#,YM3#

*H,L=660,NO.2

 1
90446-06013

CM36,KM3#,YM3#

L=450,NO.1

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06052

CM36,KM3#,YM3#

*H,L=660,NO.2

 1
90446-06013

CM36,KM3#,YM3#

L=450,NO.1

 1
85375 - HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)
90446-06013

CM36,KM3#,YM3#

*H,L=340

 1
85375A - HOSE, WINDSHIELD WASHER, NO.2(FOR LEVEL GAGE)
90446-06013

CM36,KM3#,YM3#

*H,L=385

 1
Common parts
82817-87013
82819-95707
85356-87001
90959-01191
90959-01255
91631-40614
Linked diagrams
8504
