KM37LG-JR (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )5K

Click highlighted areas on diagram

12V 0.8KW

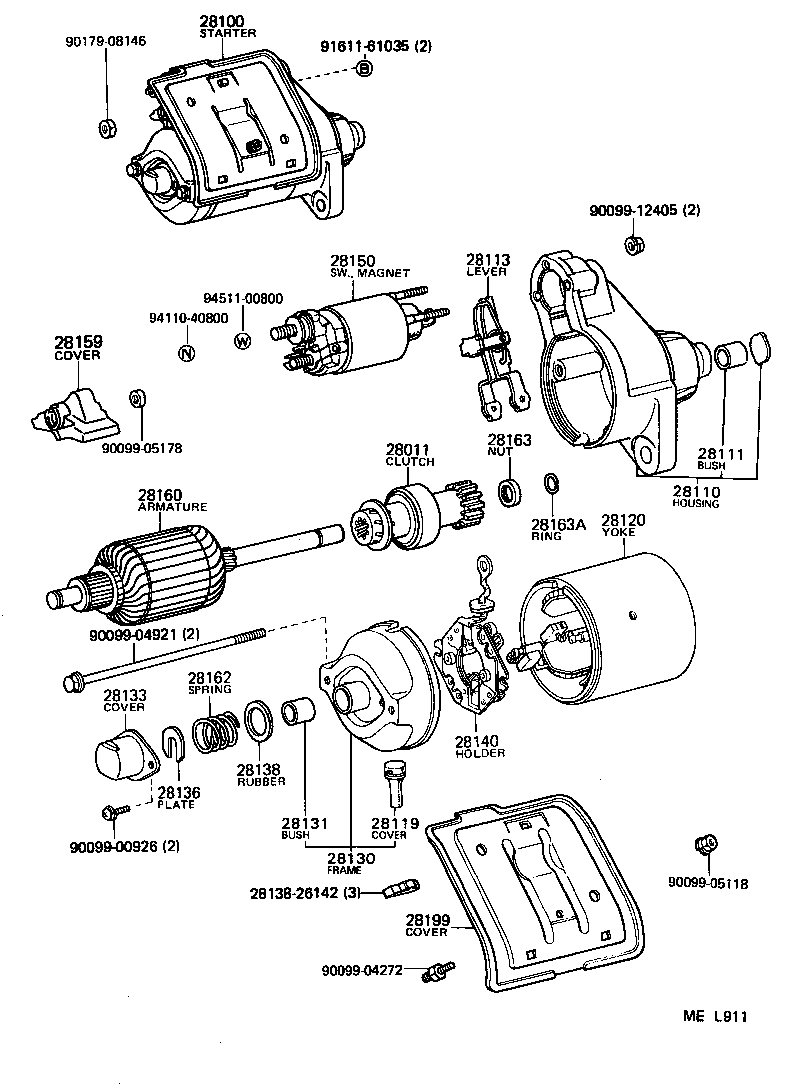

diagram 28011 28100 28110 28111 28113 28119 28120 28130 28131 28133 28136 28138 2813826142 28140 28150 28159 28160 28162 28163 28163A 28199 9009900926 9009904272 9009904921 9009905118 9009905178 9009912405 9017908146 9161161035 9411040800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-15010

5K..KM3#

 1
28100 - STARTER ASSY
28100-13020

5K..KM3#

12V 0.8KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-13020

5K..KM3#

 1
28111 - BUSH(FOR STARTER HOUSING)
28111-51011

5K..KM3#

 1
28113 - LEVER, STARTER PINION DRIVE
28113-15011

5K..KM3#

 1
28119 - COVER, STARTER END FRAME
28199-77090

5K..KM3#

 1
28120 - YOKE ASSY, STARTER
28120-26140

5K..KM3#

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-13020

5K..KM3#

 1
28131 - BUSH, COMMUTATOR END FRAME
90099-10134

5K..KM3#

 1
28133 - COVER, BEARING(FOR END FRAME)
28132-15010

5K..KM3#

 1
28136 - PLATE, STARTER LOCK
28136-15010

5K..KM3#

 1
28138 - RUBBER(FOR STARTER BEARING COVER)
28138-15010

5K..KM3#

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-15010

5K..KM3#

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-37010

5K..KM3#

 1
28159 - COVER, STARTER PROTECTOR
28159-15010

5K..KM3#

 1
28160 - ARMATURE ASSY, STARTER
28160-15010

5K..KM3#

 1
28162 - SPRING, STARTER BRAKE
28162-15010

5K..KM3#

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-40011

5K..KM3#

 1
28163A - RING, SNAP(FOR STARTER PINION STOP NUT)
90099-07047

5K..KM3#

 1
28199 - COVER, STARTER
28199-15110

5K..KM3#

 1
Common parts
28138-26142
90099-00926
90099-04272
90099-04921
90099-05118
90099-05178
90099-12405
90179-08146
91611-61035
94110-40800
94511-00800
