KM36RV-MR (1988)

Toyota Liteace

Production Aug 1988 - Apr 1998
Engine 5K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )KM36..RHD

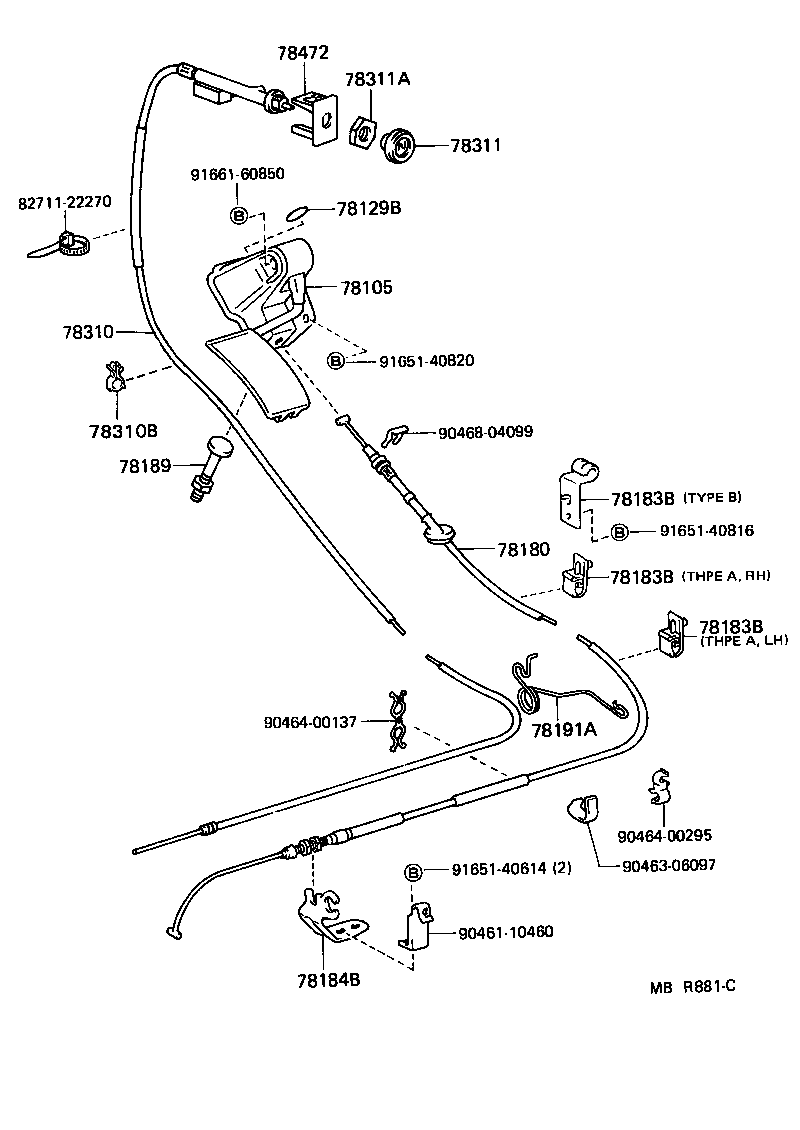

Click highlighted areas on diagram

diagram 78105 78129B 78180 78183B 78183B 78183B 78184B 78189 78191A 78310 78310B 78311 78311A 78472 8271122270 9046110460 9046306097 9046400137 9046400295 9046804099 9165140614 9165140816 9165140820 9166160850
Part # Description Qty Price
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78105-95706

CM36,KM36,YM3#..RHD

 1
78129B - SEAL, ACCELERATOR PEDAL ARM
78129-95J00

CM36,KM36,YM3#..RHD

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95720

KM36..RHD

 1
78150-27010

KM36..RHD

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-95705

KM36,YM3#..RHD

TYPE A

 2
78183-95705

KM36,YM3#..RHD

TYPE A,LH

 1
78183-95704

KM36,YM3#..RHD

TYPE A,RH

 1
78183-95707

CM36,KM36,YM3#..RHD

TYPE B

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-95705

KM36,YM3#..RHD

TYPE A

 2
78183-95705

KM36,YM3#..RHD

TYPE A,LH

 1
78183-95704

KM36,YM3#..RHD

TYPE A,RH

 1
78183-95707

CM36,KM36,YM3#..RHD

TYPE B

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-95705

KM36,YM3#..RHD

TYPE A

 2
78183-95705

KM36,YM3#..RHD

TYPE A,LH

 1
78183-95704

KM36,YM3#..RHD

TYPE A,RH

 1
78183-95707

CM36,KM36,YM3#..RHD

TYPE B

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-95705

KM3#

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95702

CM36,KM3#,YM3#

 1
78208-95702

KM3#,YM3#

 1
78191A - CLAMP (FOR ACCELERATOR WIRE SET)
78183-95710

KM36..05S

 1
78310 - CABLE ASSY, CHOKE
78304-95706

KM36..5F

 1
78311 - KNOB, CHOKE CONTROL CABLE
78303-95700

KM3#

 1
78311A - NUT, CHOKE SHAFT SET
78314-95010

KM3#

 1
78472 - SUPPORT, THROTTLE CONTROL CABLE
78472-9570003

KM3#

GRAY,TRIM1#

 1
Common parts
82711-22270
90461-10460
90463-06097
90464-00137
90464-00295
90468-04099
91651-40614
91651-40816
91651-40820
91661-60850
