KM36RV-KR (1985)

Toyota Liteace

Production Sep 1985 - Aug 1988
Engine 5K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8509- )

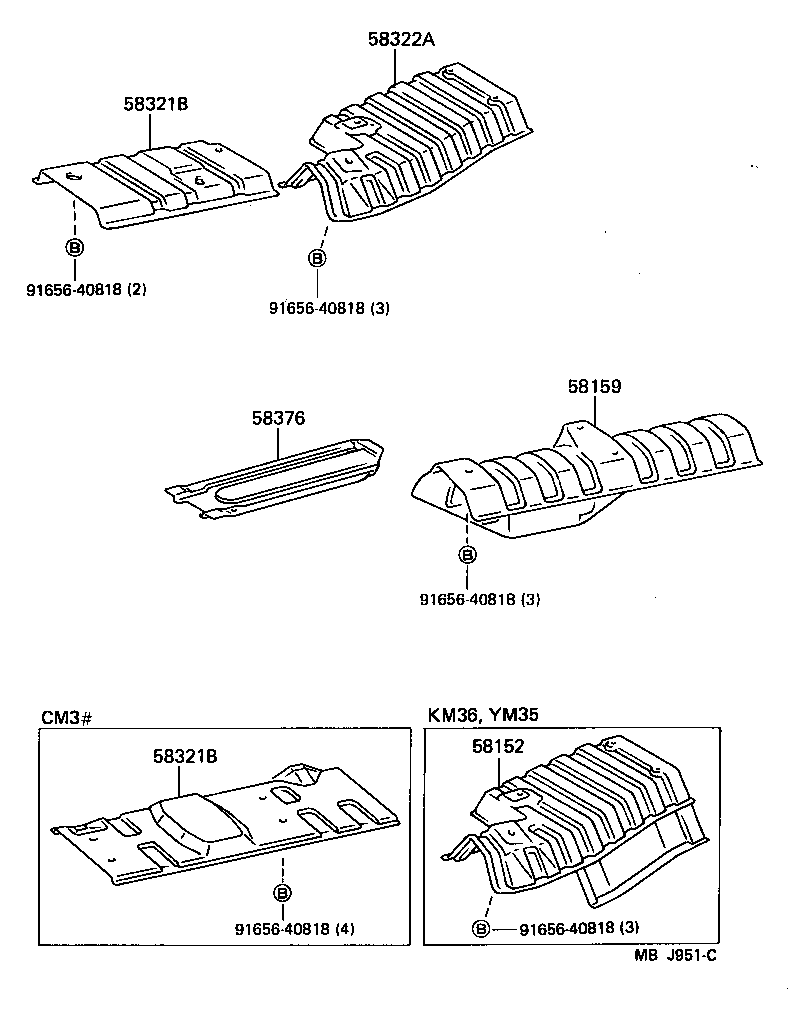

Click highlighted areas on diagram

diagram 58152 58159 58321B 58321B 58322A 58376 9165640818 9165640818 9165640818 9165640818 9165640818
Part # Description Qty Price
58321B - INSULATOR, REAR FLOOR HEAT, NO.1
58321-95707

KM36..RHD

 1
58321-95704

YM3#,4#

 1
58321-95707

KM36..RHD..GEN

 1
58321B - INSULATOR, REAR FLOOR HEAT, NO.1
58321-95707

KM36..RHD

 1
58321-95704

YM3#,4#

 1
58321-95707

KM36..RHD..GEN

 1
58376 - INSULATOR, REAR FLOOR HEAT, NO.2
58322-95701

KM3#,YM3#,4#

 1
Common parts
91656-40818
