KM36RV-KR (1988)
Toyota Liteace

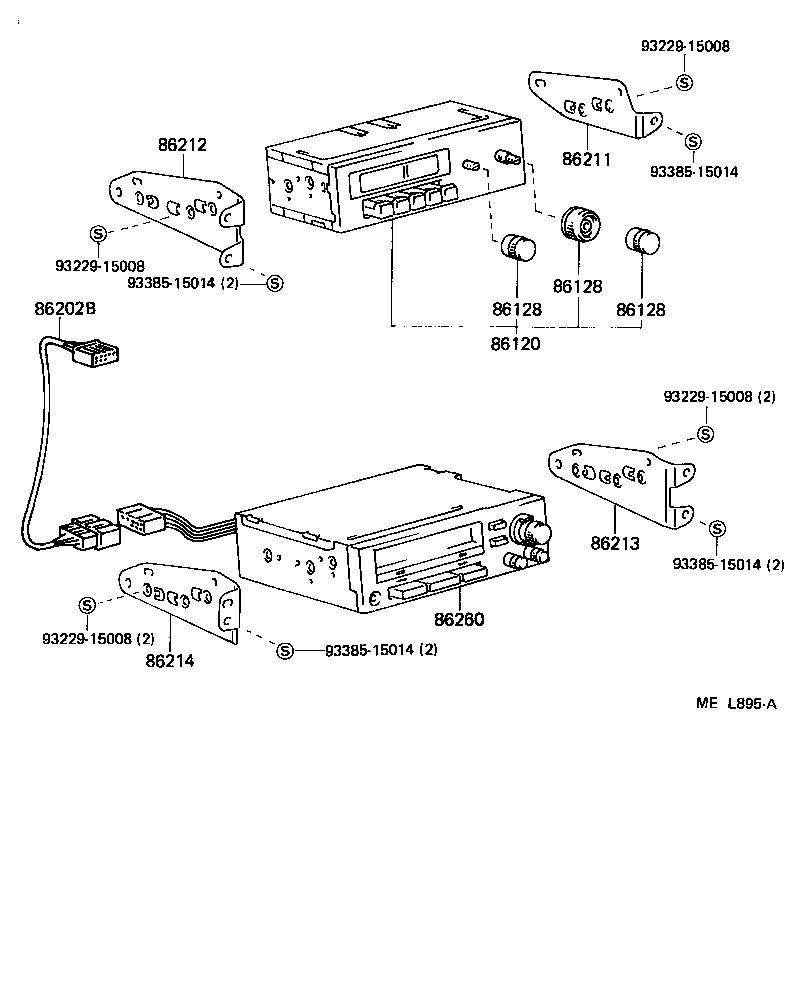

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-16350 |
KM36..4F;CM36,KM36,YM35..ARL FUJITSU TEN,AM 5-PB |
1 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-16060 |
CM36..5H;KM37,YM35;CM36,KM36..SRF;CM36,KM36..MRF..ARL TONE |
1 | ||
| 86128-16040 |
CM36..5H;KM37,YM35;CM36,KM36..SRF;CM36,KM36..MRF..ARL PWR/VOL,TUNE |
2 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-16060 |
CM36..5H;KM37,YM35;CM36,KM36..SRF;CM36,KM36..MRF..ARL TONE |
1 | ||
| 86128-16040 |
CM36..5H;KM37,YM35;CM36,KM36..SRF;CM36,KM36..MRF..ARL PWR/VOL,TUNE |
2 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-16060 |
CM36..5H;KM37,YM35;CM36,KM36..SRF;CM36,KM36..MRF..ARL TONE |
1 | ||
| 86128-16040 |
CM36..5H;KM37,YM35;CM36,KM36..SRF;CM36,KM36..MRF..ARL PWR/VOL,TUNE |
2 | ||
| 86202B - WIRE, TAPE PLAYER | ||||
| 86203-95715 |
CM36..5H;KM37,YM35;CM36,KM36..SRF;CM36,KM36..MRF..ARL |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86215-95700 |
CM36,KM36,37,YM31,35..GEN W/O(RADIO) |
1 | ||
| 86211-95714 |
KM36..4F |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-95706 |
KM36..4F |
1 | ||
| 86212-95704 |
CM36,KM36,37,YM31,35..GEN W/O(RADIO) |
1 | ||
| 86213 - BRACKET, RADIO, NO.3 | ||||
| 86211-95712 |
CM36,KM36,YM3#..RHD |
1 | ||
| 86214 - BRACKET, RADIO, NO.4 | ||||
| 86212-95705 |
CM36,KM36,YM3#..RHD |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-16140 |
CM36..5H;KM37,YM35;CM36,KM36..SRF;CM36,KM36..MRF..ARL |
1 | ||
| Common parts | ||||
| 93229-15008 | ||||
| 93385-15014 | ||||

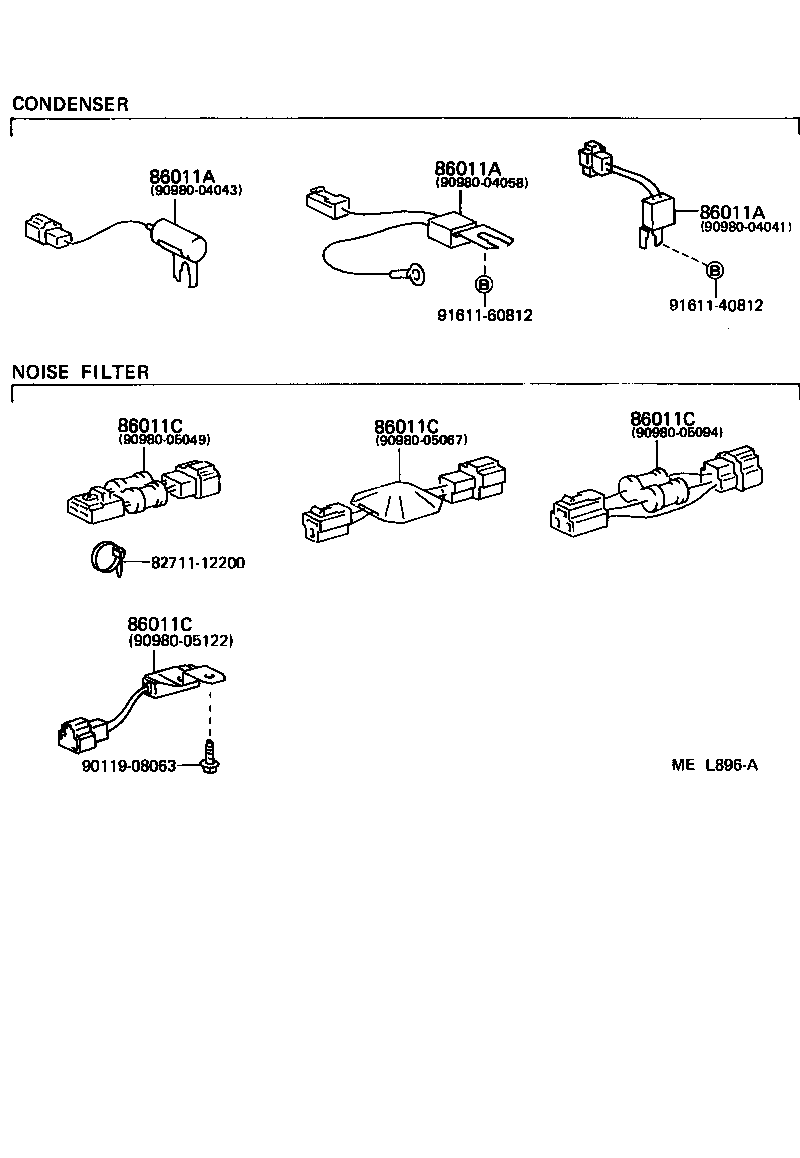

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04043 |
KM30,37;KM36..SRF;KM36..06S..ARL REGULATOR |
1 | ||
| 90980-04058 |
KM30,37;KM36..SRF;KM36..06S..ARL I.G COIL |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04043 |
KM30,37;KM36..SRF;KM36..06S..ARL REGULATOR |
1 | ||
| 90980-04058 |
KM30,37;KM36..SRF;KM36..06S..ARL I.G COIL |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04043 |
KM30,37;KM36..SRF;KM36..06S..ARL REGULATOR |
1 | ||
| 90980-04058 |
KM30,37;KM36..SRF;KM36..06S..ARL I.G COIL |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05094 |
CM36,KM3#,YM3# FLASHER RELAY |
1 | ||
| 90980-05067 |
CM36,KM3#,YM3# STOP LAMP SW |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05094 |
CM36,KM3#,YM3# FLASHER RELAY |
1 | ||
| 90980-05067 |
CM36,KM3#,YM3# STOP LAMP SW |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05094 |
CM36,KM3#,YM3# FLASHER RELAY |
1 | ||
| 90980-05067 |
CM36,KM3#,YM3# STOP LAMP SW |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05094 |
CM36,KM3#,YM3# FLASHER RELAY |
1 | ||
| 90980-05067 |
CM36,KM3#,YM3# STOP LAMP SW |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90119-08063 | ||||
| 90980-04041 | ||||
| 90980-04043 | ||||
| 90980-04058 | ||||
| 90980-05049 | ||||
| 90980-05067 | ||||
| 90980-05094 | ||||
| 90980-05122 | ||||
| 91611-40812 | ||||
| 91611-60812 | ||||
