KM36RV-KR (1988)

Toyota Liteace

Production Aug 1988 - Oct 1989
Engine 5K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

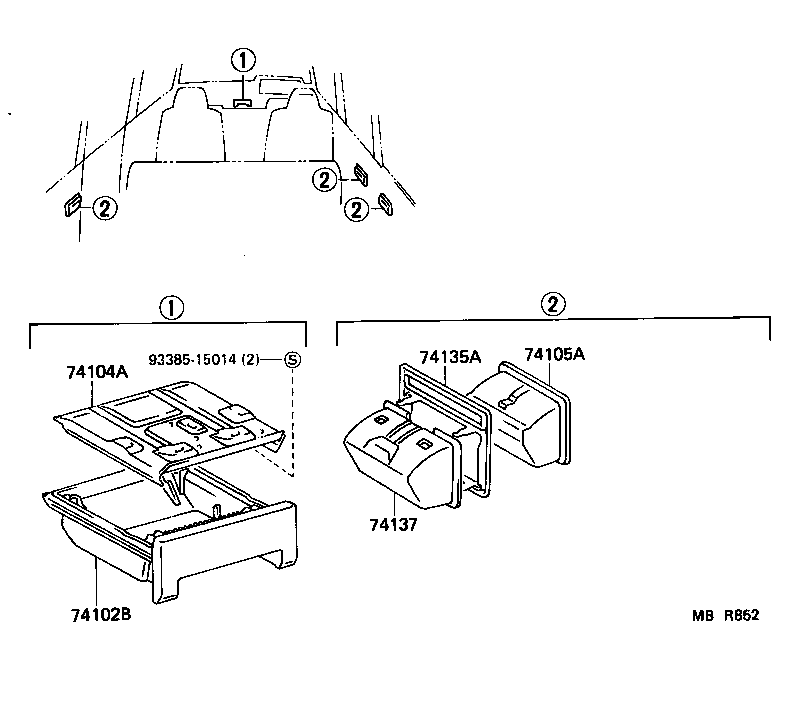

Click highlighted areas on diagram

diagram 74102B 74104A 74105A 74135A 74137 9338515014
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-9570203

CM36,KM3#,YM3#

GRAY,TRIM1#

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-95710

CM36,KM3#,YM3#

 1
74105A - RECEPTACLE SUB-ASSY, REAR ASH
74105-1001013

CM36,KM36,YM31,35..VSG

GRAY,TRIM1#

 1
74135A - RETAINER, REAR ASH RECEPTACLE, NO.1
74135-10030

CM36,KM36,YM31,35..VSG

 1
74137 - RETAINER, REAR ASH RECEPTACLE, INNER RH
74137-10030

CM36,KM36,YM31,35..VSG

 1
Common parts
93385-15014
