KM36RV-KR (1988)

Toyota Liteace

Production Aug 1988 - Oct 1989
Engine 5K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

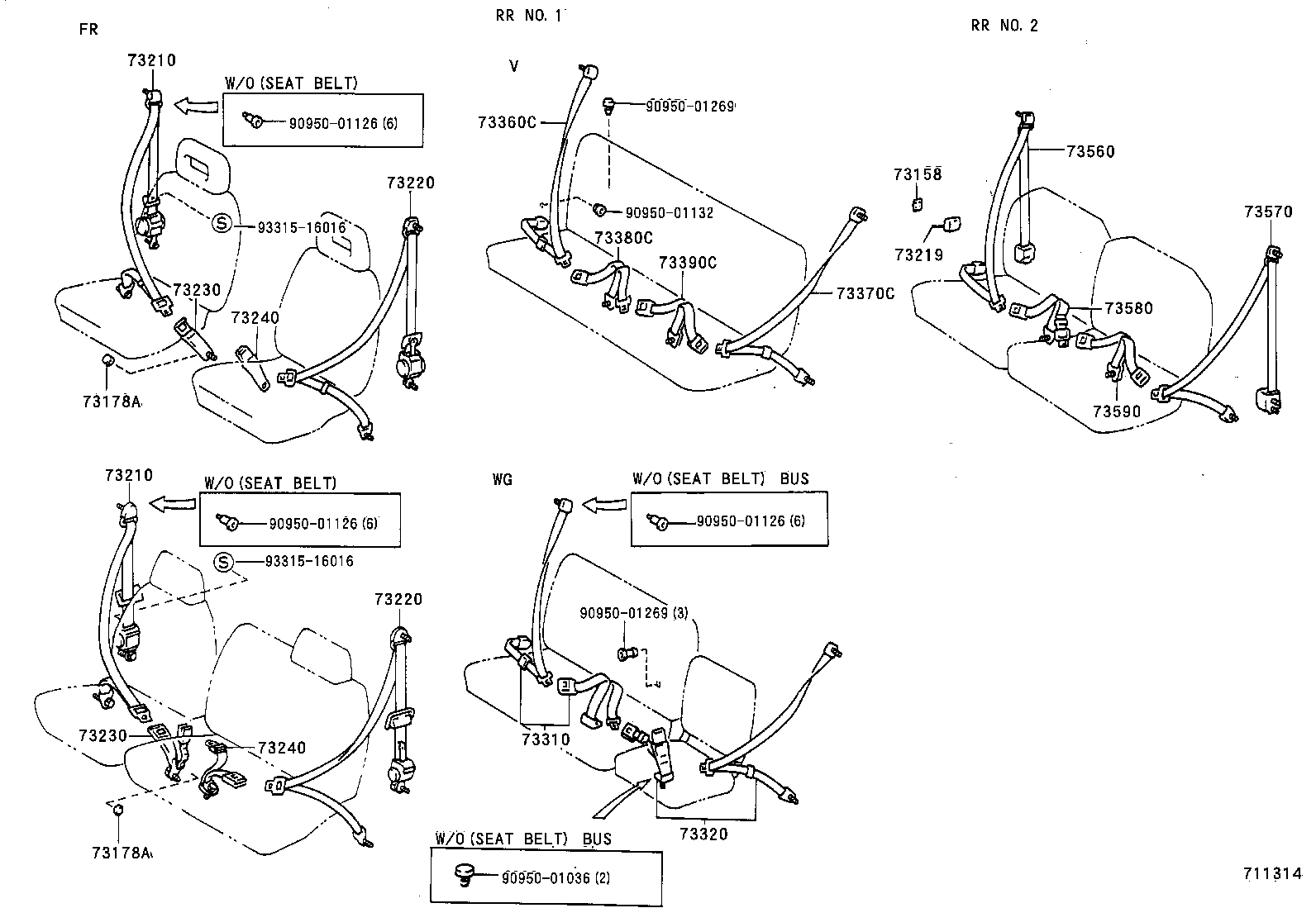

Click highlighted areas on diagram

diagram 73158 73178A 73178A 73210 73210 73219 73220 73220 73230 73230 73240 73240 73310 73320 73360C 73370C 73380C 73390C 73560 73570 73580 73590 9095001036 9095001126 9095001126 9095001126 9095001132 9095001269 9095001269 9331516016 9331516016
Part # Description Qty Price
73178A - CAP, SEAT BELT ANCHOR COVER
73178-95J00

KM36..LHD;CM36,KM3#,YM3#..02S,05S,08S,09S

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-95J00

KM36..LHD;CM36,KM3#,YM3#..02S,05S,08S,09S

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-9572703

KM36..4F;CM36,KM30,36,YM31..MRF..5F..GEN

GRAY,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-9572703

KM36..4F;CM36,KM30,36,YM31..MRF..5F..GEN

GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-9571003

KM36..4F;CM36,KM30,36,YM31..MRF..5F..GEN

GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-9571003

KM36..4F;CM36,KM30,36,YM31..MRF..5F..GEN

GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-9572003

CM36,KM36..SRF..(02S,05S)

GRAY,TRIM1#

 1
73230-9572003

CM36,KM36..(02S,05S)..GEN

GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-9572003

CM36,KM36..SRF..(02S,05S)

GRAY,TRIM1#

 1
73230-9572003

CM36,KM36..(02S,05S)..GEN

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-9573703

KM36..LHD;CM36,KM3#..(02S,05S,09S)..GEN

GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-9573703

KM36..LHD;CM36,KM3#..(02S,05S,09S)..GEN

GRAY,TRIM1#

 1
Common parts
90950-01036
90950-01126
90950-01132
90950-01269
93315-16016
