KM36RV-KR (1988)

Toyota Liteace

Production Aug 1988 - Oct 1989
Engine 5K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

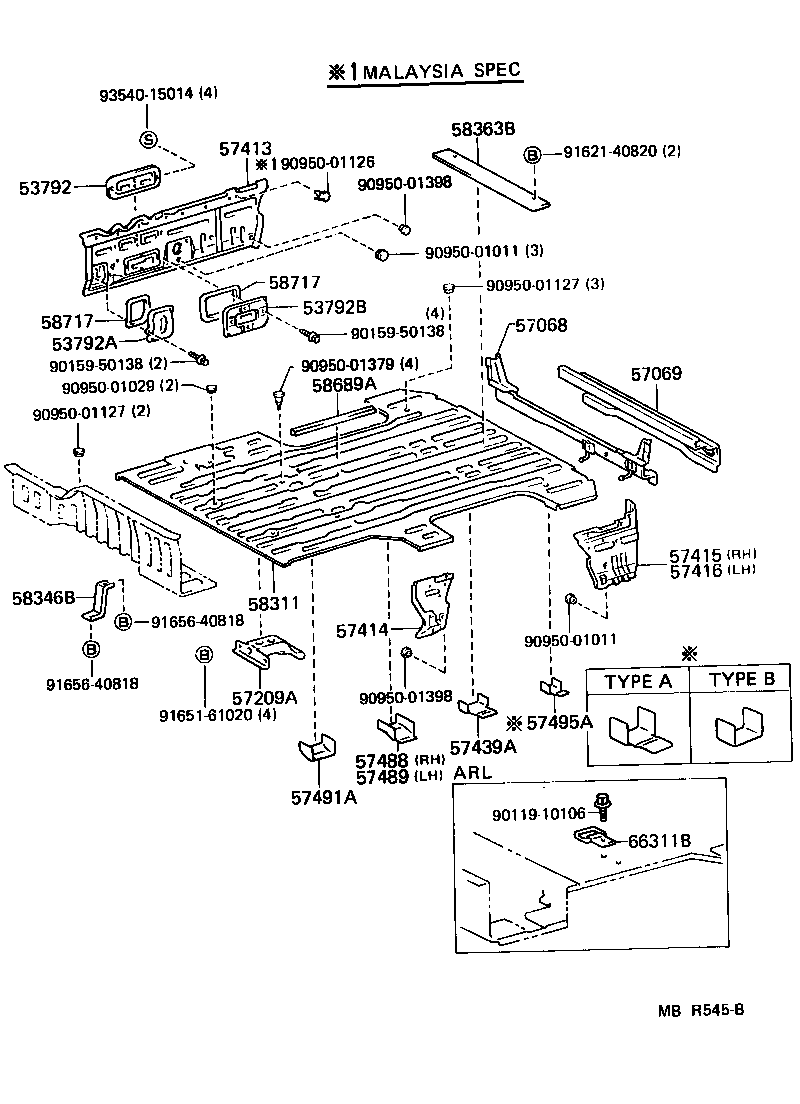

ILLUST NO. 1 OF 2(8808- )RHD..V4D

Click highlighted areas on diagram

diagram 53792 53792A 53792B 57068 57069 57209A 57413 57414 57415 57416 57439A 57488 57489 57491A 57495A 58311 58346B 58363B 58689A 58717 58717 66311B 9011910106 9015950138 9015950138 9095001011 9095001011 9095001029 9095001126 9095001127 9095001127 9095001379 9095001398 9095001398 9162140820 9165161020 9165640818 9165640818 9354015014
Part # Description Qty Price
57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
57068-95700

CM36,KM3#,YM31,35

 1
57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER
57069-95702

KM30,36,YM31..05S;CM36..MRF..5F..GEN

 1
57413 - RAIL, FLOOR SIDE, CENTER RH
57405-95730

CM36..RHD;KM36,YM35..VSP..ARL;KM36..RHD..V4D..GEN

 1
57414 - RAIL, FLOOR SIDE, CENTER LH
57414-95718

YM35..ARL;KM36..03S,05S;CM36,YM31..RHD;KM36..RHD..06S..GEN

 1
57415 - RAIL, FLOOR SIDE, REAR RH
57047-95705

CM36,KM36,37,YM31,35

 1
57416 - RAIL, FLOOR SIDE, REAR LH
57048-95705

CM36,KM36,37,YM31,35

 1
58311 - PAN, REAR FLOOR
58311-95774

KM36,YM31..RHD..VSG..GEN

 1
58346B - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58348-95700

KM36..RHD..GEN

 1
Common parts
90119-10106
90159-50138
90950-01011
90950-01029
90950-01126
90950-01127
90950-01379
90950-01398
91621-40820
91651-61020
91656-40818
93540-15014

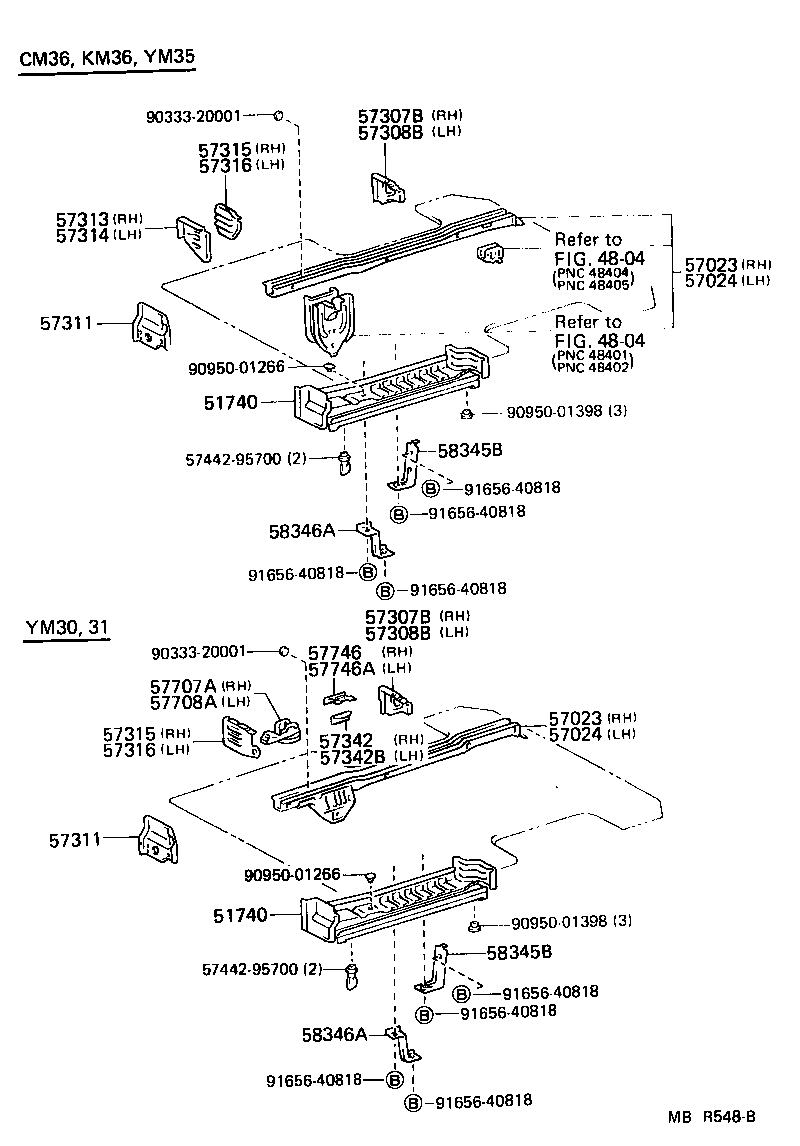

ILLUST NO. 2 OF 2(8808- )RHD..V4D

Click highlighted areas on diagram

diagram 4804 4804 51740 51740 57023 57023 57024 57024 57307B 57307B 57308B 57308B 57311 57311 57313 57314 57315 57315 57316 57316 57342 57342B 5744295700 5744295700 57707A 57708A 57746 57746A 58345B 58345B 58346A 58346A 9033320001 9033320001 9095001266 9095001266 9095001398 9095001398 9165640818 9165640818 9165640818 9165640818 9165640818 9165640818 9165640818 9165640818
Part # Description Qty Price
51740 - STEP ASSY, REAR FLOOR, LH
51740-95702

CM36,YM31..RHD;KM36..RHD..06S..GEN;KM36,YM35..(03S,05S)..GEN

 1
51740 - STEP ASSY, REAR FLOOR, LH
51740-95702

CM36,YM31..RHD;KM36..RHD..06S..GEN;KM36,YM35..(03S,05S)..GEN

 1
57023 - MEMBER SUB-ASSY, REAR SIDE, RH
57023-95712

CM36,KM36,37,YM35

 1
57023 - MEMBER SUB-ASSY, REAR SIDE, RH
57023-95712

CM36,KM36,37,YM35

 1
57024 - MEMBER SUB-ASSY, REAR SIDE, LH
57024-95711

CM36,KM36,37,YM35

 1
57024 - MEMBER SUB-ASSY, REAR SIDE, LH
57024-95711

CM36,KM36,37,YM35

 1
57307B - OUTRIGGER SUB-ASSY, NO.4 RH
57307-95701

YM30;CM36,KM36,37,YM31..GEN

 1
57307B - OUTRIGGER SUB-ASSY, NO.4 RH
57307-95701

YM30;CM36,KM36,37,YM31..GEN

 1
57308B - OUTRIGGER SUB-ASSY, NO.4 LH
57308-95701

YM30;CM36,KM36,37,YM31..GEN

 1
57308B - OUTRIGGER SUB-ASSY, NO.4 LH
57308-95701

YM30;CM36,KM36,37,YM31..GEN

 1
57311 - OUTRIGGER, NO.1 RH
57311-95707

CM36,KM36,YM3#..RHD..V4D

 1
57311 - OUTRIGGER, NO.1 RH
57311-95707

CM36,KM36,YM3#..RHD..V4D

 1
57313 - OUTRIGGER, NO.2 RH
57315-95703

CM36,KM36,YM35..RHD..V4D

 1
57314 - OUTRIGGER, NO.2 LH
57316-95703

KM36..03S,05S;CM36,YM35..RHD;KM36..RHD..06S

 1
57315 - OUTRIGGER, NO.3 RH
57333-95701

CM36,KM36,37..GEN

 1
57315 - OUTRIGGER, NO.3 RH
57333-95701

CM36,KM36,37..GEN

 1
57316 - OUTRIGGER, NO.3 LH
57334-95701

CM36,KM36,37..GEN

 1
57316 - OUTRIGGER, NO.3 LH
57334-95701

CM36,KM36,37..GEN

 1
58345B - BRACKET, REAR FLOOR HEAT INSULATOR, NO.1
58345-95701

KM3#..GEN

 1
58345B - BRACKET, REAR FLOOR HEAT INSULATOR, NO.1
58345-95701

KM3#..GEN

 1
Common parts
57442-95700
90333-20001
90950-01266
90950-01398
91656-40818
Linked diagrams
4804
