KM36RV-JRSQ (1988)
Toyota Liteace
Production
Aug 1988
-
Jan 1992
Engine
5KC
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )CM36,KM3#

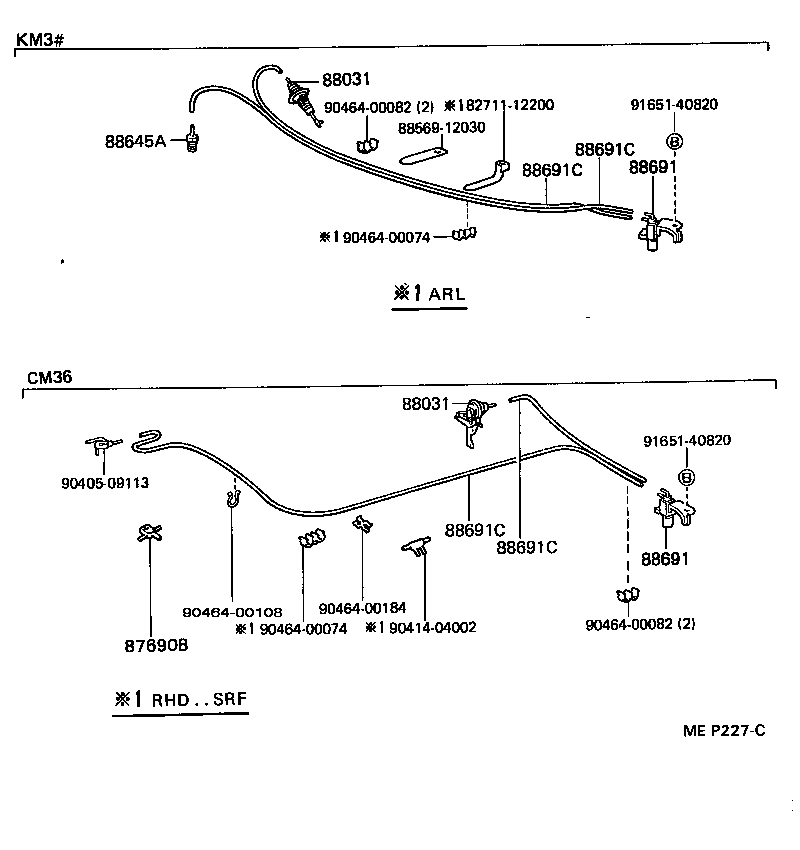

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-12081 |
KM36..ARL |
1 | ||
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-12081 |
KM36..ARL |
1 | ||
| 88645A - UNION (FOR IDLE UP DEVICE) | ||||
| 90404-51093 |
KM36..ARL |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88691-10010 |
CM36..MRF;CM36..LHD..4F;KM37,YM35..GEN;KM36..06S..ARL;KM36..SRF..(4H,5F) |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88691-10010 |
CM36..MRF;CM36..LHD..4F;KM37,YM35..GEN;KM36..06S..ARL;KM36..SRF..(4H,5F) |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92003 |
KM37;KM36..06S..ARL;KM36..SRF..(4H,5F) L=600 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92003 |
KM37;KM36..06S..ARL;KM36..SRF..(4H,5F) L=600 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92003 |
KM37;KM36..06S..ARL;KM36..SRF..(4H,5F) L=600 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 90999-92003 |
KM37;KM36..06S..ARL;KM36..SRF..(4H,5F) L=600 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88569-12030 | ||||
| 90405-09113 | ||||
| 90414-04002 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00108 | ||||
| 90464-00184 | ||||
| 91651-40820 | ||||
