KM36RV-JRSQ (1988)
Toyota Liteace

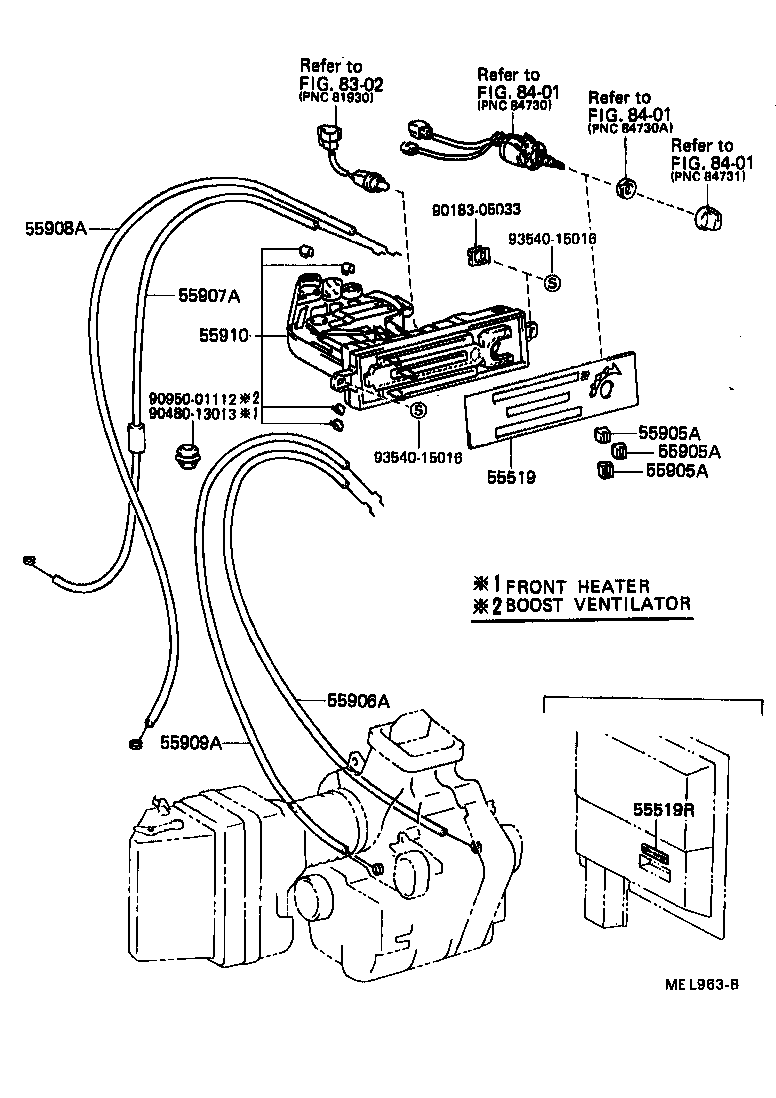

ILLUST NO. 1 OF 4(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-95722 |
CM36,KM36,YM35..ARL W(AIR CONDITIONER) |
1 | ||
| 55519-95719 |
CM36,KM36,YM30,35..ARL |
1 | ||
| 55519R - PLATE, HEATER CONTROL NAME | ||||
| 55519-95J05 |
KM36..06S..ARL |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-95707 |
CM36,KM3#,YM3# FRESH-RECIRC |
1 | ||
| 55905-95707 |
KM3#,YM3#;CM36..02S;CM36..(4F,5H)..05S FRESH-RECIRC |
1 | ||
| 55905-10110 |
CM36..5H;CM36..SRF;KM37,YM30,35;KM36..SRF..(4H,5F);CM36,KM36..MRF..ARL DEF-VENT,WARM-COOL |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-95707 |
CM36,KM3#,YM3# FRESH-RECIRC |
1 | ||
| 55905-95707 |
KM3#,YM3#;CM36..02S;CM36..(4F,5H)..05S FRESH-RECIRC |
1 | ||
| 55905-10110 |
CM36..5H;CM36..SRF;KM37,YM30,35;KM36..SRF..(4H,5F);CM36,KM36..MRF..ARL DEF-VENT,WARM-COOL |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-95707 |
CM36,KM3#,YM3# FRESH-RECIRC |
1 | ||
| 55905-95707 |
KM3#,YM3#;CM36..02S;CM36..(4F,5H)..05S FRESH-RECIRC |
1 | ||
| 55905-10110 |
CM36..5H;CM36..SRF;KM37,YM30,35;KM36..SRF..(4H,5F);CM36,KM36..MRF..ARL DEF-VENT,WARM-COOL |
2 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-95707 |
CM36,KM36,YM3#..RHD |
1 | ||
| 55906-95707 |
KM36,YM3#..RHD;CM36..RHD..02S;CM36..RHD..4F..05S |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-95709 |
YM30,35;CM36..RHD..SRF;CM36,KM36..MRF..ARL;KM36..RHD..SRF..(4H,5F) |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95706 |
KM3#,YM3#;CM36..02S;CM36..(4F,5H)..05S |
1 | ||
| 55908-95706 |
CM36,KM3#,YM3# |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-95703 |
YM30,35;CM36..RHD..SRF;CM36,KM36..MRF..ARL;KM36..RHD..SRF..(4H,5F) |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95719 |
CM36,KM36,YM30,35..ARL |
1 | ||
| Common parts | ||||
| 90183-05033 | ||||
| 90480-13013 | ||||
| 90950-01112 | ||||
| 93540-15016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||

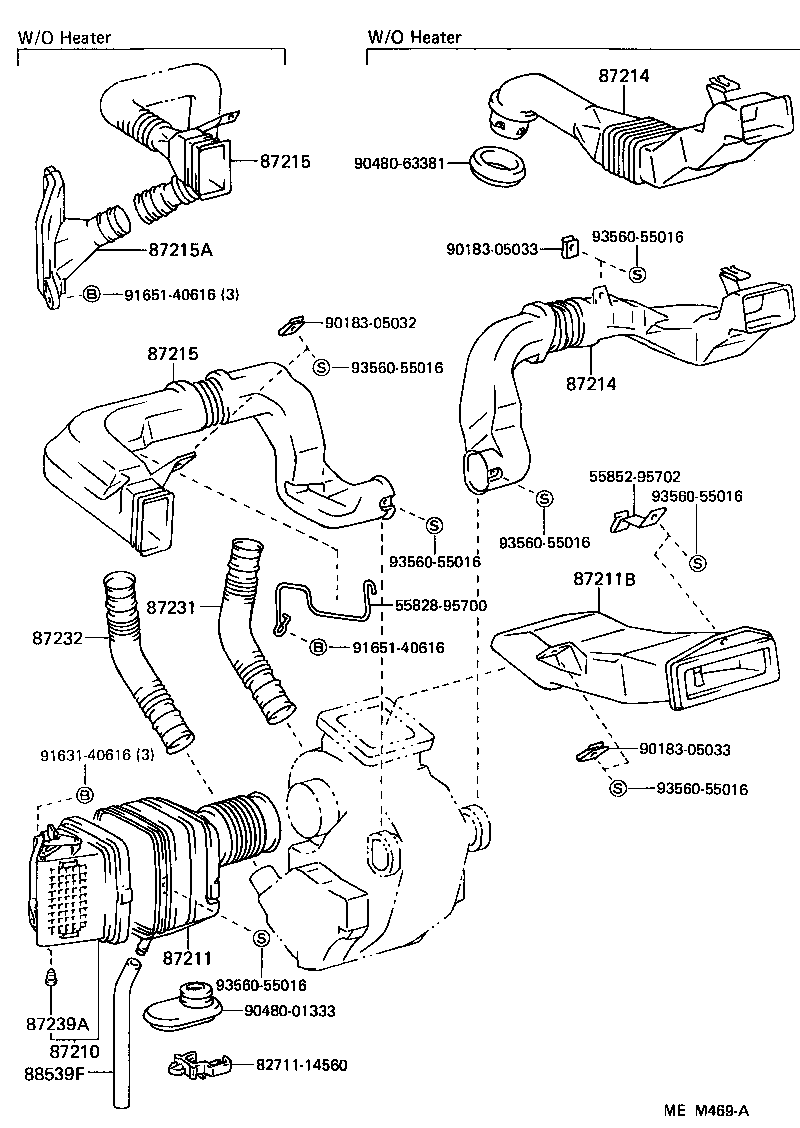

ILLUST NO. 2 OF 4(8808- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87210 - DAMPER ASSY, AIR | ||||
| 87210-95707 |
CM36,KM36,YM3#..RHD |
1 | ||
| 87210-95707 |
KM36,YM3#..RHD;CM36..RHD..02S;CM36..RHD..4F..05S |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-95715 |
KM36,YM3#..RHD;CM36..RHD..02S;CM36..RHD..4F..05S |
1 | ||
| 87211-95715 |
CM36,KM36,YM3#..RHD |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 55086-95701 |
CM36,KM36,YM3#..RHD |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55085-95703 |
KM36..4F;KM36,YM35..VSP..ARL;CM36,KM36,YM30,31..RHD..MRF |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55085-95703 |
KM36..4F;KM36,YM35..VSP..ARL;CM36,KM36,YM30,31..RHD..MRF |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55084-95703 |
KM36..4F;KM36,YM35..VSP..ARL;CM36,KM36,YM30,31..RHD..MRF |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55084-95703 |
KM36..4F;KM36,YM35..VSP..ARL;CM36,KM36,YM30,31..RHD..MRF |
1 | ||
| 87231 - HOSE, HEATER DEFROSTER, RH | ||||
| 87231-95702 |
CM36,KM3#,YM3# |
1 | ||
| 87231-95702 |
KM3#,YM3#;CM36..02S;CM36..(4F,5H)..05S |
1 | ||
| 87232 - HOSE, HEATER DEFROSTER, LH | ||||
| 87231-95702 |
CM36,KM3#,YM3# |
1 | ||
| 87231-95702 |
KM3#,YM3#;CM36..02S;CM36..(4F,5H)..05S |
1 | ||
| 87239A - COVER, HEATER INLET HOLE | ||||
| 87239-95700 |
KM3#,YM3#;CM36..02S;CM36..(4F,5H)..05S |
1 | ||
| 87239-95700 |
CM36,KM3#,YM3# |
1 | ||
| 88539F - HOSE, DRAIN | ||||
| 88539-95707 |
CM36,KM3#,YM3# |
1 | ||
| 88539-95707 |
KM3#,YM3#;CM36..02S;CM36..(4F,5H)..05S |
1 | ||
| Common parts | ||||
| 55828-95700 | ||||
| 55852-95702 | ||||
| 82711-14560 | ||||
| 90183-05032 | ||||
| 90183-05033 | ||||
| 90480-01333 | ||||
| 90480-63381 | ||||
| 91631-40616 | ||||
| 91651-40616 | ||||
| 93560-55016 | ||||
