KM36RV-JRSQ (1988)
Toyota Liteace
Production
Aug 1988
-
Jan 1992
Engine
5KC
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)

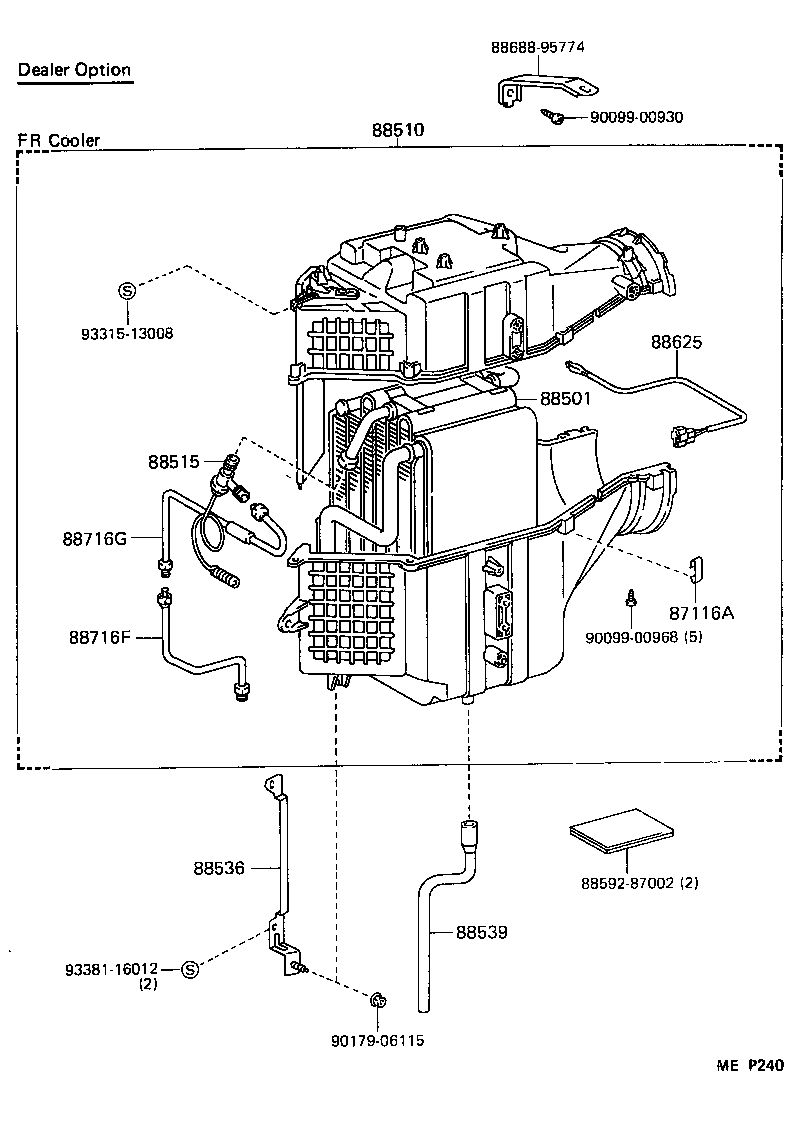

ILLUST NO. 1 OF 3(8808-9201)ARL
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
CM36,KM36,YM30,35..ARL |
5 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-95712 |
CM36,KM36,YM30,35..ARL FR |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95723 |
CM36,KM36,YM30,35..ARL FR |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-87004 |
CM36,KM36,YM30,35..ARL |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88688-95747 |
YM30,35;CM36..RHD..SRF;CM36,KM36..MRF..ARL;KM36..RHD..SRF..(4H,5F) |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-95709 |
KM36..LHD;KM36,YM35..ARL;CM36,KM37,YM30 FR |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12070 |
CM36,KM36,YM30,35..ARL FR |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-95753 |
CM36,KM36,YM30,35..ARL FR |
1 | ||
| 88716G - PIPE, COOLER REFRIGERANT LIQUID, G | ||||
| 88716-95752 |
CM36,KM36,YM30,35..ARL |
1 | ||
| Common parts | ||||
| 88592-87002 | ||||
| 88688-95774 | ||||
| 90099-00930 | ||||
| 90099-00968 | ||||
| 90179-06115 | ||||
| 93315-13008 | ||||
| 93381-16012 | ||||

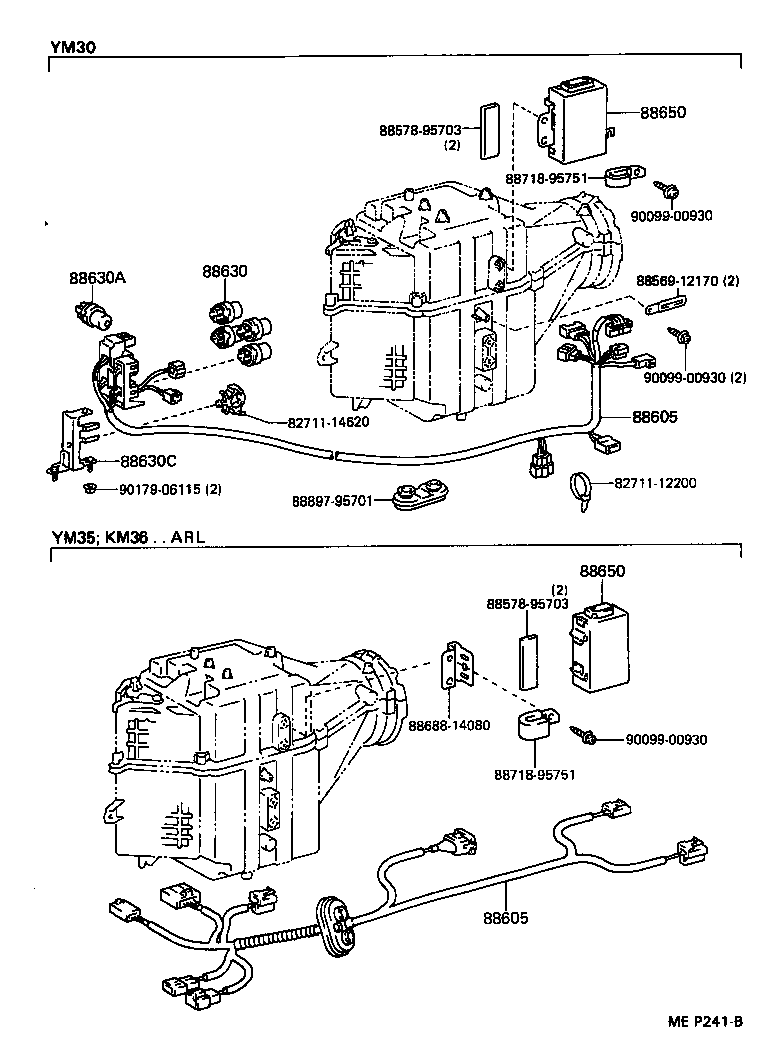

ILLUST NO. 2 OF 3(8808-9201)YM35 ; (8808-9201)KM36,YM30..ARL
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95728 |
YM35;KM36..06S..ARL;KM36..RHD..SRF..(4H,5F) |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95728 |
YM35;KM36..06S..ARL;KM36..RHD..SRF..(4H,5F) |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-87101 |
KM36,YM35..ARL |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-87101 |
KM36,YM35..ARL |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-14620 | ||||
| 88569-12170 | ||||
| 88578-95703 | ||||
| 88688-14080 | ||||
| 88718-95751 | ||||
| 88897-95701 | ||||
| 90099-00930 | ||||
| 90179-06115 | ||||
