KM36RV-JRSQ (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(8808- )

Click highlighted areas on diagram

diagram 8271112200 83710 83710 83770 8379195706 8379195706 8379195708 8379195708 8379195710 9046110632 9046708069 9046708069 9098901065 9161160814 9161160814 9161160814 9161160814 9161160814 9161160814 9161160814
Part # Description Qty Price
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-95715

KM36..RHD..(4F,4H)

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-95715

KM36..RHD..(4F,4H)

 1
Common parts
82711-12200
83791-95706
83791-95708
83791-95710
90461-10632
90467-08069
90989-01065
91611-60814

ILLUST NO. 3 OF 3(8808- )

Click highlighted areas on diagram

diagram 83910 9018305033 9356755016
Part # Description Qty Price
83910 - CLOCK ASSY
83910-95705

CM36,KM3#,YM3#

 1
83910-95705

YM35..ARL;CM36,KM3#,YM30

 1
Common parts
90183-05033
93567-55016

ILLUST NO. 1 OF 3(8808- )CM36,KM36,YM35..RHD

Click highlighted areas on diagram

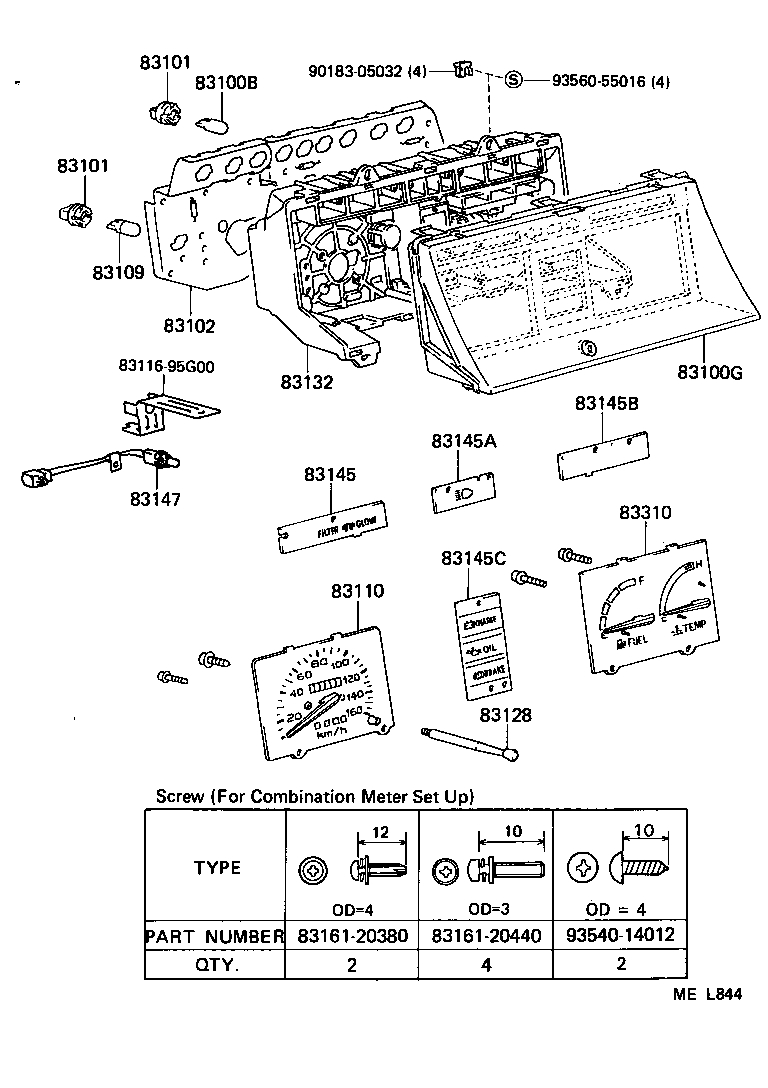

diagram 83100B 83100G 83101 83101 83102 83109 83110 8311695G00 83128 83132 83145 83145A 83145B 83145C 83147 8316120380 8316120440 83310 9018305032 9354014012 9356055016
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99132-12034

CM36..GEN;KM36,YM3#..(4FC,4H)..ARL

12V 3.4W

 8
83100G - GLASS, COMBINATION METER
83134-95706

CM36,KM36,YM35..RHD

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20040

CM36..GEN;KM36,YM3#..(4FC,4H)..ARL

12V 3.4W

 8
83101-20070

YM35..ARL;CM36,KM36,YM30..RHD

12V 3.4W,W/CAP

 4
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20040

CM36..GEN;KM36,YM3#..(4FC,4H)..ARL

12V 3.4W

 8
83101-20070

YM35..ARL;CM36,KM36,YM30..RHD

12V 3.4W,W/CAP

 4
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-95719

YM35;KM36..ARL

 1
83109 - BULB, COMBINATION METER, NO.2
83109-24030

YM35..ARL;CM36,KM36,YM30..RHD

12V3.4W W(GREEN CAP)

 4
83110 - SPEEDOMETER ASSY
83110-95719

KM36,YM35..ARL

 1
83128 - KNOB, TRIP COUNTER
83128-95J00

CM36,KM36,YM3#..RHD

 1
83132 - CASE, COMBINATION METER
83132-95J02

CM36,KM36,YM35..RHD

 1
83145 - LENS, METER, NO.1
83145-27360

KM36..ARL

 1
83145-95G03

KM36..ARL

 1
83145A - LENS, METER, NO.2
83145-95722

CM36,KM36,YM35..RHD

 1
83145B - LENS, METER, NO.3
83145-95740

CM36,KM36,YM35..MTM..ARL

 1
83145-27300

CM36,KM36,YM35..MTM..ARL

 1
83145C - LENS, METER, NO.4
83145-27420

CM36,KM36,YM35..ARL

 1
83145-95741

CM36,KM36,YM35..ARL

 1
83147 - LAMP, METER NO.1
83147-95G00

CM36,KM36,YM35..ARL

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-95711

CM36,KM36,YM35..ARL

 1
Common parts
83116-95G00
83161-20380
83161-20440
90183-05032
93540-14012
93560-55016
