KM36RV-JRSQ (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(8808- )

Click highlighted areas on diagram

diagram 8271110310 8271112200 8271112450 8271114560 8271114620 8271122270 8271124010 8271124070 8271130130 8271130380 8271130670 8271195410 8271195709 8271195710 8271195711 8271195712 8271195714 8271195715 8271195717 8271195727 8271195728 8271195J04 9046106156 9046304012 9046304035
Part # Description Qty Price
Common parts
82711-10310
82711-12200
82711-12450
82711-14560
82711-14620
82711-22270
82711-24010
82711-24070
82711-30130
82711-30380
82711-30670
82711-95410
82711-95709
82711-95710
82711-95711
82711-95712
82711-95714
82711-95715
82711-95717
82711-95727
82711-95728
82711-95J04
90461-06156
90463-04012
90463-04035

ILLUST NO. 3 OF 3(8808- )

Click highlighted areas on diagram

diagram 8271130260 8271195732 8271195734 8271195736 8271195738 8271528430 8271595701 8271887002 8281995707 8281995J02 9004464009 9046313003 9046315003 9046400052 9046400102 9046400137 9046400159 9046400161 9046400162 9046400166 9046400232 9046400262
Part # Description Qty Price
Common parts
82711-30260
82711-95732
82711-95734
82711-95736
82711-95738
82715-28430
82715-95701
82718-87002
82819-95707
82819-95J02
90044-64009
90463-13003
90463-15003
90464-00052
90464-00102
90464-00137
90464-00159
90464-00161
90464-00162
90464-00166
90464-00232
90464-00262

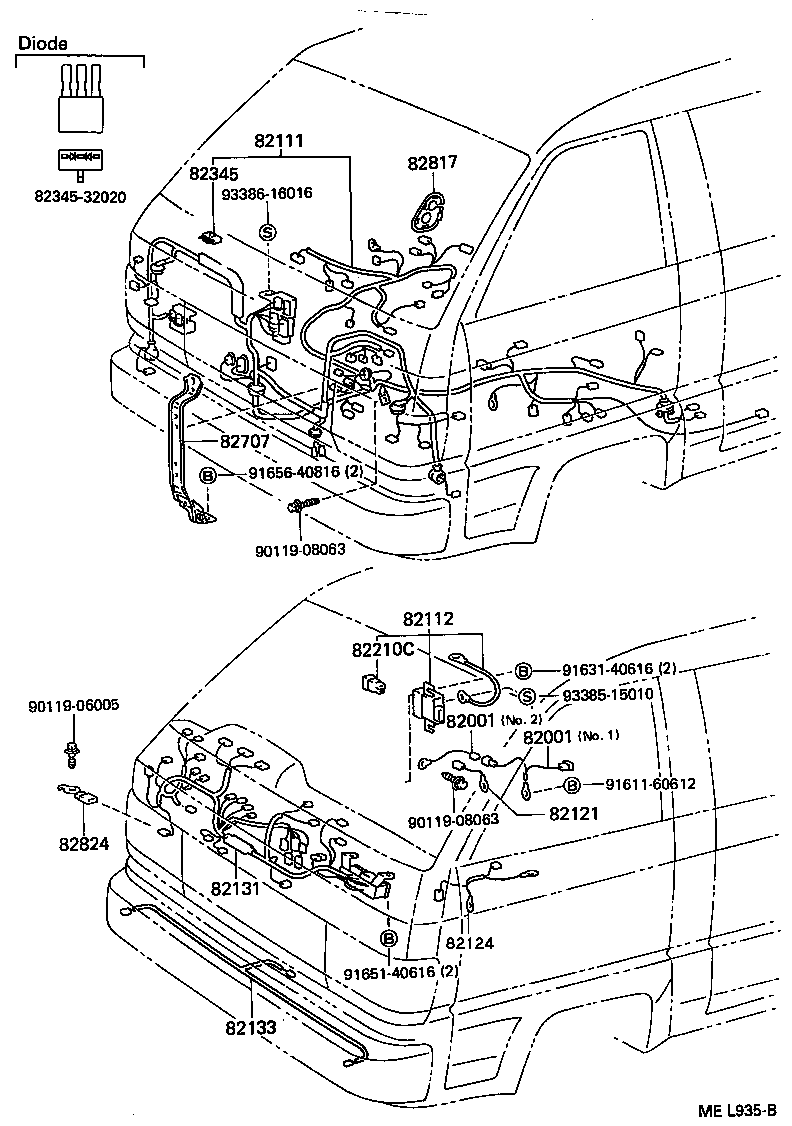

ILLUST NO. 1 OF 3(8808- )KM36..RHD

Click highlighted areas on diagram

diagram 82001 82001 82111 82112 82121 82124 82131 82133 82210C 82345 8234532020 82707 82817 82824 9011906005 9011908063 9011908063 9161160612 9163140616 9165140616 9165640816 9338515010 9338616016
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07259

KM36..RHD..SRF;KM36..06S..ARL

NO.2

 1
90980-07261

KM30;KM36..RHD..SRF;KM36..06S..ARL

NO.1

 1
82001 - CABLE, BOND, NO.1
90980-07259

KM36..RHD..SRF;KM36..06S..ARL

NO.2

 1
90980-07261

KM30;KM36..RHD..SRF;KM36..06S..ARL

NO.1

 1
82111 - WIRE, ENGINE ROOM MAIN
82111-95T57

KM36..ARL

 1
82111-27590

KM36..ARL

 1
82112 - WIRE, ENGINE ROOM, NO.2
82112-95714

KM36..RHD

 1
82124 - WIRE, ENGINE, NO.4
82124-95701

KM36..ARL

 1
82131 - WIRE, COWL
82131-95T37

KM36..ARL

 1
82131-27400

KM36..ARL

 1
82210C - FUSIBLE LINK
90982-08188

CM36,KM36,YM3#..RHD

30A,TERM.:FEMALE,PNK

 1
90982-08189

CM36,KM3#,YM3#

40A,TERM.:FEMALE,GRN

 1
90982-08202

CM36;KM36..RHD

60A,TERM.:MALE,YEL

 1
82707 - SUPPORT SUB-ASSY, WIRING HARNESS
82701-95700

CM36,KM36,YM3#..RHD

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-95703

CM36,KM3#,YM3#

 1
82824 - CONNECTOR, WIRING HARNESS
82824-12100

CM36,KM36,YM3#..RHD

 1
Common parts
82345-32020
90119-06005
90119-08063
91611-60612
91631-40616
91651-40616
91656-40816
93385-15010
93386-16016

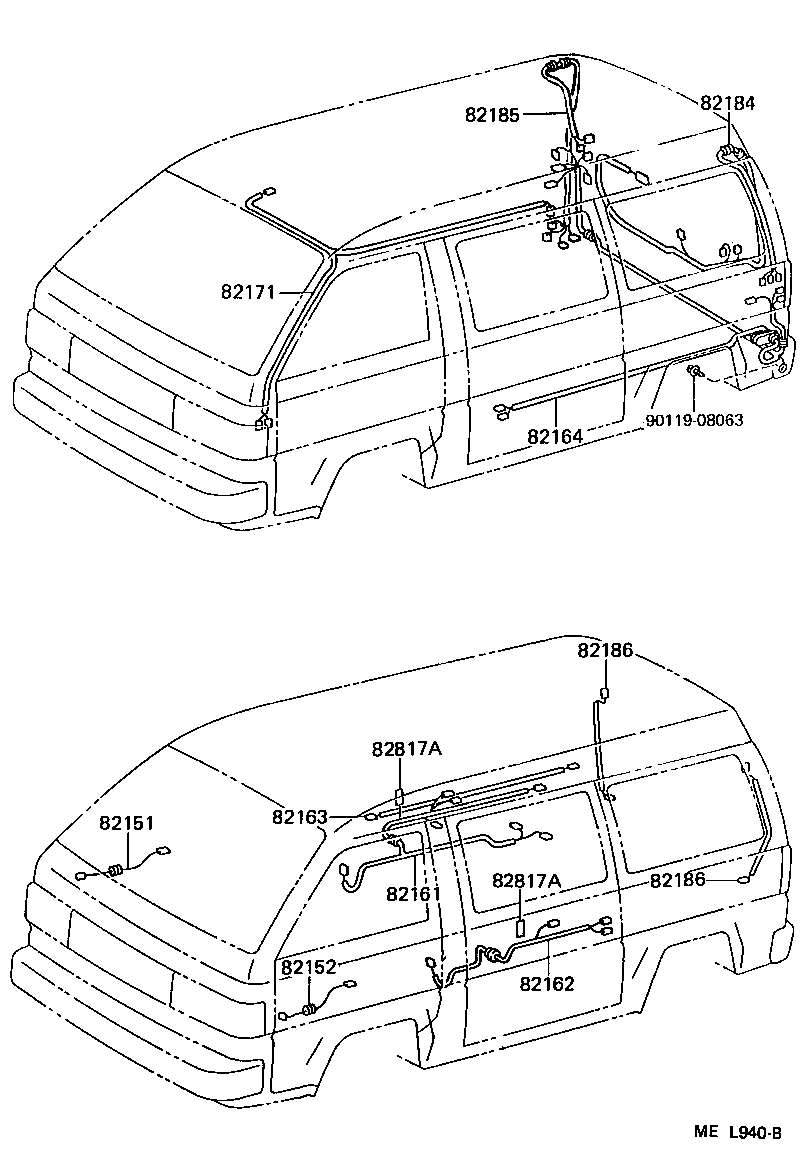

ILLUST NO. 2 OF 3(8808- )

Click highlighted areas on diagram

diagram 82151 82152 82161 82162 82163 82164 82171 82184 82185 82186 82186 82817A 82817A 9011908063
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-95702

CM36..5H;CM36,KM36..SRF;KM30,37,YM30,35;CM36,KM36..MRF..ARL

 1
82152 - WIRE, FRONT DOOR, LH
82152-95700

CM36..5H;CM36,KM36..SRF;KM30,37,YM30,35;CM36,KM36..MRF..ARL

 1
82161 - WIRE, FLOOR
82161-95702

KM36..06S..ARL

W(RR HEATER-BUILD IN TYPE)

 1
82161-95705

CM36,KM36,YM30,35..RHD..V4D

 1
82164 - WIRE, FRAME
82164-95760

KM36..06S..ARL

 1
82171 - WIRE, ROOF, NO.1
82171-95702

CM36,KM3#,YM3#..VSG..MRF

 1
82184 - WIRE, BACK DOOR, NO.1
82184-95724

KM36,YM30..MRF..ARL

 1
82186 - WIRE, REAR WINDOW, NO.1
82186-95703

CM36..5H;CM36..SRF;KM30,37,YM3#;KM36..SRF..(4H,5F);CM36,KM36..MRF..ARL

 2
82186 - WIRE, REAR WINDOW, NO.1
82186-95703

CM36..5H;CM36..SRF;KM30,37,YM3#;KM36..SRF..(4H,5F);CM36,KM36..MRF..ARL

 2
82817A - PROTECTOR, WIRING HARNESS, NO.2
63249-95700

KM36..06S..ARL

 2
82817A - PROTECTOR, WIRING HARNESS, NO.2
63249-95700

KM36..06S..ARL

 2
Common parts
90119-08063
