KM36RV-JRSQ (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )KM36..4H,5F ; (8808- )CM36,KM30,37,YM35

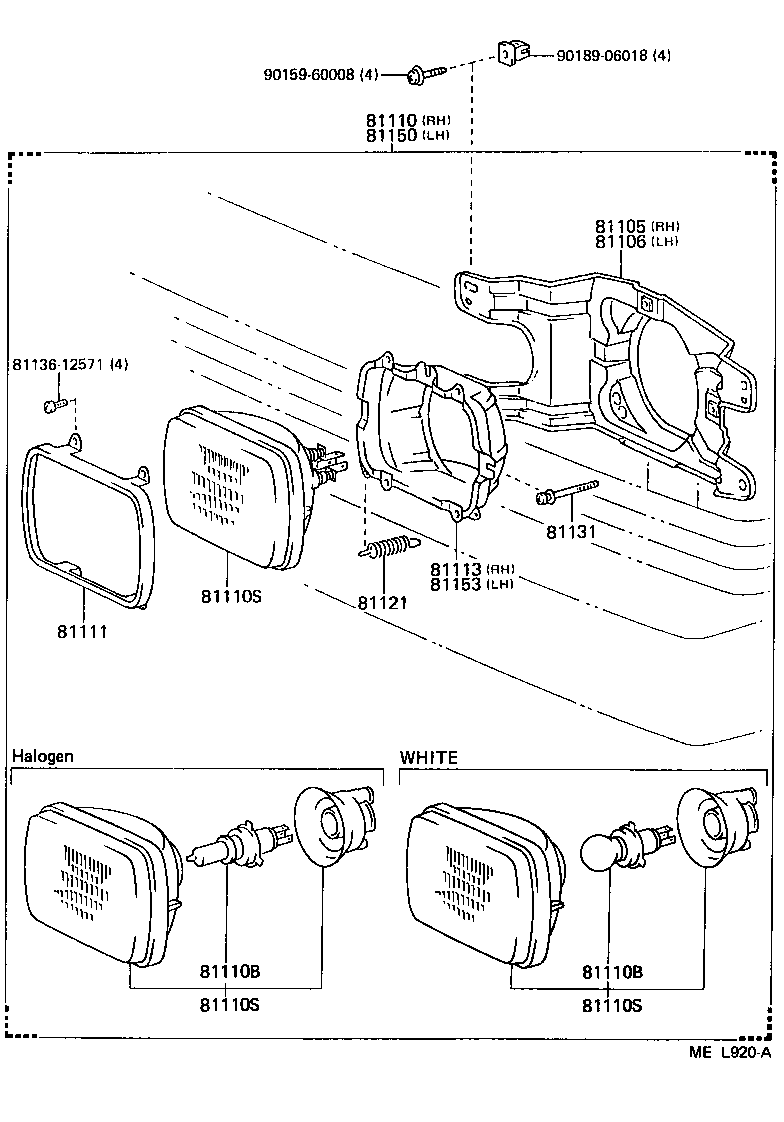

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81110B 81110S 81110S 81110S 81111 81113 81121 81131 8113612571 81150 81153 9015960008 9018906018
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-95728

CM36..5H;CM36..SRF;KM37,YM35;KM36..SRF..(4H,5F);CM36,KM36..MRF..ARL

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-95728

CM36..5H;CM36..SRF;KM37,YM35;KM36..SRF..(4H,5F);CM36,KM36..MRF..ARL

 1
81110 - HEADLAMP ASSY, RH
81110-95728

CM36,KM36,YM35..ARL

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

YM35;CM36,KM36,YM30..ARL

12V 60/55W,*HAL *WH

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

YM35;CM36,KM36,YM30..ARL

12V 60/55W,*HAL *WH

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04027

CM36,KM36,YM35..ARL

12V 60/55W,*HWS

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04027

CM36,KM36,YM35..ARL

12V 60/55W,*HWS

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04027

CM36,KM36,YM35..ARL

12V 60/55W,*HWS

 2
81111 - RING, SEALED BEAM RETAINING
81111-16020

CM36..5H;CM36..SRF;KM37,YM35;KM36..SRF..(4H,5F);CM36,KM36..MRF..ARL

 2
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-16220

CM36..5H;CM36..SRF;KM37,YM35;KM36..SRF..(4H,5F);CM36,KM36..MRF..ARL

 1
81121 - SPRING, HEADLAMP TENSION
81121-16020

CM36..5H;CM36..SRF;KM37,YM35;KM36..SRF..(4H,5F);CM36,KM36..MRF..ARL

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-10031

CM36..5H;CM36..SRF;KM37,YM35;KM36..SRF..(4H,5F);CM36,KM36..MRF..ARL

 4
81150 - HEADLAMP ASSY, LH
81150-95728

CM36,KM36,YM35..ARL

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-16220

CM36..5H;CM36..SRF;KM37,YM35;KM36..SRF..(4H,5F);CM36,KM36..MRF..ARL

 1
Common parts
81136-12571
90159-60008
90189-06018
