KM36RV-JRSQ (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

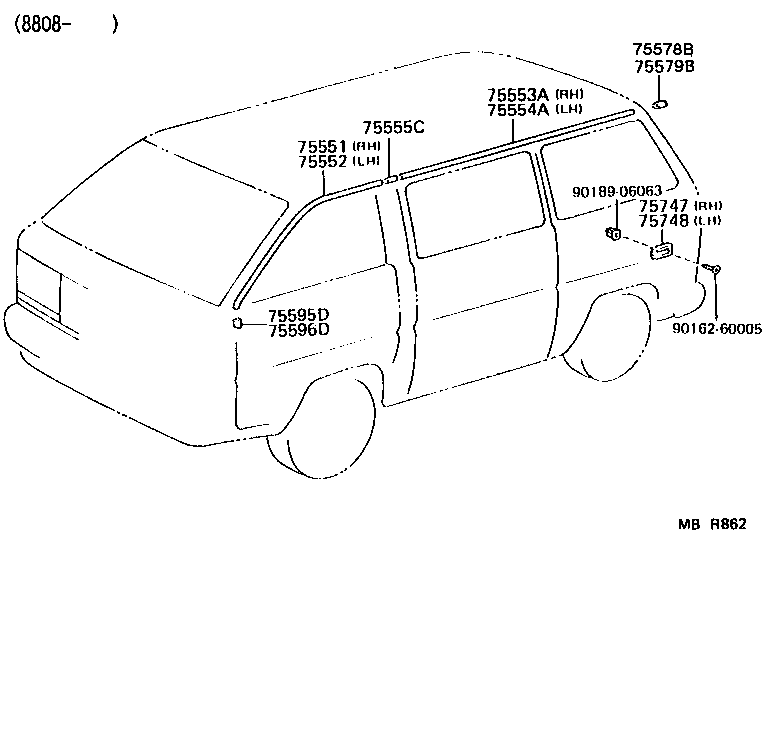

Click highlighted areas on diagram

diagram 75551 75552 75553A 75554A 75555C 75578B 75579B 75595D 75596D 75747 75748 9016260005 9018906063
Part # Description Qty Price
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-95702

CM36,KM3#,YM35..GEN;KM36,YM30..MRF..ARL

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-95702

CM36,KM3#,YM35..GEN;KM36,YM30..MRF..ARL

 1
75553A - MOULDING, ROOF DRIP SIDE FINISH, REAR RH
75553-95702

CM36,KM3#,YM35..GEN;KM36,YM30..MRF..ARL

 1
75554A - MOULDING, ROOF DRIP SIDE FINISH, REAR LH
75554-95702

CM36,KM3#,YM35..GEN;KM36,YM30..MRF..ARL

 1
75555C - CONNECTOR, ROOF DRIP MOULDING
75555-95701

CM36,KM3#,YM35..GEN;KM36,YM30..MRF..ARL

 2
75748 - MOULDING, SLIDE DOOR END, LH
75748-95J00

KM36..03S,05S;CM36,YM3#..RHD;KM36..RHD..06S

 1
Common parts
90162-60005
90189-06063
