KM36RV-JRSQ (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

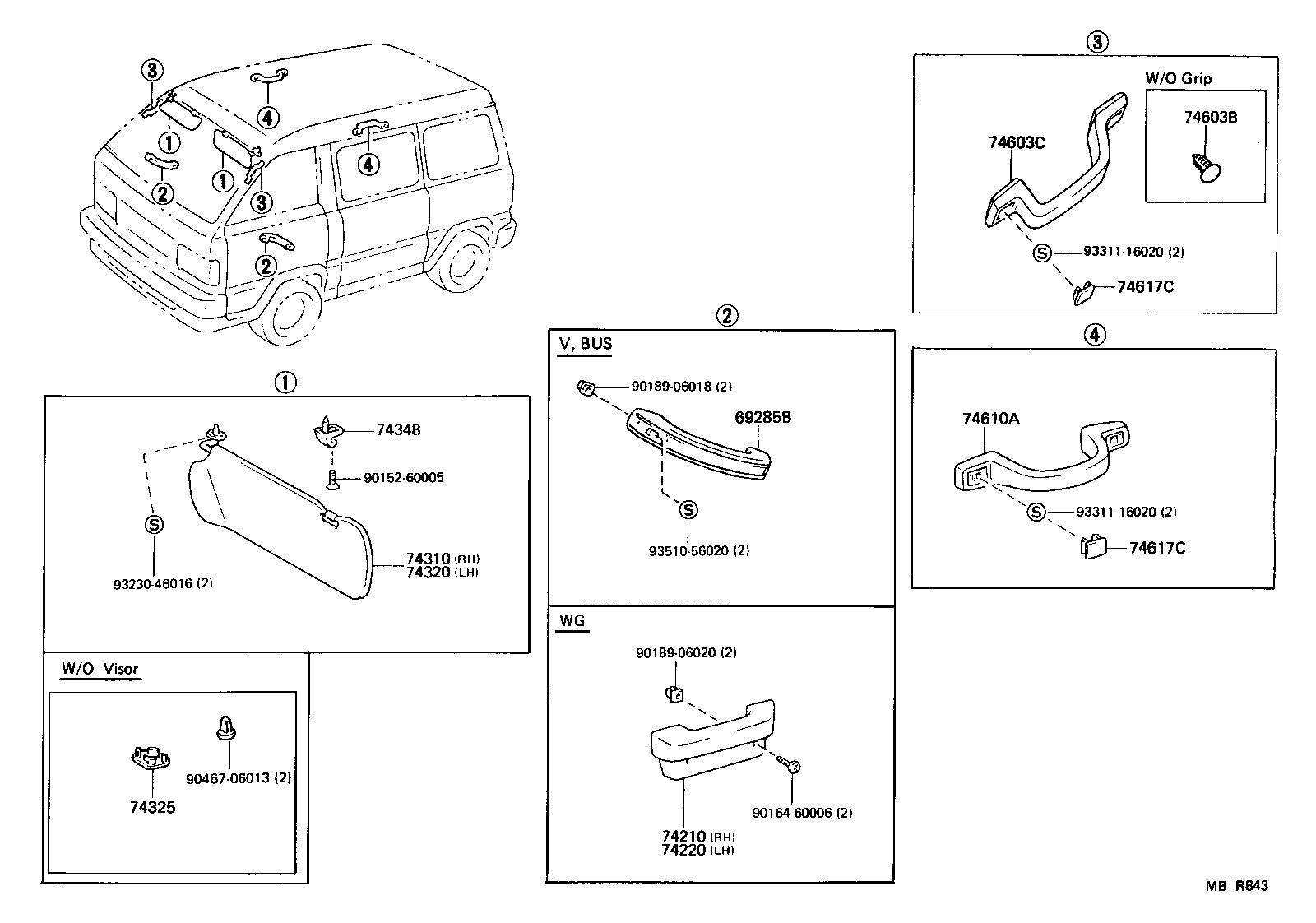

Click highlighted areas on diagram

diagram 69285B 74210 74220 74310 74320 74325 74348 74603B 74603C 74610A 74617C 74617C 9015260005 9016460006 9018906018 9018906020 9046706013 9323046016 9331116020 9331116020 9351056020
Part # Description Qty Price
69285B - HANDLE, PULL
69285-9570003

CM36,KM36,37,YM35

GRAY,TRIM1#

 2
74310 - VISOR ASSY, RH
74310-9571713

CM36,KM36,YM35..ARL

GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-9570813

CM36,KM36,YM35..ARL

GRAY,TRIM1#

 1
74348 - HOLDER, VISOR
74348-3201003

KM36..4F;KM36,YM35..VSP..ARL;CM36,KM30,36,YM30..MRF..(4FC,4H,5F)

LIGHT GRAY,TRIM1#

 2
74603C - GRIP SUB-ASSY, ASSIST
74603-9570203

KM36..4F;CM36,KM30,36,YM30,31..VSG..MRF..(4FC,4H,5F)

GRAY,TRIM1#

 2
74617C - PLUG, ASSIST GRIP
74617-1601033

KM36..06S..ARL

SHADOW GRAY,TRIM1#

 4
74617-16010P3

KM36..06S..ARL

GRAY,TRIM1#

 4
74617C - PLUG, ASSIST GRIP
74617-1601033

KM36..06S..ARL

SHADOW GRAY,TRIM1#

 4
74617-16010P3

KM36..06S..ARL

GRAY,TRIM1#

 4
Common parts
90152-60005
90164-60006
90189-06018
90189-06020
90467-06013
93230-46016
93311-16020
93510-56020
