KM36RV-JRSQ (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

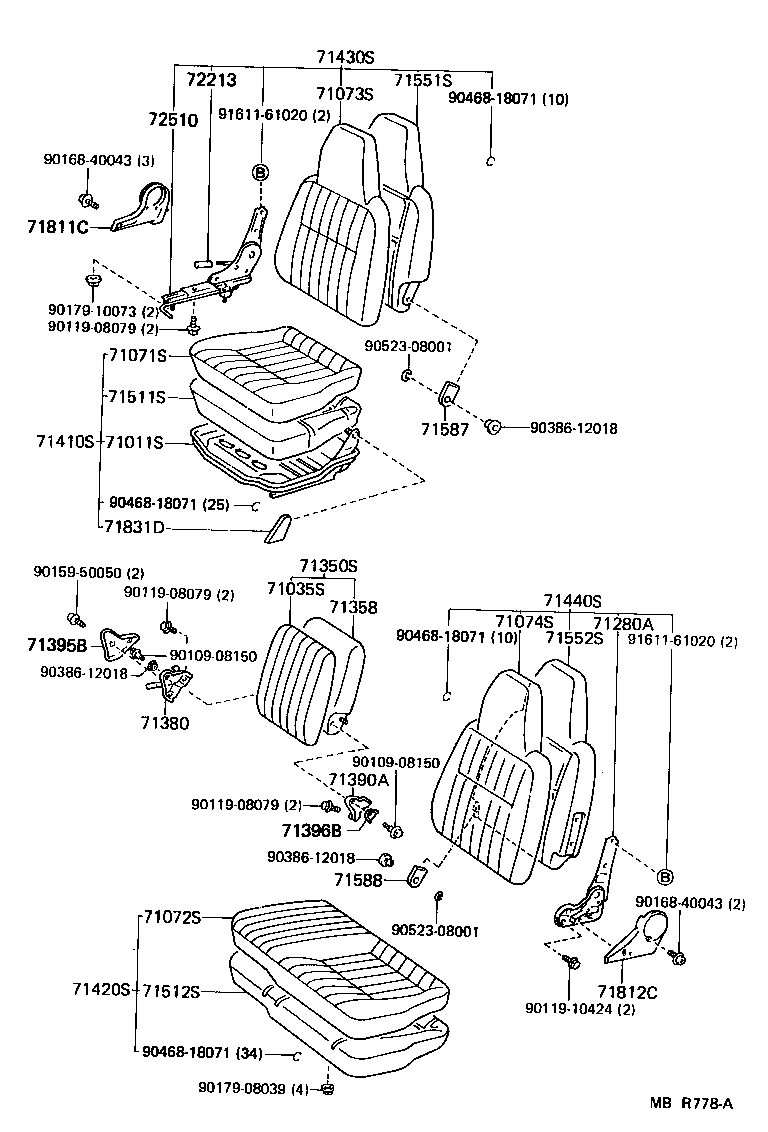

ILLUST NO. 1 OF 2(8808-9201)RHD..4H

Click highlighted areas on diagram

diagram 71011S 71035S 71071S 71072S 71073S 71074S 71280A 71350S 71358 71380 71390A 71395B 71396B 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71587 71588 71811C 71812C 71831D 72213 72510 9010908150 9010908150 9011908079 9011908079 9011908079 9011910424 9015950050 9016840043 9016840043 9017908039 9017910073 9038612018 9038612018 9038612018 9046818071 9046818071 9046818071 9046818071 9052308001 9052308001 9161161020 9161161020
Part # Description Qty Price
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-95706

CM36,KM3#,YM3#

 1
71035S - COVER, FRONT SEAT BACK, CENTER
71095-9570803

KM36..ARL

W(FABRIC SEAT),GRAY,TRIM1#

 1
71095-9570803

KM36..ARL;KM37..MRF

W(FABRIC SEAT),GRAY,TRIM1#

 1
71095-9571103

KM37;KM36..ARL

GRAY,TRIM1#

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-9572103

CM36,KM36,YM35..ARL

W(FABRIC SEAT),GRAY,TRIM1#

 1
71071-9574103

KM37,YM35;CM36,KM36..ARL

GRAY,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-9574303

KM36..ARL

W(FABRIC SEAT),GRAY,TRIM1#

 1
71072-9576203

KM36..ARL

GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-9573203

KM36..ARL

W(FABRIC SEAT),GRAY,TRIM1#

 1
71073-9573203

KM36..ARL;KM37..MRF

W(FABRIC SEAT),GRAY,TRIM1#

 1
71073-9574403

KM37,YM35;CM36,KM36..ARL

GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-9573903

KM36..ARL

W(FABRIC SEAT),GRAY,TRIM1#

 1
71074-9575103

YM35;CM36,KM36..ARL

GRAY,TRIM1#

 1
71280A - HINGE ASSY, FRONT SEAT BACK, LH
71320-9570101

YM35;CM36,KM36..RHD..SRF;CM36,KM36..MRF..ARL

BLACK,TRIM1#

 1
71350S - BACK ASSY, FRONT SEAT, CENTER
71350-9572603

KM36..ARL;KM37..MRF

***,W(FABRIC SEAT),GRAY,TRIM1#

 1
71350-9572603

KM36..ARL

***,W(FABRIC SEAT),GRAY,TRIM1#

 1
71350-9572903

KM37;KM36..ARL

***,GRAY,TRIM1#

 1
71358 - PAD, CENTER SEAT BACK
71033-95701

KM36,37..4H

 1
71380 - HINGE ASSY, CENTER SEAT, RH
71380-9570013

KM36,37..4H

GRAY,TRIM1#

 1
71390A - HINGE ASSY, CENTER SEAT, LH
71378-9570413

KM36,37..4H

GRAY,TRIM1#

 1
71395B - COVER, CENTER SEAT HINGE, RH
71395-9570113

KM36,37..4H

GRAY,TRIM1#

 1
71396B - COVER, CENTER SEAT HINGE, LH
71396-9570413

KM36,37..4H

GRAY,TRIM1#

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-9577303

CM36,KM36,YM35..ARL

***,W(FABRIC SEAT),GRAY,TRIM1#

 1
71410-95G0303

KM37,YM35;CM36,KM36..ARL

***,GRAY,TRIM1#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-9575903

KM36..ARL

***,GRAY,TRIM1#

 1
71420-9574003

KM36..ARL

***,W(FABRIC SEAT),GRAY,TRIM1#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-9574003

KM36..ARL;KM37..MRF

***,W(FABRIC SEAT),GRAY,TRIM1#

 1
71430-9574003

KM36..ARL

***,W(FABRIC SEAT),GRAY,TRIM1#

 1
71430-9575203

KM37,YM35;CM36,KM36..ARL

***,GRAY,TRIM1#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-9574603

KM36..ARL

***,W(FABRIC SEAT),GRAY,TRIM1#

 1
71440-9576003

YM35;CM36,KM36..ARL

***,GRAY,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95701

CM36..5H;KM30,37,YM3#;CM36,KM36..SRF;CM36,KM36..MRF..ARL

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-95712

KM36..RHD..4H

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71505-95702

CM36..5H;KM37,YM35;CM36,KM36..SRF;CM36,KM36..MRF..ARL

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71506-95702

YM35;CM36,KM36..RHD..SRF;CM36,KM36..MRF..ARL

 1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71588-9570013

CM36,KM3#,YM3#

GRAY,TRIM1#

 1
71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2
71588-9570013

CM36,KM3#,YM3#

GRAY,TRIM1#

 1
71811C - COVER, RECLINING ADJUSTER, RH
71801-9570003

CM36,KM3#,YM3#

GRAY,TRIM1#

 1
71812C - COVER, RECLINING ADJUSTER, LH
71812-9570003

YM35;CM36,KM36..RHD..SRF;CM36,KM36..MRF..ARL

GRAY,TRIM1#

 1
71831D - COVER, FRONT SEAT HINGE, RH
71831-9570013

CM36,KM3#,YM3#

GRAY,TRIM1#

 1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-9570803

CM36,KM3#,YM30,35

GRAY,TRIM1#

 1
Common parts
90109-08150
90119-08079
90119-10424
90159-50050
90168-40043
90179-08039
90179-10073
90386-12018
90468-18071
90523-08001
91611-61020

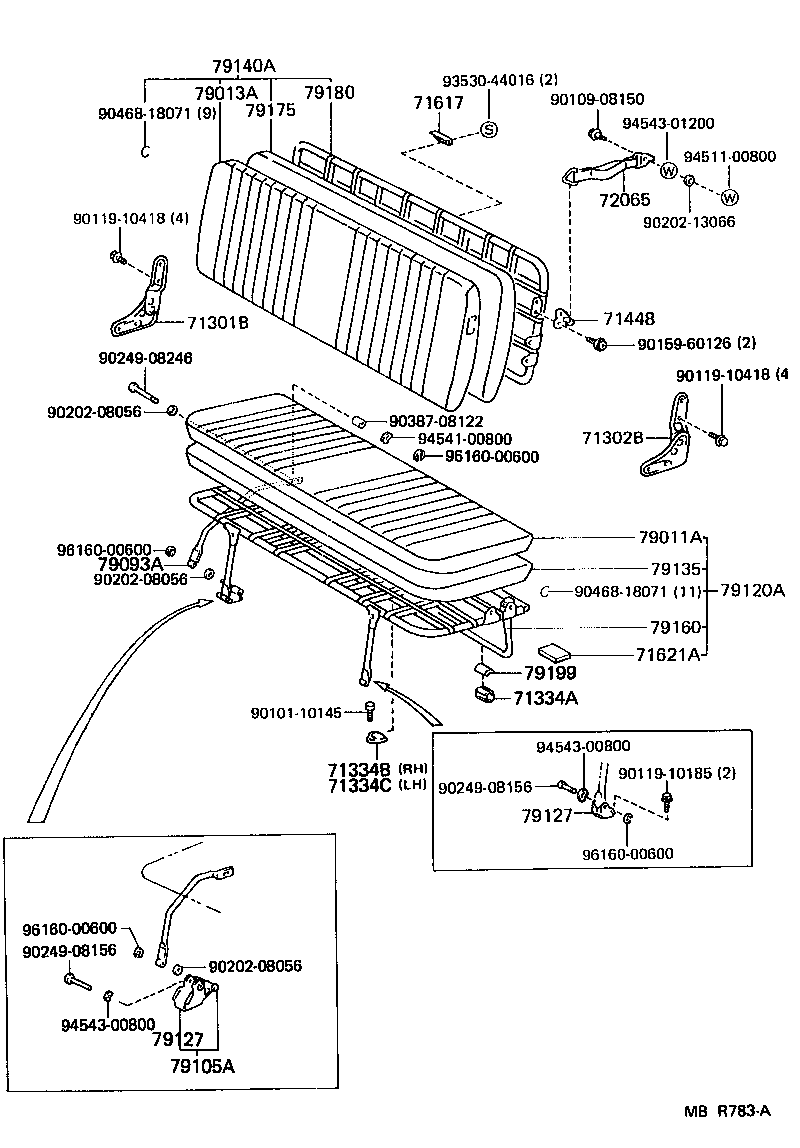

ILLUST NO. 2 OF 2(8808-9212)CM36,KM36,YM31..GEN ; (9212- )CM36,KM36,YM35

Click highlighted areas on diagram

diagram 71301B 71302B 71334A 71334B 71334C 71448 71617 71621A 72065 79011A 79013A 79093A 79105A 79120A 79127 79127 79135 79140A 79160 79175 79180 79199 9010110145 9010908150 9011910185 9011910418 9011910418 9015960126 9020208056 9020208056 9020208056 9020213066 9024908156 9024908156 9024908246 9038708122 9046818071 9046818071 9353044016 9451100800 9454100800 9454300800 9454300800 9454301200 9616000600 9616000600 9616000600 9616000600
Part # Description Qty Price
79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION
79011-9573503

KM36..06S..ARL

GRAY,TRIM1#

 1
79011-9573403

KM36..06S..ARL

W(FABRIC SEAT),GRAY,TRIM1#

 1
79013A - COVER SUB-ASSY, NO.1 SEAT BACK
79013-9571903

YM35..GEN;KM36..06S..ARL

W(FABRIC SEAT),GRAY,TRIM1#

 1
79013-9572603

YM35..GEN;KM36..06S..ARL

GRAY,TRIM1#

 1
79120A - CUSHION ASSY, NO.1 SEAT
79120-9573803

KM36..06S..ARL

***,GRAY,TRIM1#

 1
79120-9573703

KM36..06S..ARL

***,W(FABRIC SEAT),GRAY,TRIM1#

 1
79135 - PAD, NO.1 SEAT CUSHION
79135-95704

YM35..GEN;KM36..06S..ARL

 1
79140A - BACK ASSY, NO.1 SEAT
79140-9572203

YM35..GEN;KM36..06S..ARL

***,W(FABRIC SEAT),GRAY,TRIM1#

 1
79140-9572903

YM35..GEN;KM36..06S..ARL

***,GRAY,TRIM1#

 1
79160 - SPRING ASSY, NO.1 SEAT CUSHION
79160-9570701

YM35..GEN;KM36..06S..ARL

BLACK,TRIM1#

 1
79175 - PAD, NO.1 SEAT BACK
79175-95700

YM35..GEN;KM36..06S..ARL

 1
79180 - SPRING ASSY, NO.1 SEAT BACK
79180-95705

YM35..GEN;KM36..06S..ARL

 1
Common parts
90101-10145
90109-08150
90119-10185
90119-10418
90159-60126
90202-08056
90202-13066
90249-08156
90249-08246
90387-08122
90468-18071
93530-44016
94511-00800
94541-00800
94543-00800
94543-01200
96160-00600

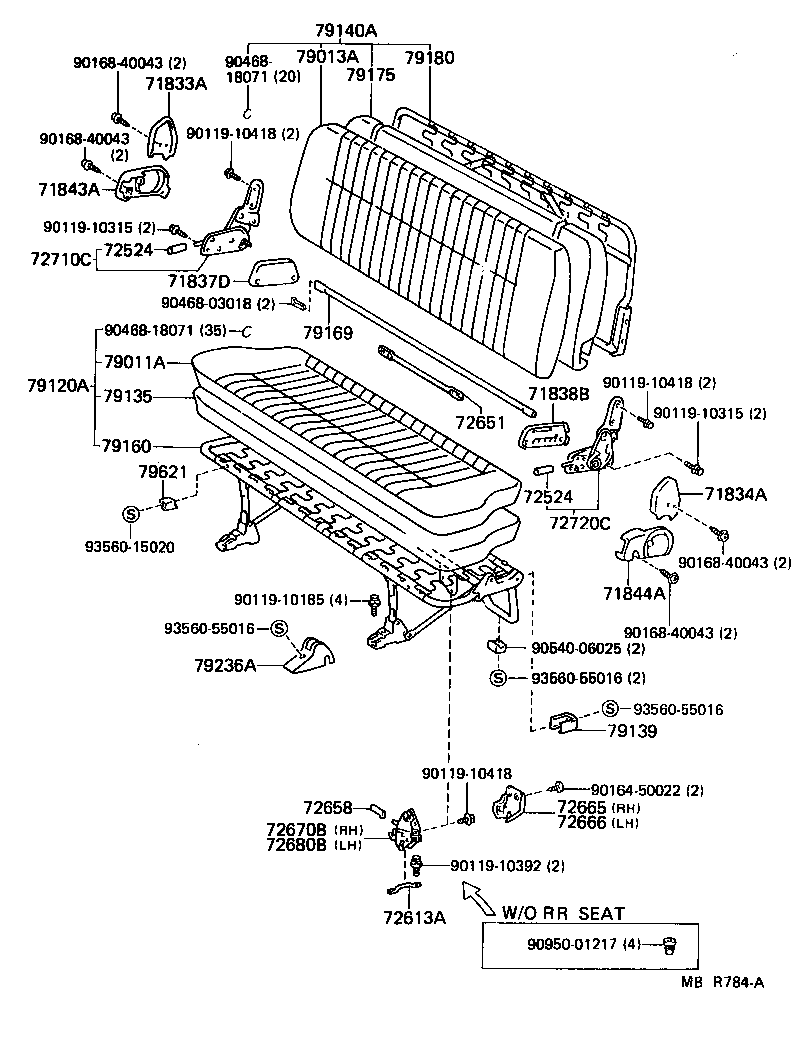

ILLUST NO. 2 OF 2(8808- )KM36..MRF ; (8905- )YM35..GEN

Click highlighted areas on diagram

diagram 71833A 71834A 71837D 71838B 71843A 71844A 72524 72524 72613A 72651 72658 72665 72666 72670B 72680B 72710C 72720C 79011A 79013A 79120A 79135 79139 79140A 79160 79169 79175 79180 79236A 79621 9011910185 9011910315 9011910315 9011910392 9011910418 9011910418 9011910418 9016450022 9016840043 9016840043 9016840043 9016840043 9046803018 9046818071 9046818071 9054006025 9095001217 9356015020 9356055016 9356055016 9356055016
Part # Description Qty Price
71833A - COVER, REAR SEAT RECLINING, NO.1 RH
71833-9570203

YM35..GEN;KM36..06S..ARL

GRAY,TRIM1#

 1
71834A - COVER, REAR SEAT RECLINING, NO.1 LH
71834-9570103

YM35..GEN;KM36..06S..ARL

GRAY,TRIM1#

 1
71837D - COVER, REAR SEAT RECLINING, INNER RH
72708-95J0003

YM35..GEN;KM36..06S..ARL

GRAY,TRIM1#

 1
71838B - COVER, REAR SEAT RECLINING, INNER LH
72709-95J0003

YM35..GEN;KM36..06S..ARL

GRAY,TRIM1#

 1
71843A - COVER, REAR SEAT RECLINING, NO.2 RH
71843-9570003

YM35..GEN;KM36..06S..ARL

GRAY,TRIM1#

 1
71844A - COVER, REAR SEAT RECLINING, NO.2 LH
71844-9570003

YM35..GEN;KM36..06S..ARL

GRAY,TRIM1#

 1
72524 - HANDLE, RECLINING ADJUSTER RELEASE
72525-95J0003

YM35..GEN;KM36..06S..ARL

SHADOW GRAY,TRIM1#

 2
72524 - HANDLE, RECLINING ADJUSTER RELEASE
72525-95J0003

YM35..GEN;KM36..06S..ARL

SHADOW GRAY,TRIM1#

 2
72613A - STRIKER, FRONT SEAT LOCK
72613-95703

YM35..GEN;KM36..06S..ARL

 2
72658 - KNOB, REAR SEAT HANDLE
72658-9570103

KM36..06S..ARL

GRAY,TRIM1#

 2
72665 - COVER, REAR SEAT BACK LOCK, RH
72665-9570403

KM36..06S..ARL

GRAY,TRIM1#

 1
72666 - COVER, REAR SEAT BACK LOCK, LH
72665-9570403

YM35..GEN;KM36..06S..ARL

GRAY,TRIM1#

 1
72670B - LOCK ASSY, REAR SEAT CUSHION, RH
72670-95700

KM36..06S..ARL

 1
72680B - LOCK ASSY, REAR SEAT CUSHION, LH
72670-95700

KM36..06S..ARL

 1
72710C - ADJUSTER ASSY, NO.1 SEAT RECLINING, RH
72730-9570203

YM35..GEN;KM36..06S..ARL

GRAY,TRIM1#

 1
72720C - ADJUSTER ASSY, NO.1 SEAT RECLINING, LH
72740-9570103

YM35..GEN;KM36..06S..ARL

GRAY,TRIM1#

 1
79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION
79011-9573503

KM36..06S..ARL

GRAY,TRIM1#

 1
79011-9573403

KM36..06S..ARL

W(FABRIC SEAT),GRAY,TRIM1#

 1
79013A - COVER SUB-ASSY, NO.1 SEAT BACK
79013-9571903

YM35..GEN;KM36..06S..ARL

W(FABRIC SEAT),GRAY,TRIM1#

 1
79013-9572603

YM35..GEN;KM36..06S..ARL

GRAY,TRIM1#

 1
79120A - CUSHION ASSY, NO.1 SEAT
79120-9573803

KM36..06S..ARL

***,GRAY,TRIM1#

 1
79120-9573703

KM36..06S..ARL

***,W(FABRIC SEAT),GRAY,TRIM1#

 1
79135 - PAD, NO.1 SEAT CUSHION
79135-95704

YM35..GEN;KM36..06S..ARL

 1
79139 - COVER, REAR SEAT LEG
79139-9570203

YM35..GEN;KM36..06S..ARL

GRAY,TRIM1#

 2
79140A - BACK ASSY, NO.1 SEAT
79140-9572203

YM35..GEN;KM36..06S..ARL

***,W(FABRIC SEAT),GRAY,TRIM1#

 1
79140-9572903

YM35..GEN;KM36..06S..ARL

***,GRAY,TRIM1#

 1
79160 - SPRING ASSY, NO.1 SEAT CUSHION
79160-9570701

YM35..GEN;KM36..06S..ARL

BLACK,TRIM1#

 1
79169 - ROD, REAR SEAT HINGE CONNECTOR
79169-95705

YM35..GEN;KM36..06S..ARL

 1
79175 - PAD, NO.1 SEAT BACK
79175-95700

YM35..GEN;KM36..06S..ARL

 1
79180 - SPRING ASSY, NO.1 SEAT BACK
79180-95705

YM35..GEN;KM36..06S..ARL

 1
79236A - COVER, NO.2 SEAT LEG
79236-9570103

YM35..GEN;KM36..06S..ARL

GRAY,TRIM1#

 2
79621 - STOPPER, NO.2 SEAT CUSHION
79226-95700

YM35..GEN;KM36..06S..ARL

 2
Common parts
90119-10185
90119-10315
90119-10392
90119-10418
90164-50022
90168-40043
90468-03018
90468-18071
90540-06025
90950-01217
93560-15020
93560-55016
