KM36RV-JRSQ (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

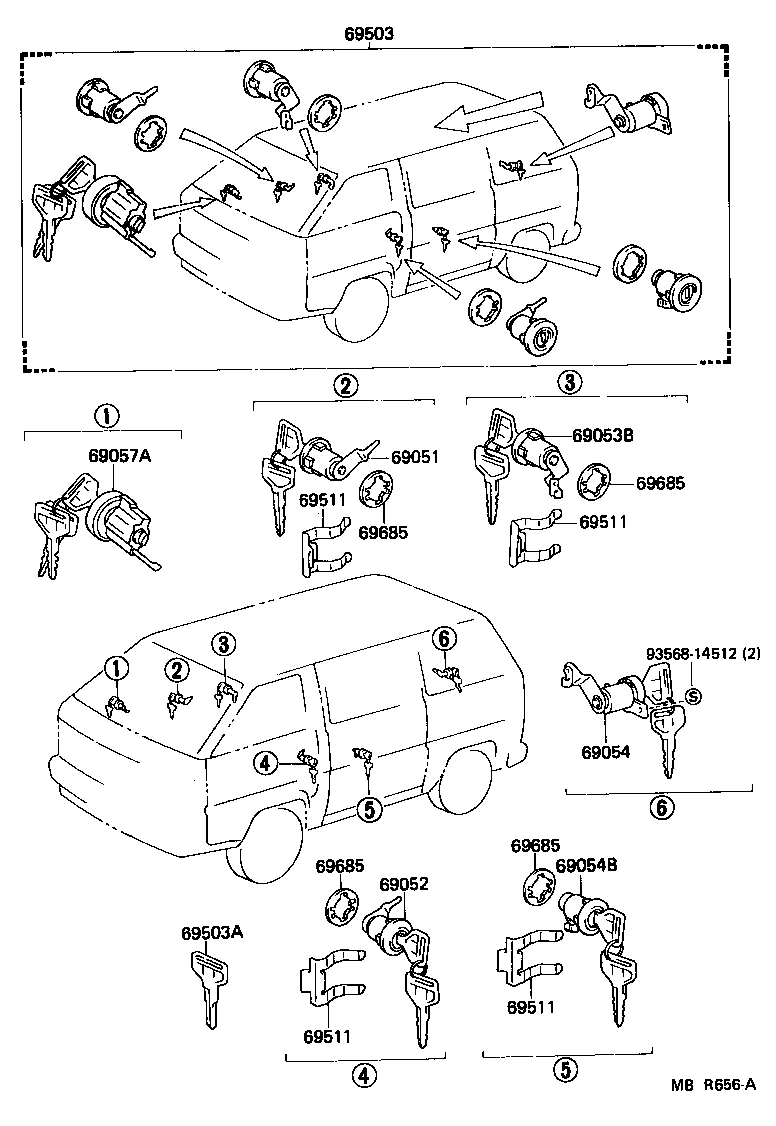

Click highlighted areas on diagram

diagram 69051 69052 69053B 69054 69054B 69057A 69503 69503A 69511 69511 69511 69511 69685 69685 69685 69685 9356814512
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-95715

CM36,KM3#,YM3#

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-95715

CM36,KM3#,YM3#

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-95712

CM36,KM3#,YM3#

 1
69054B - CYLINDER & KEY SET, SLIDE DOOR LOCK, LH
69054-95708

KM36..03S,05S;CM36,YM3#..RHD;KM36..RHD..06S

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-95716

KM36..RHD;CM36,KM30,YM3#..4F,4FC,5F

 1
69503 - CYLINDER SET, LOCK
69503-95783

CM36,KM36,YM3#..RHD..V4D

 1
69503A - KEY, BLANK
90999-00066

CM36,KM3#,YM3#

MASTER KEY

 1
90999-00129

CM36,KM3#,YM3#

MASTER KEY,W(*68)

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

CM36,KM3#,YM3#..V4D

 3
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

CM36,KM3#,YM3#..V4D

 3
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

CM36,KM3#,YM3#..V4D

 3
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

CM36,KM3#,YM3#..V4D

 3
69685 - PAD, LOCK CYLINDER
69513-32010

CM36,KM3#,YM3#..V4D

 3
69685 - PAD, LOCK CYLINDER
69513-32010

CM36,KM3#,YM3#..V4D

 3
69685 - PAD, LOCK CYLINDER
69513-32010

CM36,KM3#,YM3#..V4D

 3
69685 - PAD, LOCK CYLINDER
69513-32010

CM36,KM3#,YM3#..V4D

 3
Common parts
93568-14512
