KM36RV-JRSQ (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

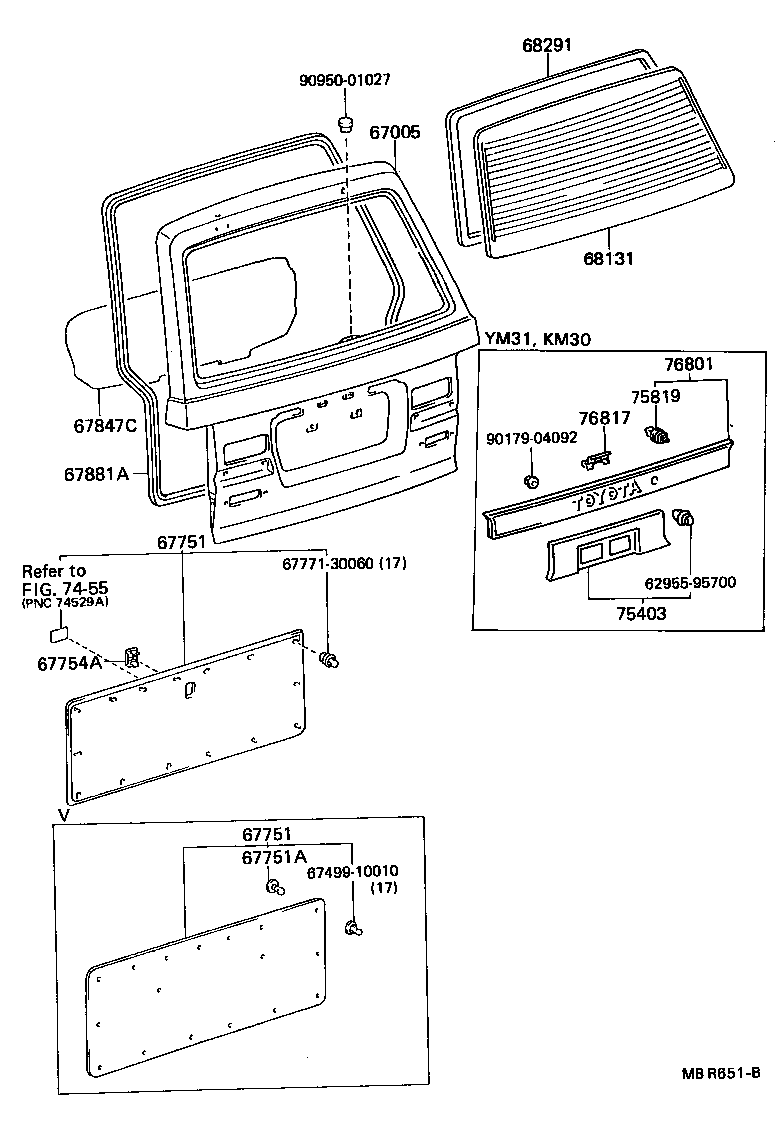

Click highlighted areas on diagram

diagram 6295595700 67005 6749910010 67751 67751 67751A 67754A 6777130060 67847C 67881A 68131 68291 7455 75403 75819 76801 76817 9017904092 9095001027
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-95G73

KM36,YM30..MRF..ARL

ROUGH ROAD PACKAGE

 1
67005-95G37

KM36,YM30..MRF..ARL

 1
67751 - BOARD, BACK DOOR TRIM
67750-9570516

KM36..06S..ARL

SABLE,TRIM1#

 1
67751 - BOARD, BACK DOOR TRIM
67750-9570516

KM36..06S..ARL

SABLE,TRIM1#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-0705406

CM36,KM36,YM31,35

SABLE,TRIM1#

 17
67754A - COVER, BACK DOOR HOLE
55528-3002013

KM37;KM36..ARL;CM36,KM30,YM3#..MRF..(4FC,5F)

GRAY,TRIM1#

 1
67847C - COVER, BACK DOOR SERVICE HOLE, NO.1
67847-95700

KM36,YM30..MRF..ARL

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-95705

CM36,KM3#,YM3#..MRF

 1
68131 - GLASS, BACK DOOR
68131-95728

KM36,YM30..MRF..ARL

*EHTT T=4.0

 1
68131-95727

YM30,31;KM36..06S..ARL

*EHT T=4.0

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-95708

CM36,KM3#,YM3#..MRF

 1
Common parts
62955-95700
67499-10010
67771-30060
90179-04092
90950-01027
Linked diagrams
7455
