KM36RV-JRSQ (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

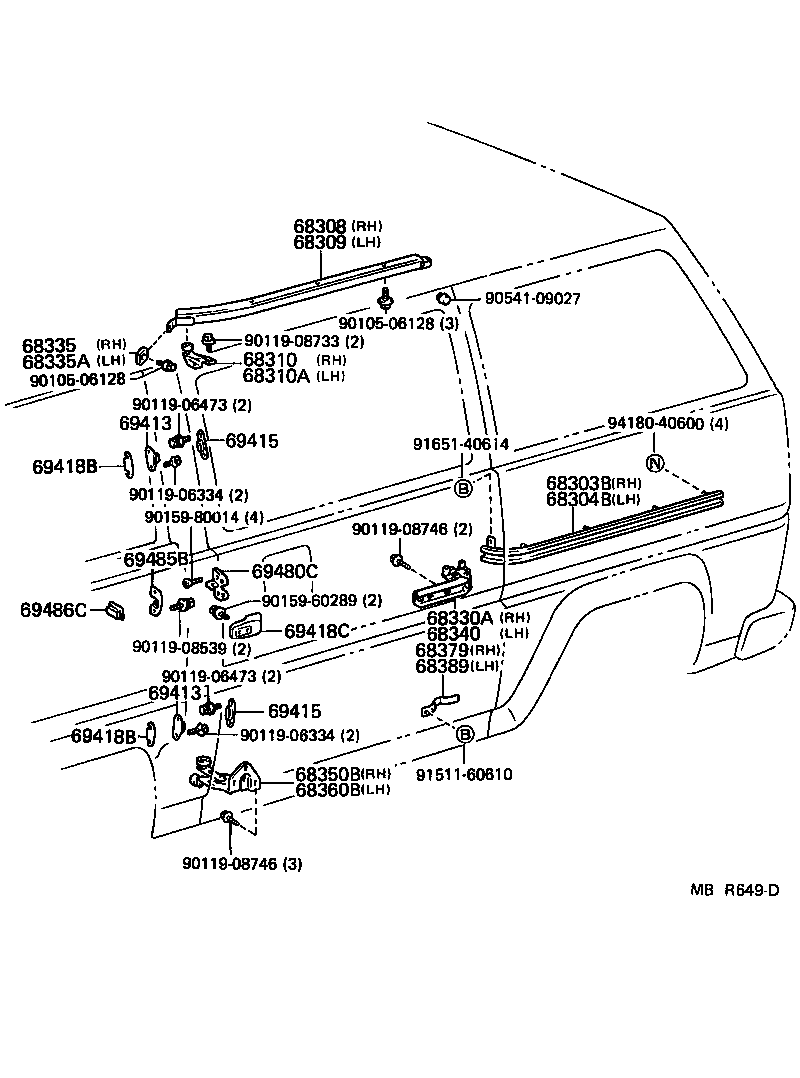

Click highlighted areas on diagram

diagram 68303B 68304B 68308 68309 68310 68310A 68330A 68335 68335A 68340 68350B 68360B 68379 68389 69413 69413 69415 69415 69418B 69418B 69418C 69480C 69485B 69486C 9010506128 9010506128 9011906334 9011906334 9011906473 9011906473 9011908539 9011908733 9011908746 9011908746 9015960289 9015980014 9054109027 9151160610 9165140614 9418040600
Part # Description Qty Price
68304B - RAIL SUB-ASSY, SLIDE DOOR, CENTER LH
68304-95702

KM36..03S,05S;CM36,YM3#..RHD;KM36..RHD..06S

 1
68309 - RAIL SUB-ASSY, SLIDE DOOR, UPPER LH
68309-95701

KM36..03S,05S;CM36,YM3#..RHD;KM36..RHD..06S

 1
68310A - ROLLER ASSY, SLIDE DOOR, UPPER, LH
68310-95703

KM36..03S,05S;CM36,YM3#..RHD;KM36..RHD..06S

 1
68335A - PAD, SLIDE DOOR UPPER RAIL, LH
68335-95702

KM36..03S,05S;CM36,YM3#..RHD;KM36..RHD..06S

 1
68340 - ROLLER ASSY, SLIDE, LH
68340-95704

KM36..03S,05S;CM36,YM3#..RHD;KM36..RHD..06S

 1
68360B - ROLLER ASSY, SLIDE DOOR, LOWER LH
68360-95704

KM36..03S,05S;CM36,YM3#..RHD;KM36..RHD..06S

 1
68389 - SPRING, SLIDE DOOR CATCH, LH
68389-95700

KM36..03S,05S;CM36,YM3#..RHD;KM36..RHD..06S

 1
69413 - STOP, SLIDE DOOR DOWN MALE
69416-95701

CM36,KM3#,YM3#..V4D

 2
69413 - STOP, SLIDE DOOR DOWN MALE
69416-95701

CM36,KM3#,YM3#..V4D

 2
69415 - STOPPER, SLIDE DOOR DOWN FEMALE
69415-87001

CM36,KM3#,YM3#..V4D

 2
69415 - STOPPER, SLIDE DOOR DOWN FEMALE
69415-87001

CM36,KM3#,YM3#..V4D

 2
69418B - SHIM, SLIDE DOOR DOWN STOP MALE
69418-95700

CM36,KM3#,YM3#

 1
69418B - SHIM, SLIDE DOOR DOWN STOP MALE
69418-95700

CM36,KM3#,YM3#

 1
69418C - STOPPER, BACK DOOR MALE, LOWER
69418-87003

CM36,KM3#,YM3#..V4D

 1
69480C - HOOK ASSY, SLIDE DOOR FRONT LOCK , LH
69480-95701

KM36,YM30..MRF..ARL

 1
69485B - BRACKET, SLIDE DOOR FRONT LOCK STRIKER, LH
69485-95701

KM36,YM30..MRF..ARL

 1
69486C - COVER, SLIDE DOOR FRONT LOCK STRIKER, LH
69486-95701

KM36,YM30..MRF..ARL

 1
Common parts
90105-06128
90119-06334
90119-06473
90119-08539
90119-08733
90119-08746
90159-60289
90159-80014
90541-09027
91511-60610
91651-40614
94180-40600
