KM36RV-JRSQ (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

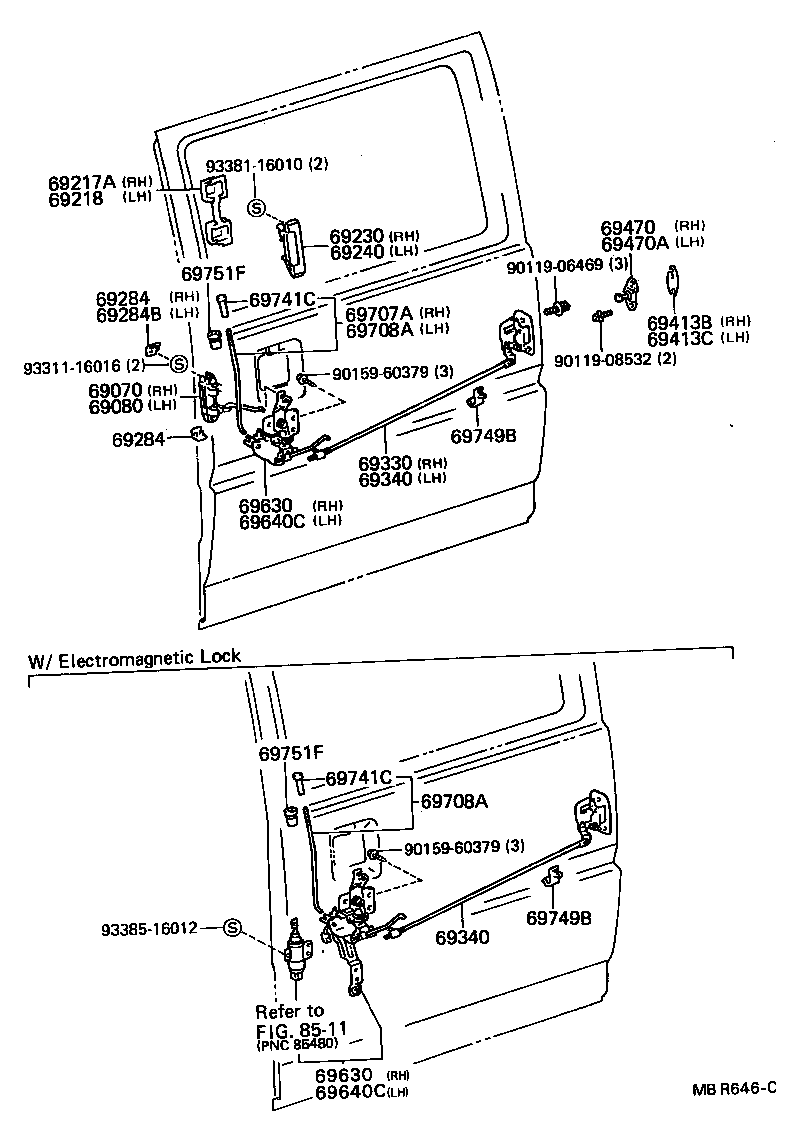

Click highlighted areas on diagram

diagram 69070 69080 69217A 69218 69230 69240 69284 69284 69284B 69330 69340 69340 69413B 69413C 69470 69470A 69630 69630 69640C 69640C 69707A 69708A 69708A 69741C 69741C 69749B 69749B 69751F 69751F 8511 9011906469 9011908532 9015960379 9015960379 9331116016 9338116010 9338516012
Part # Description Qty Price
69080 - HANDLE ASSY, SLIDE DOOR, INSIDE, LH
69080-9570003

KM36..03S,05S;CM36,YM3#..RHD;KM36..RHD..06S

GRAY,TRIM1#

 1
69218 - COVER, SLIDE DOOR OUTSIDE HANDLE, LH
69218-95J00

KM36..03S,05S;CM36,YM3#..RHD;KM36..RHD..06S

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-95J00

KM36..03S,05S;CM36,YM3#..RHD;KM36..RHD..06S

 1
69284B - PLUG, SLIDE DOOR INSIDE HANDLE, LH
69284-8700123

KM36..03S,05S;CM36,YM3#..RHD;KM36..RHD..06S

GRAY,TRIM1#

 2
69340 - LOCK ASSY, REAR DOOR, LH
69340-95702

KM36..03S,05S;CM36,YM3#..RHD;KM36..RHD..06S

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-95702

KM36..03S,05S;CM36,YM3#..RHD;KM36..RHD..06S

 1
69413C - SHIM, DOOR LOCK STRIKER, LH
69413-87002

KM36..03S,05S;CM36,YM3#..RHD;KM36..RHD..06S

 1
69470A - PLATE ASSY, SLIDE DOOR LOCK STRIKER, LH
69470-95701

KM36..03S,05S;CM36,YM3#..RHD;KM36..RHD..06S

 1
69640C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH
69640-95707

KM36..03S,05S;CM36,YM3#..RHD;KM36..RHD..06S

 1
69640C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH
69640-95707

KM36..03S,05S;CM36,YM3#..RHD;KM36..RHD..06S

 1
69708A - ROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, LH
69708-9570103

KM36..03S,05S;CM36,YM3#..RHD;KM36..RHD..06S

GRAY,TRIM1#

 1
69708A - ROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, LH
69708-9570103

KM36..03S,05S;CM36,YM3#..RHD;KM36..RHD..06S

GRAY,TRIM1#

 1
69741C - KNOB, REAR DOOR LOCK CONTROL
69741-28010B1

KM36..03S,05S;CM36,YM3#..RHD;KM36..RHD..06S

SHADOW GRAY,TRIM1#,LH

 1
69741C - KNOB, REAR DOOR LOCK CONTROL
69741-28010B1

KM36..03S,05S;CM36,YM3#..RHD;KM36..RHD..06S

SHADOW GRAY,TRIM1#,LH

 1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-95700

KM36..03S,05S;CM36,YM3#..RHD;KM36..RHD..06S

LH

 1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-95700

KM36..03S,05S;CM36,YM3#..RHD;KM36..RHD..06S

LH

 1
69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB
69751-9570103

KM36..03S,05S;CM36,YM3#..RHD;KM36..RHD..06S

GRAY,TRIM1#,LH

 1
69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB
69751-9570103

KM36..03S,05S;CM36,YM3#..RHD;KM36..RHD..06S

GRAY,TRIM1#,LH

 1
Common parts
90119-06469
90119-08532
90159-60379
93311-16016
93381-16010
93385-16012
Linked diagrams
8511
