KM36RV-JRSQ (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )CM36,KM36,YM31,35..RHD

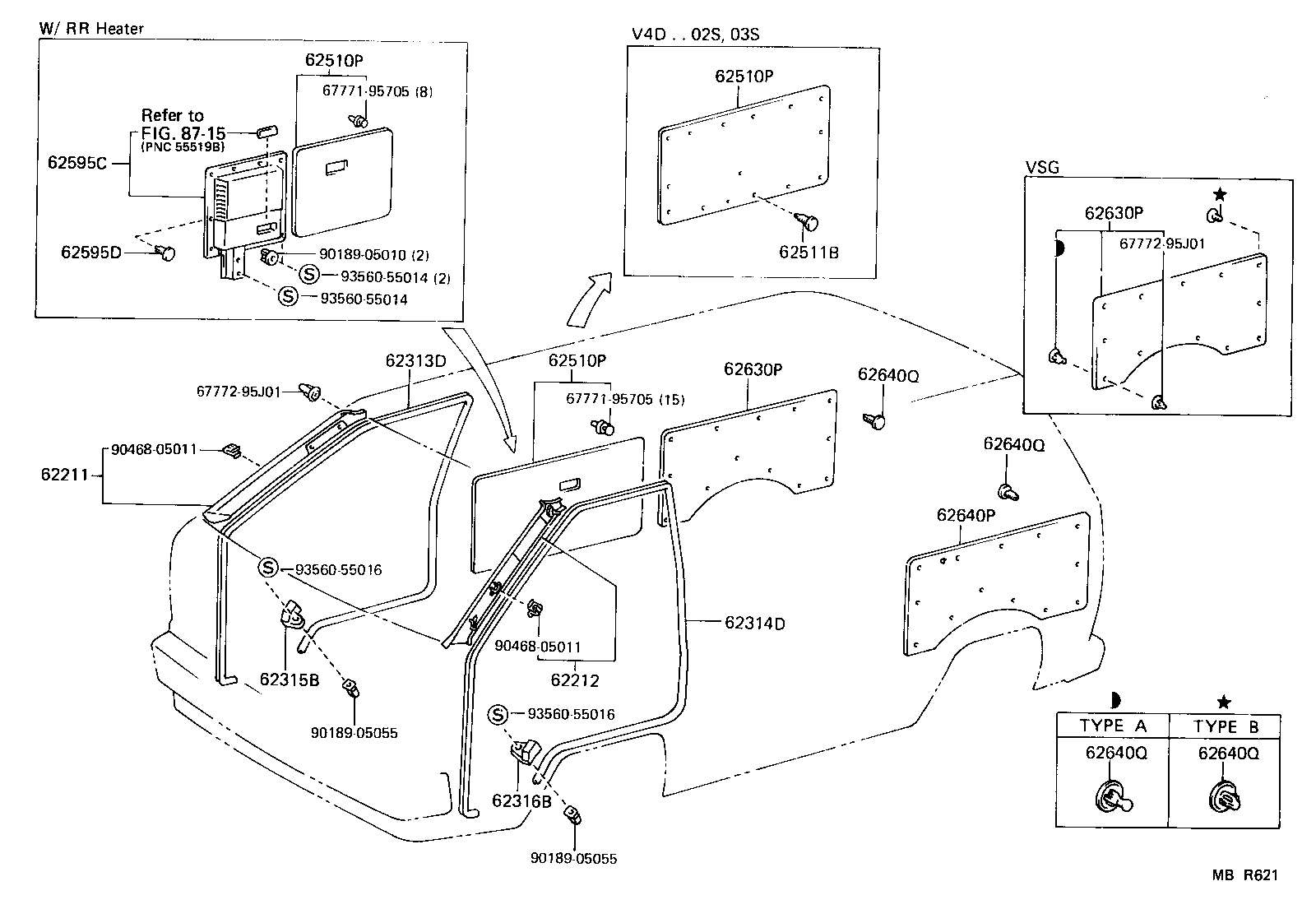

Click highlighted areas on diagram

diagram 62211 62212 62313D 62314D 62315B 62316B 62510P 62510P 62510P 62511B 62595C 62595D 62630P 62630P 62640P 62640Q 62640Q 62640Q 62640Q 6777195705 6777195705 6777295J01 6777295J01 8715 9018905010 9018905055 9018905055 9046805011 9046805011 9356055014 9356055014 9356055016 9356055016
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62211-9570603

CM36,KM3#,YM3#

GRAY,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-9570703

CM36,KM3#,YM3#

GRAY,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-9571013

CM36,KM3#,YM3#

GRAY,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-9571013

CM36,KM3#,YM3#

GRAY,TRIM1#

 1
62315B - COVER, FRONT DOOR OPENING TRIM, RH
62317-9570013

CM36,KM3#,YM3#

GRAY,TRIM1#

 1
62316B - COVER, FRONT DOOR OPENING TRIM, LH
62318-9570013

CM36,KM3#,YM3#

GRAY,TRIM1#

 1
62510P - PANEL ASSY, QUARTER TRIM, FRONT RH
62510-9570403

KM36..06S..ARL

W(REAR HEATER-SIDE TRIM BUILT-IN TYPE),GRAY,TRIM1#

 1
62510-9570303

CM36,KM36,YM35..RHD..VSG

GRAY,TRIM1#

 1
62510P - PANEL ASSY, QUARTER TRIM, FRONT RH
62510-9570403

KM36..06S..ARL

W(REAR HEATER-SIDE TRIM BUILT-IN TYPE),GRAY,TRIM1#

 1
62510-9570303

CM36,KM36,YM35..RHD..VSG

GRAY,TRIM1#

 1
62510P - PANEL ASSY, QUARTER TRIM, FRONT RH
62510-9570403

KM36..06S..ARL

W(REAR HEATER-SIDE TRIM BUILT-IN TYPE),GRAY,TRIM1#

 1
62510-9570303

CM36,KM36,YM35..RHD..VSG

GRAY,TRIM1#

 1
62595C - BOARD, SIDE HEATER COVER, RH
62595-95700B0

KM36..06S..ARL

GRAY,TRIM1#

 1
62595D - CLIP(FOR SIDE HEATER COVER BOARD)
90467-1007103

KM36..06S..ARL

GRAY,TRIM1#

 7
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62630-9571503

CM36,KM36,YM35..RHD..VSG

GRAY,TRIM1#

 1
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62630-9571503

CM36,KM36,YM35..RHD..VSG

GRAY,TRIM1#

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62632-95704

YM35;KM36..03S;CM36..RHD..02S;KM36..06S..ARL

 1
62640Q - CLIP (FOR QUARTER TRIM REAR PANEL)
90467-0705406

CM36,KM36,YM35..RHD..VSG

SABLE,TRIM1#,TYPE C

 1
90467-0705406

KM36..06S..ARL

SABLE,TRIM1#,TYPE A

 1
90467-1007103

CM36,KM36,YM31,35..VSG

GRAY,TRIM1#,TYPE B

 25
62640Q - CLIP (FOR QUARTER TRIM REAR PANEL)
90467-0705406

CM36,KM36,YM35..RHD..VSG

SABLE,TRIM1#,TYPE C

 1
90467-0705406

KM36..06S..ARL

SABLE,TRIM1#,TYPE A

 1
90467-1007103

CM36,KM36,YM31,35..VSG

GRAY,TRIM1#,TYPE B

 25
62640Q - CLIP (FOR QUARTER TRIM REAR PANEL)
90467-0705406

CM36,KM36,YM35..RHD..VSG

SABLE,TRIM1#,TYPE C

 1
90467-0705406

KM36..06S..ARL

SABLE,TRIM1#,TYPE A

 1
90467-1007103

CM36,KM36,YM31,35..VSG

GRAY,TRIM1#,TYPE B

 25
62640Q - CLIP (FOR QUARTER TRIM REAR PANEL)
90467-0705406

CM36,KM36,YM35..RHD..VSG

SABLE,TRIM1#,TYPE C

 1
90467-0705406

KM36..06S..ARL

SABLE,TRIM1#,TYPE A

 1
90467-1007103

CM36,KM36,YM31,35..VSG

GRAY,TRIM1#,TYPE B

 25
Common parts
67771-95705
67772-95J01
90189-05010
90189-05055
90468-05011
93560-55014
93560-55016
Linked diagrams
8715
