KM36RV-JRSQ (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

Click highlighted areas on diagram

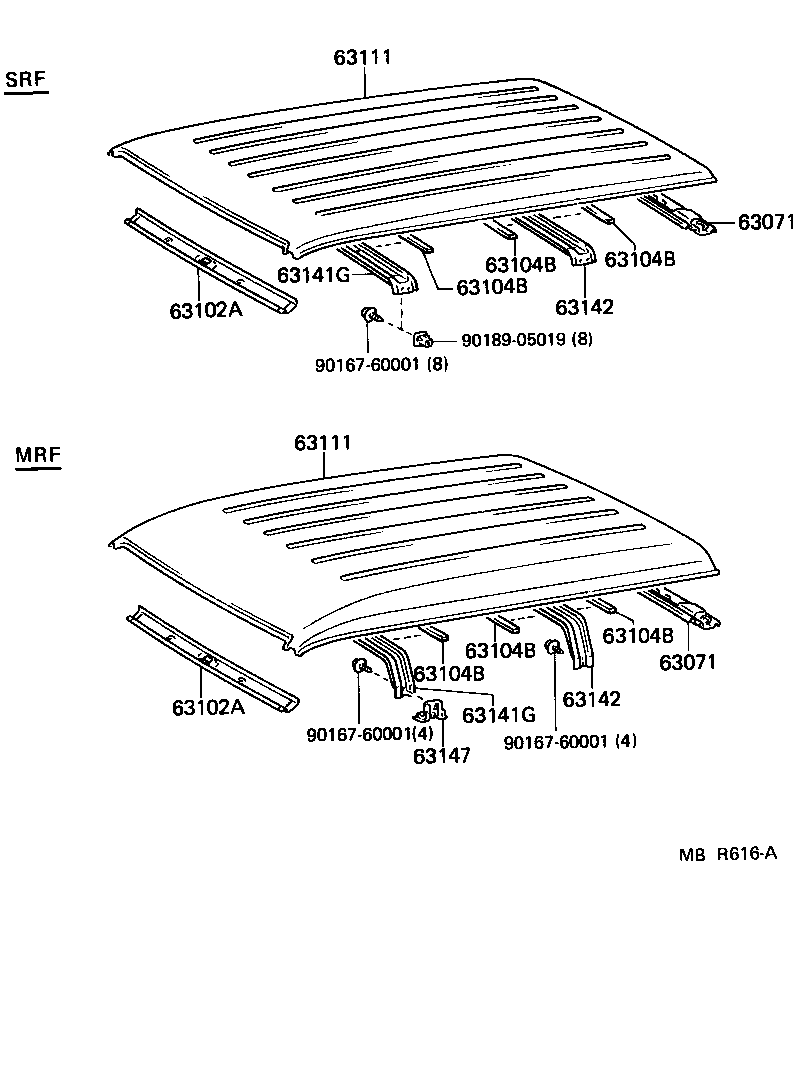

diagram 63071 63071 63102A 63102A 63104B 63104B 63104B 63104B 63104B 63104B 63111 63111 63141G 63141G 63142 63142 63147 9016760001 9016760001 9016760001 9018905019
Part # Description Qty Price
63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63071-95700

CM36,KM36,37,YM35

 1
63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63071-95700

CM36,KM36,37,YM35

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-95706

CM36,KM36,37,YM35

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-95706

CM36,KM36,37,YM35

 1
63104B - CUSHION, ROOF TO ROOF REINFORCEMENT
63357-95701

CM36,KM36,37,YM35..VSG

 4
63104B - CUSHION, ROOF TO ROOF REINFORCEMENT
63357-95701

CM36,KM36,37,YM35..VSG

 4
63104B - CUSHION, ROOF TO ROOF REINFORCEMENT
63357-95701

CM36,KM36,37,YM35..VSG

 4
63104B - CUSHION, ROOF TO ROOF REINFORCEMENT
63357-95701

CM36,KM36,37,YM35..VSG

 4
63104B - CUSHION, ROOF TO ROOF REINFORCEMENT
63357-95701

CM36,KM36,37,YM35..VSG

 4
63104B - CUSHION, ROOF TO ROOF REINFORCEMENT
63357-95701

CM36,KM36,37,YM35..VSG

 4
63111 - PANEL, ROOF
63111-95712

CM36,KM3#,YM3#..MRF

 1
63111 - PANEL, ROOF
63111-95712

CM36,KM3#,YM3#..MRF

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-95710

CM36,KM36,37,YM35..MRF

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-95710

CM36,KM36,37,YM35..MRF

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-95705

CM36,KM3#,YM3#..MRF

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-95705

CM36,KM3#,YM3#..MRF

 1
63147 - BRACKET, ROOF PANEL REINFORCEMENT
63148-95701

CM36,KM36,YM3#..RHD..MRF

LH

 1
Common parts
90167-60001
90189-05019
