Toyota Liteace KM36 REAR SPRING & SHOCK ABSORBER

Manufacturers Home
Toyota
GR
LITEACE
KM36RV-JRSQ (1988)
4804 - REAR SPRING & SHOCK ABSORBER

KM36RV-JRSQ (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992

Engine 5KC

Transmission 4H MTM

Displacement 2500cc

Power 168 HP (125 kW)

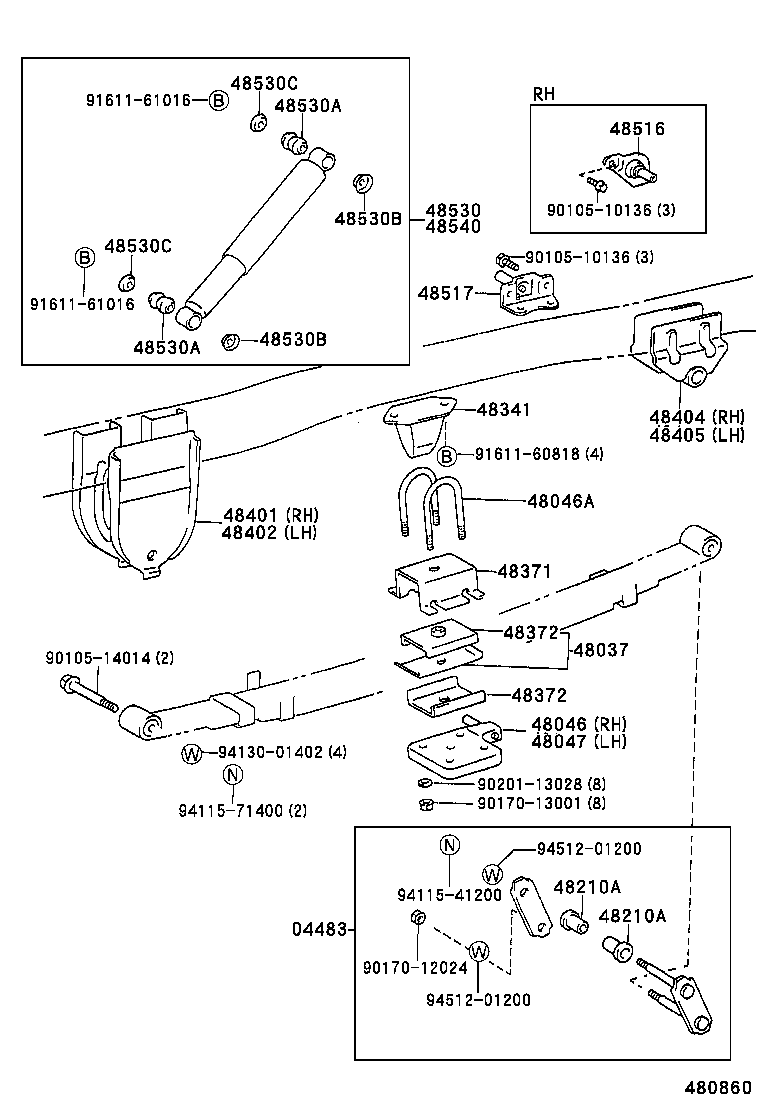

(8808- )CM36,KM36,37,YM35

Click highlighted areas on diagram

Part #	Description	Period	Qty
04483 - SHACKLE KIT, REAR SPRING
04483-27021	CM36,KM36,37,YM35	08/1988 - 01/1992	1
48037 - SPACER SUB-ASSY, REAR SPRING
48037-26030	KM36..4F;KM36..03S..ARL;CM36,KM36,YM35..RHD..MRF	08/1988 - 01/1992	2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-27070	CM36,KM36,37,YM35	08/1988 - 01/1992	1
48046A - BOLT, U(FOR REAR SPRING)
90117-13017	YM35;CM36,KM36..ARL L=164	08/1988 - 09/1994	4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48046-27070	CM36,KM36,37,YM35	08/1988 - 01/1992	1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-15001	CM36,KM36,37,YM35	08/1988 - 01/1992	4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-15001	CM36,KM36,37,YM35	08/1988 - 01/1992	4
48341 - BUMPER, REAR SPRING
48341-27050	CM36,KM36,37,YM35	08/1988 - 01/1992	2
48371 - RETAINER, REAR SPRING PAD
48371-27110	YM35;CM36,KM36..ARL	08/1988 - 04/1998	2
48372 - PAD, REAR SPRING
48372-26030	KM36..4F;KM36..03S..ARL;CM36,KM36,YM35..RHD..MRF	08/1988 - 01/1992	4
48372 - PAD, REAR SPRING
48372-26030	KM36..4F;KM36..03S..ARL;CM36,KM36,YM35..RHD..MRF	08/1988 - 01/1992	4
48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH
57701-95706	CM36,KM36,37,YM35	08/1988 - 04/1998	1
48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH
57702-95704	CM36,KM36,37,YM35	08/1988 - 04/1998	1
48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH
57703-95704	CM36,KM36,37,YM35	08/1988 - 04/1998	1
48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH
57704-95701	CM36,KM36,37,YM35	08/1988 - 04/1998	1
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48516-27011	CM36,KM36,37,YM35	08/1988 - 01/1992	1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48517-27010	CM36,KM36,37,YM35	08/1988 - 01/1992	1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80079	CM36,YM35;KM36..ARL MARK 48531-27110	08/1988 - 03/1997	1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16001	CM36,KM36,37,YM35	08/1988 - 01/1992	4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16001	CM36,KM36,37,YM35	08/1988 - 01/1992	4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03004	CM36,KM36,37,YM35	08/1988 - 01/1992	4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03004	CM36,KM36,37,YM35	08/1988 - 01/1992	4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03007	CM36,KM36,37,YM35	08/1988 - 01/1992	4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03007	CM36,KM36,37,YM35	08/1988 - 01/1992	4
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80079	CM36,YM35;KM36..ARL MARK 48531-27110	08/1988 - 03/1997	1
Common parts
90105-10136
90105-14014
90170-12024
90170-13001
90201-13028
91611-60818
91611-61016
94115-41200
94115-71400
94130-01402
94512-01200

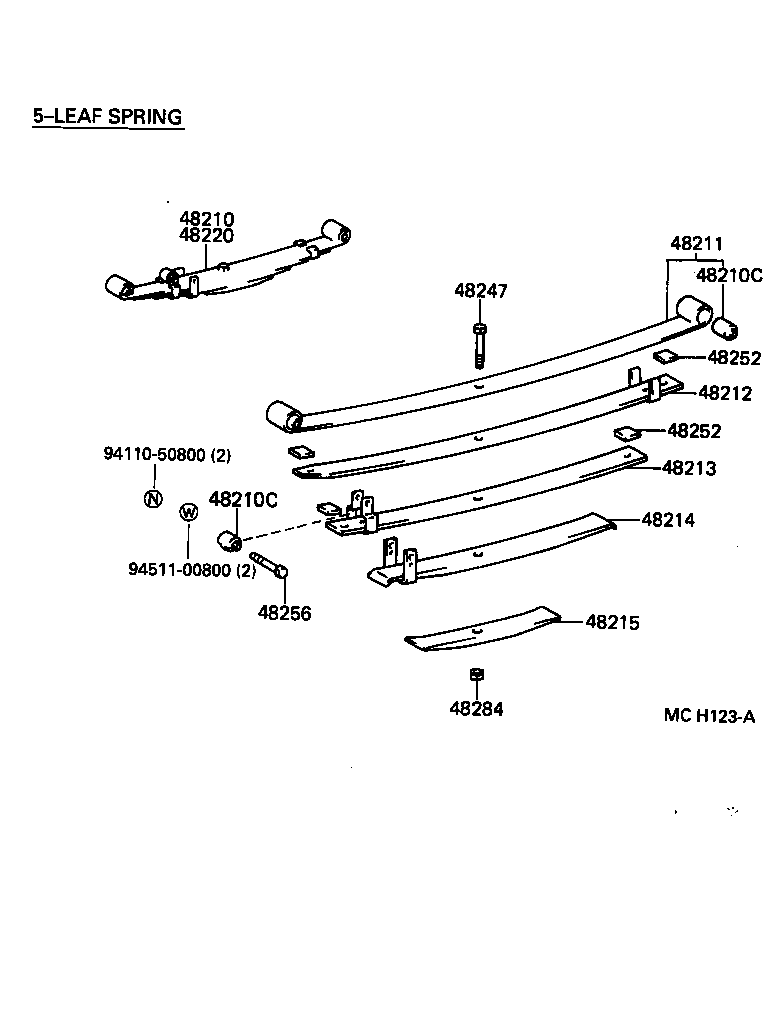

(8808- )ARL

Click highlighted areas on diagram

Part #	Description	Period	Qty
48210 - SPRING ASSY, REAR RH
48210-27340	YM35;CM36,KM36..ARL 5-LEAF	08/1988 - 04/1998	1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-08041	YM35;CM36,KM36..ARL CLIP SIDE	08/1988 - 04/1998	2
90389-14004	CM36,KM36,37,YM35	08/1988 - 01/1992	4
48210C - BUSH(FOR REAR SPRING LEAF)
90389-08041	YM35;CM36,KM36..ARL CLIP SIDE	08/1988 - 04/1998	2
90389-14004	CM36,KM36,37,YM35	08/1988 - 01/1992	4
48211 - LEAF, REAR SPRING, NO.1
48201-27340	YM35;CM36,KM36..ARL 5-LEAF	08/1988 - 04/1998	2
48212 - LEAF, REAR SPRING, NO.2
48202-27340	YM35;CM36,KM36..ARL 5-LEAF	08/1988 - 04/1998	2
48213 - LEAF, REAR SPRING, NO.3
48205-27340	YM35;CM36,KM36..ARL 5-LEAF	08/1988 - 04/1998	2
48214 - LEAF, REAR SPRING, NO.4
48204-27340	YM35;CM36,KM36..ARL 5-LEAF	08/1988 - 04/1998	2
48215 - LEAF, REAR SPRING, NO.5
48215-27340	YM35;CM36,KM36..ARL 5-LEAF	08/1988 - 04/1998	2
48220 - SPRING ASSY, REAR LH
48210-27340	YM35;CM36,KM36..ARL 5-LEAF	08/1988 - 04/1998	1
48247 - BOLT, REAR SPRING, CENTER
48247-27340	YM35;CM36,KM36..ARL	08/1988 - 04/1998	2
48252 - SILENCER, REAR SPRING
48252-26070	YM35;CM36,KM36..ARL	08/1988 - 04/1998	8
48252 - SILENCER, REAR SPRING
48252-26070	YM35;CM36,KM36..ARL	08/1988 - 04/1998	8
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-35360	YM35;CM36,KM36..ARL	08/1988 - 04/1998	2
48284 - NUT, REAR SPRING CENTER BOLT
48299-28010	CM36,KM36,37,YM35	08/1988 - 01/1992	2
Common parts
94110-50800
94511-00800
