KM36RV-JRSQ (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

Click highlighted areas on diagram

URETHANE

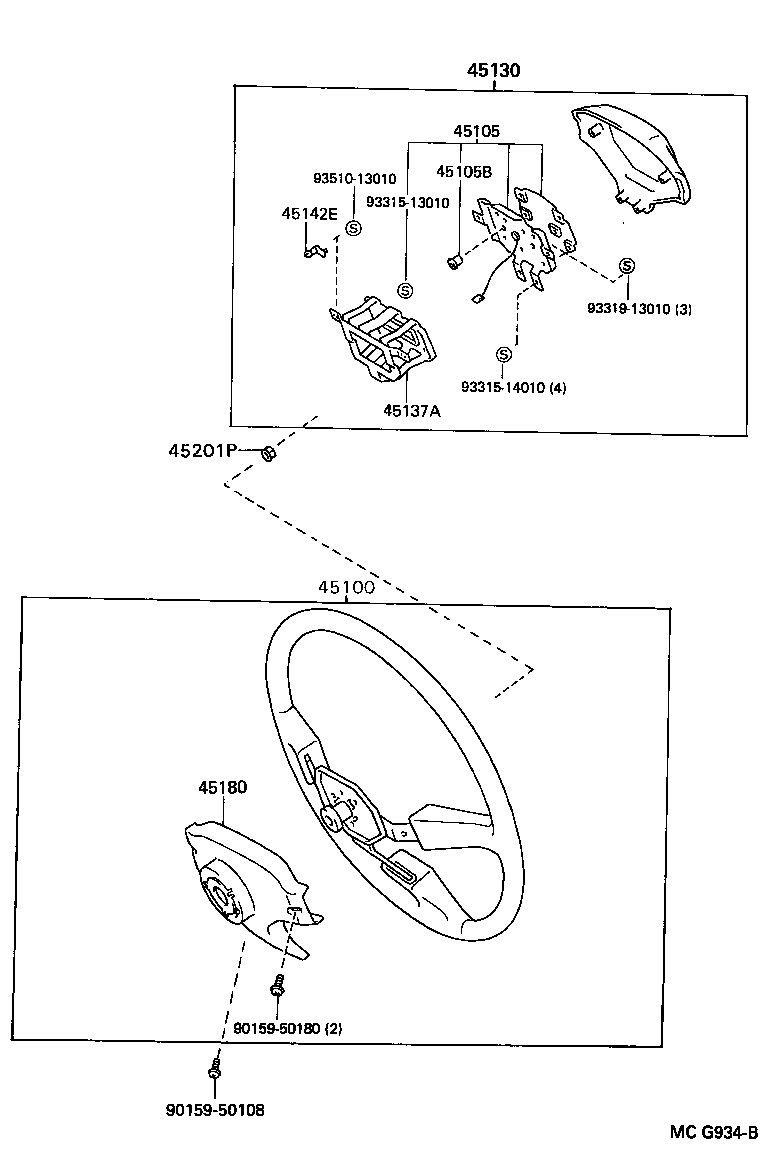

diagram 45100 45105 45105B 45130 45137A 45142E 45180 45201P 9015950108 9015950180 9331513010 9331514010 9331913010 9351013010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2713003

KM36,YM35..MRF

3-SPOKE,URETHANE,W(URETHANE STEERING WHEEL),GRAY,GRAY,TRIM1#

 1
45100-1027003

CM36,KM36,37,YM35

2SPOKE,POLYPROPYLENE,GRAY,TRIM1#

 1
45100-2713003

KM3#,YM35..MRF

3-SPOKE,URETHANE,W(URETHANE STEERING WHEEL),GRAY,GRAY,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-17030

KM36,YM35..MRF

W(URETHANE STEERING WHEEL)

 1
45105-17030

KM3#,YM35..MRF

W(URETHANE STEERING WHEEL)

 1
45105-10010

CM36,KM36,37,YM35

 1
45105B - SPACER(FOR HORN BUTTON CONTACT PLATE)
90561-02001

KM3#,YM3#..MRF

 2
90561-02001

KM36,YM3#..MRF

 2
45130 - BUTTON ASSY, HORN
45130-2708003

KM36,YM35..MRF

W(URETHANE STEERING WHEEL),GRAY,TRIM1#

 1
45130-2708003

KM3#,YM35..MRF

W(URETHANE STEERING WHEEL),GRAY,TRIM1#

 1
45130-2702003

CM36,KM36,37,YM35

GRAY,TRIM1#

 1
45137A - PLATE, HORN BUTTON CONTACT, NO.2
45137-17011

KM36,YM3#..MRF

 1
45137-17011

KM3#,YM3#..MRF

 1
45142E - PIECE, HORN CONTACT
45142-20060

KM36,YM3#..MRF

 2
45142-20060

KM3#,YM3#..MRF

 2
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-1701003

KM3#,YM3#..MRF..(02S,06S,08S,09S)

GRAY,TRIM1#

 1
45180-1701003

KM36,YM3#..MRF

GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

CM36,KM3#,YM3#

 1
Common parts
90159-50108
90159-50180
93315-13010
93315-14010
93319-13010
93510-13010

(8808- )

Click highlighted areas on diagram

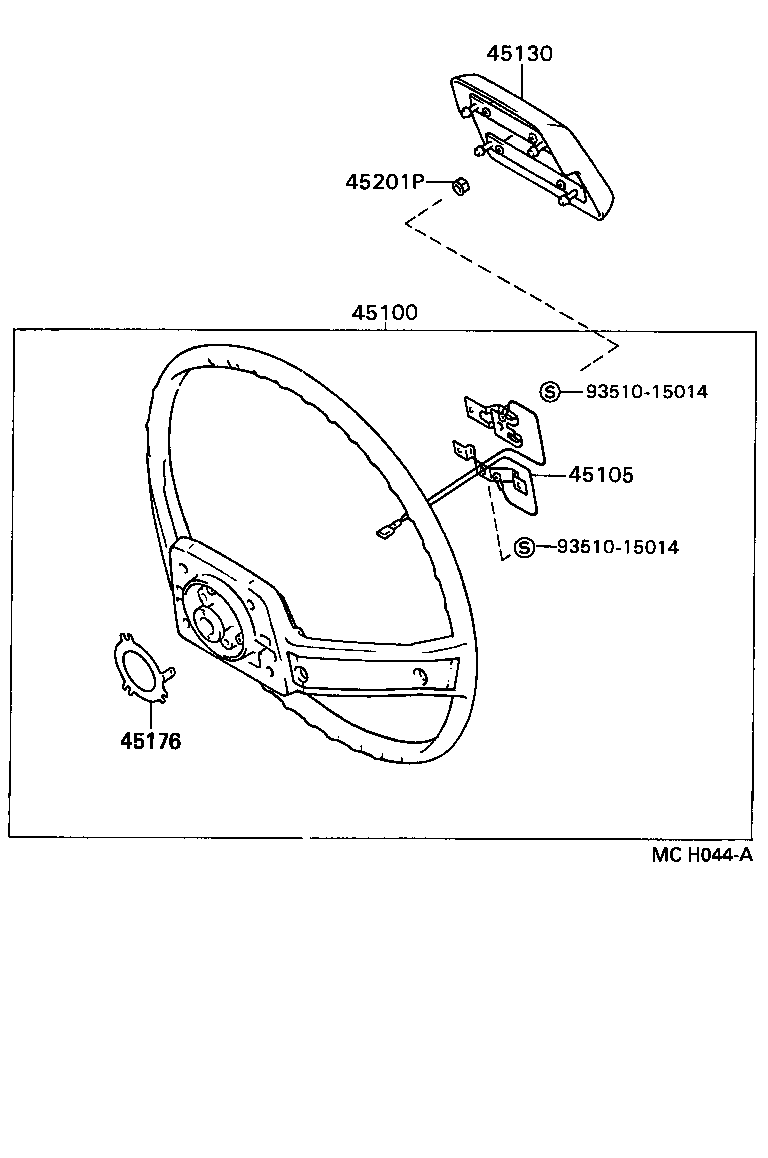

diagram 45100 45105 45130 45176 45201P 9351015014 9351015014
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2713003

KM36,YM35..MRF

3-SPOKE,URETHANE,W(URETHANE STEERING WHEEL),GRAY,GRAY,TRIM1#

 1
45100-1027003

CM36,KM36,37,YM35

2SPOKE,POLYPROPYLENE,GRAY,TRIM1#

 1
45100-2713003

KM3#,YM35..MRF

3-SPOKE,URETHANE,W(URETHANE STEERING WHEEL),GRAY,GRAY,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-17030

KM36,YM35..MRF

W(URETHANE STEERING WHEEL)

 1
45105-17030

KM3#,YM35..MRF

W(URETHANE STEERING WHEEL)

 1
45105-10010

CM36,KM36,37,YM35

 1
45130 - BUTTON ASSY, HORN
45130-2708003

KM36,YM35..MRF

W(URETHANE STEERING WHEEL),GRAY,TRIM1#

 1
45130-2708003

KM3#,YM35..MRF

W(URETHANE STEERING WHEEL),GRAY,TRIM1#

 1
45130-2702003

CM36,KM36,37,YM35

GRAY,TRIM1#

 1
45176 - RING, HORN CONTACT
45176-35020

CM36,KM36,37,YM35

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

CM36,KM3#,YM3#

 1
Common parts
93510-15014
