KM36RV-JRSQ (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8808- )KM3#

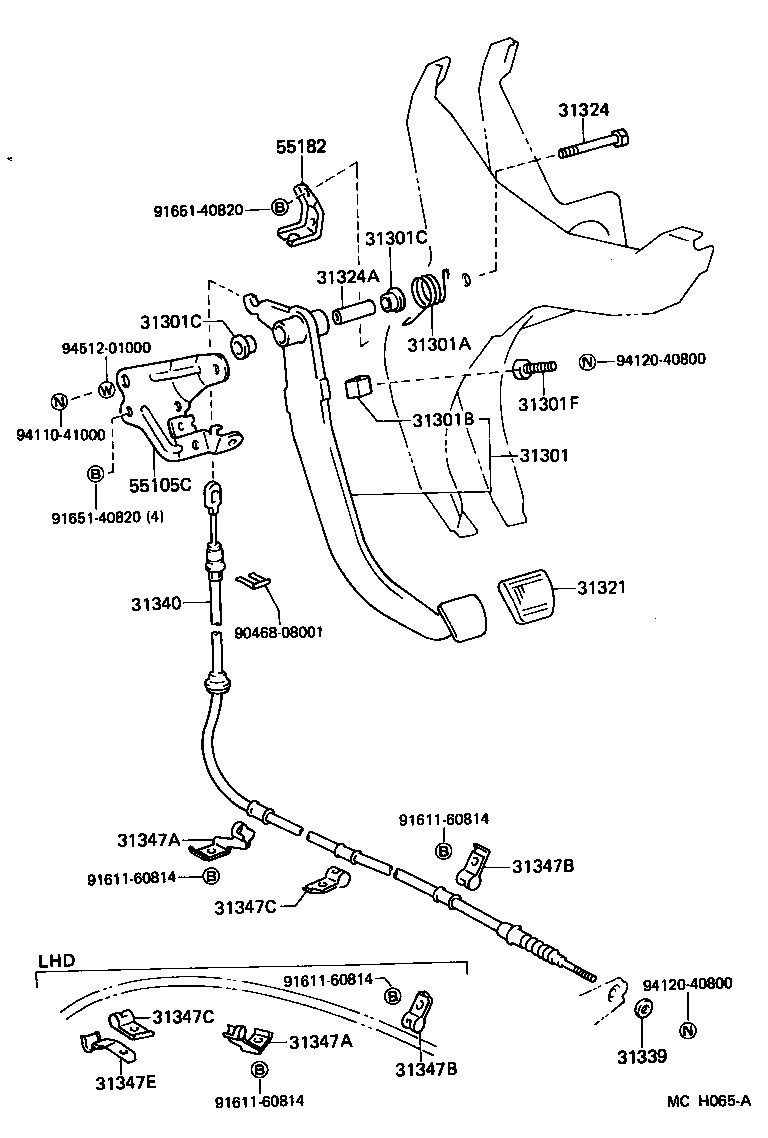

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31339 31340 31347A 31347A 31347B 31347B 31347C 31347C 31347E 55105C 55182 9046808001 9161160814 9161160814 9161160814 9161160814 9165140820 9165140820 9411041000 9412040800 9412040800 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-27131

KM36..RHD..(4F,4H)

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90508-35386

KM36,37..4F,4H

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
47131-10020

CM36,KM3#,YM3#..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

CM36,KM3#,YM3#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

CM36,KM3#,YM3#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-08052

CM36,KM3#,YM3#..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

CM36,KM3#,YM3#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51060

CM36,KM3#,YM3#..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

CM36,KM3#,YM3#..MTM

 1
31339 - NUT, CLUTCH FORK PULL ROD LOCK
31339-28010

KM36,37..4F,4H

 1
31340 - CABLE ASSY, CLUTCH RELEASE
31340-27111

KM36..RHD..(4F,4H)

 1
31347A - CLAMP, CLUTCH CABLE, NO.1
31347-27020

KM36,37..4F,4H

 1
31347A - CLAMP, CLUTCH CABLE, NO.1
31347-27020

KM36,37..4F,4H

 1
31347B - CLAMP, CLUTCH CABLE, NO.2
31347-27030

KM36..RHD..(4F,4H)

 1
31347B - CLAMP, CLUTCH CABLE, NO.2
31347-27030

KM36..RHD..(4F,4H)

 1
31347C - CLAMP, CLUTCH CABLE, NO.3
31347-27040

KM36..RHD..(4F,4H)

 1
31347C - CLAMP, CLUTCH CABLE, NO.3
31347-27040

KM36..RHD..(4F,4H)

 1
55105C - SUPPORT, PEDAL BRACKET CLUTCH WIRE
55105-95705

KM36..RHD..(4F,4H)

 1
55182 - BRACKET, CLUTCH PEDAL STOPPER
55182-95700

KM36..RHD..(4F,4H)

 1
Common parts
90468-08001
91611-60814
91651-40820
94110-41000
94120-40800
94512-01000
