KM36RV-JRSQ (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )5K#

Click highlighted areas on diagram

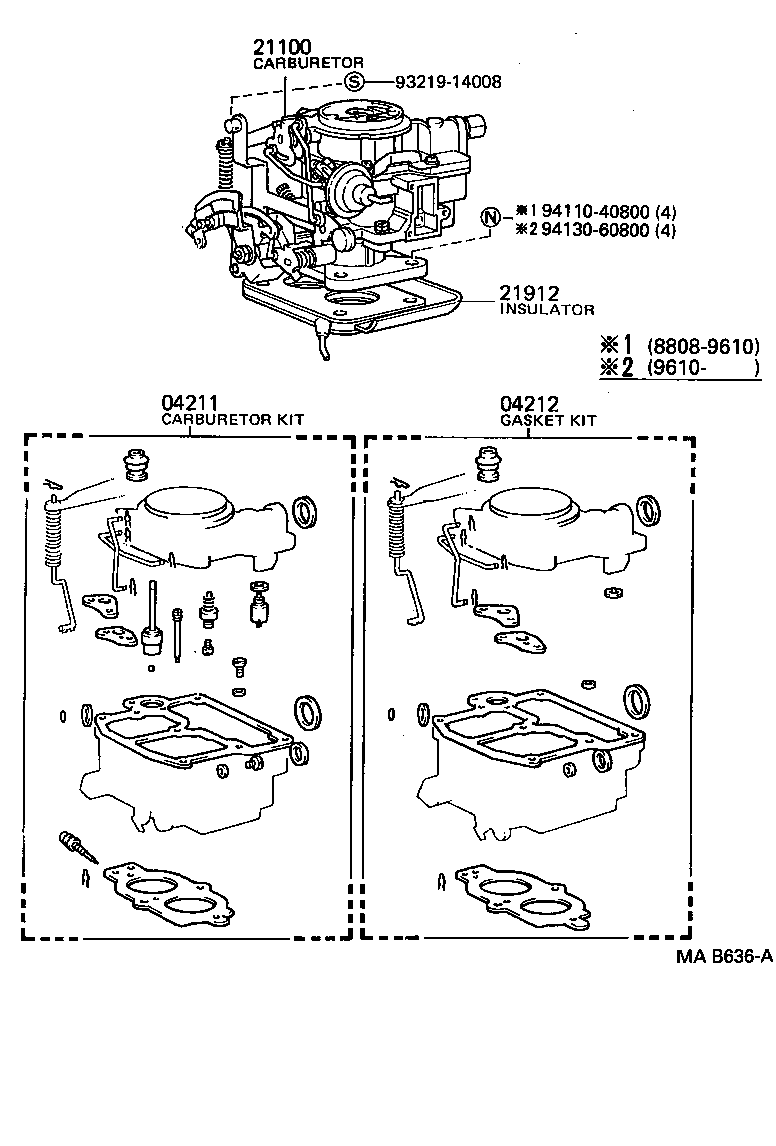

diagram 04211 04212 21100 21912 9321914008 9411040800 9413060800
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-13390

5K..KM3#

 1
04211-13460

5KC..KM36

 1
04211-13461

5KC..KM36

 1
04211-13361

5K..KM36..RHD..4H

SINGAPORE SPEC

 1
04211-13462

5KC..KM36

 1
04211-13360

5K..KM36..RHD..4H

SINGAPORE SPEC

 1
04211-13391

5K..KM36,37

 1
04212 - GASKET KIT, CARBURETOR
04212-13070

5K#..KM3#

 1
21100 - CARBURETOR ASSY
21100-13610

5K..KM36..RHD..4H

SINGAPORE SPEC

 1
21100-13600

5K..KM36,37

 1
21100-13690

5KC..KM36

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-13051

5K#..KM3#

 1
Common parts
93219-14008
94110-40800
94130-60800
