KM36RV-JRSQ (1988)
Toyota Liteace

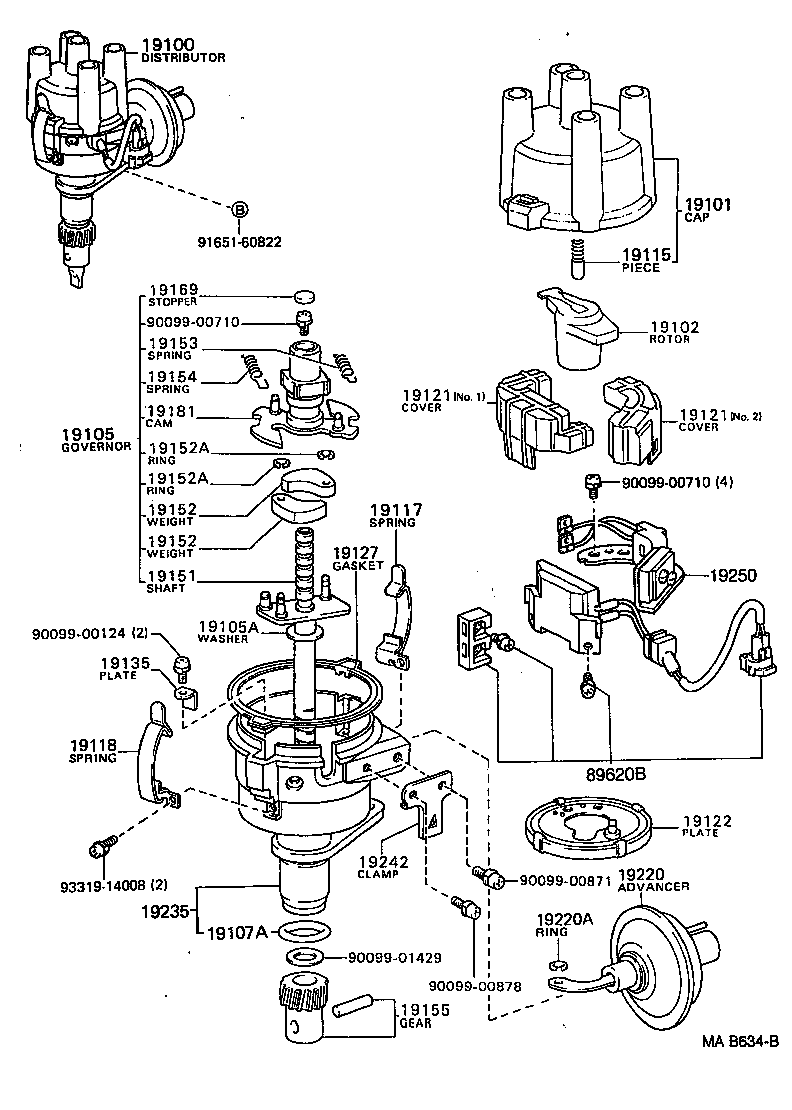

(8808- )5KC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19060-13120 |
5KC..KM36 |
1 | ||
| 19100-13390 |
5K..KM36..RHD..4H SINGAPORE SPEC |
1 | ||
| 19100-13380 |
5K..KM3# |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-71020 |
5K#..KM3# |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-33012 |
5K..KM36..RHD..4H SINGAPORE SPEC |
1 | ||
| 19102-26151 |
5K#..KM3# |
1 | ||
| 19105 - GOVERNOR SUB-ASSY | ||||
| 19105-13390 |
5K..KM36..RHD..4H SINGAPORE SPEC |
1 | ||
| 19105-13101 |
5KC..KM36 |
1 | ||
| 19105-13380 |
5K..KM3# |
1 | ||
| 19105A - WASHER(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-01385 |
5K#..KM3# T=2.5 |
1 | ||
| 90099-01386 |
5K#..KM3# T=2.7 |
1 | ||
| 90099-01387 |
5K#..KM3# T=2.9 |
1 | ||
| 90099-01412 |
5K#..KM3# T=2.3 |
1 | ||
| 90099-01412 |
5K..KM36..RHD..4H T=2.3,SINGAPORE SPEC |
1 | ||
| 90099-01385 |
5K..KM3# T=2.5 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14020 |
5K#..KM3# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
5K#..KM3# |
1 | ||
| 19117 - SPRING, DISTRIBUTOR CAP, A | ||||
| 19117-24080 |
5K#..KM3# |
1 | ||
| 19118 - SPRING, DISTRIBUTOR CAP, B | ||||
| 19117-24080 |
5K#..KM3# |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-88261 |
5KC..KM36 NO.1 |
1 | ||
| 19121-88260 |
5KC..KM36 NO.2 |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-88261 |
5KC..KM36 NO.1 |
1 | ||
| 19121-88260 |
5KC..KM36 NO.2 |
1 | ||
| 19122 - PLATE, STATIONARY, DISTRIBUTOR | ||||
| 19122-88263 |
5KC..KM36 |
1 | ||
| 19122-33013 |
5K..KM3# |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-15010 |
5K#..KM3# |
1 | ||
| 19135 - PLATE, HOLDER | ||||
| 19135-24080 |
5K#..KM3# |
2 | ||
| 19151 - SHAFT, GOVERNOR | ||||
| 19151-24081 |
5K#..KM3# |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-63010 |
5K#..KM3# |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-63010 |
5K#..KM3# |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07122 |
5K#..KM3# |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07122 |
5K#..KM3# |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-13390 |
5K..KM36..RHD..4H SINGAPORE SPEC |
1 | ||
| 19153-13101 |
5KC..KM36 |
1 | ||
| 19153-13380 |
5K..KM3# |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-13380 |
5K..KM3# |
1 | ||
| 19154-13390 |
5K..KM36..RHD..4H SINGAPORE SPEC |
1 | ||
| 19154-13101 |
5KC..KM36 |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-13060 |
5KC..KM36 |
1 | ||
| 19195-24081 |
5K..KM3# |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-63011 |
5K#..KM3# |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-13101 |
5KC..KM36 |
1 | ||
| 19181-13070 |
5KC..KM36 |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-13120 |
5KC..KM36 |
1 | ||
| 19220-13380 |
5K..KM3# |
1 | ||
| 19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER) | ||||
| 90099-07109 |
5KC..KM36 |
1 | ||
| 19235 - HOUSING, DISTRIBUTOR | ||||
| 19235-13030 |
5KC..KM36 |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-13080 |
5KC..KM36 |
1 | ||
| 19250 - GENERATOR ASSY, SIGNAL | ||||
| 19250-13120 |
5KC..KM36 |
1 | ||
| 89620B - IGNITER ASSY | ||||
| 89620-27031 |
KM36..ARL |
1 | ||
| Common parts | ||||
| 90099-00124 | ||||
| 90099-00710 | ||||
| 90099-00871 | ||||
| 90099-00878 | ||||
| 90099-01429 | ||||
| 91651-60822 | ||||
| 93319-14008 | ||||

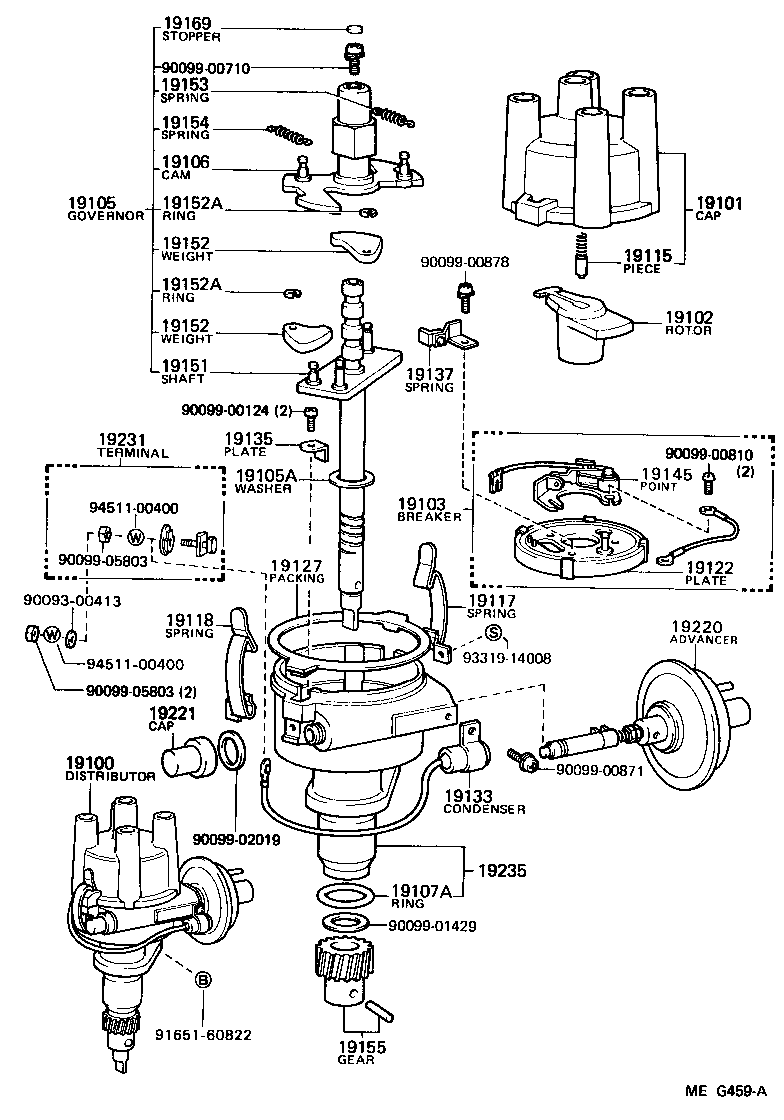

(8808- )5K
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19060-13120 |
5KC..KM36 |
1 | ||
| 19100-13390 |
5K..KM36..RHD..4H SINGAPORE SPEC |
1 | ||
| 19100-13380 |
5K..KM3# |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-71020 |
5K#..KM3# |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-33012 |
5K..KM36..RHD..4H SINGAPORE SPEC |
1 | ||
| 19102-26151 |
5K#..KM3# |
1 | ||
| 19103 - BREAKER SUB-ASSY, DISTRIBUTOR | ||||
| 19103-33013 |
5K..KM3# |
1 | ||
| 19105 - GOVERNOR SUB-ASSY | ||||
| 19105-13390 |
5K..KM36..RHD..4H SINGAPORE SPEC |
1 | ||
| 19105-13101 |
5KC..KM36 |
1 | ||
| 19105-13380 |
5K..KM3# |
1 | ||
| 19105A - WASHER(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-01385 |
5K#..KM3# T=2.5 |
1 | ||
| 90099-01386 |
5K#..KM3# T=2.7 |
1 | ||
| 90099-01387 |
5K#..KM3# T=2.9 |
1 | ||
| 90099-01412 |
5K#..KM3# T=2.3 |
1 | ||
| 90099-01412 |
5K..KM36..RHD..4H T=2.3,SINGAPORE SPEC |
1 | ||
| 90099-01385 |
5K..KM3# T=2.5 |
1 | ||
| 19106 - CAM SUB-ASSY, DISTRIBUTOR | ||||
| 19106-34090 |
5K..KM36..RHD..4H SINGAPORE SPEC |
1 | ||
| 19106-13010 |
5K..KM3# |
1 | ||
| 19106-73020 |
5K..KM36..RHD..4H SINGAPORE SPEC |
1 | ||
| 19106-34120 |
5K..KM3# |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14020 |
5K#..KM3# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
5K#..KM3# |
1 | ||
| 19117 - SPRING, DISTRIBUTOR CAP, A | ||||
| 19117-24080 |
5K#..KM3# |
1 | ||
| 19118 - SPRING, DISTRIBUTOR CAP, B | ||||
| 19117-24080 |
5K#..KM3# |
1 | ||
| 19122 - PLATE, STATIONARY, DISTRIBUTOR | ||||
| 19122-88263 |
5KC..KM36 |
1 | ||
| 19122-33013 |
5K..KM3# |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-15010 |
5K#..KM3# |
1 | ||
| 19133 - CONDENSER, DISTRIBUTOR | ||||
| 90099-52059 |
5K..KM3# |
1 | ||
| 19135 - PLATE, HOLDER | ||||
| 19135-24080 |
5K#..KM3# |
2 | ||
| 19137 - SPRING SUB-ASSY, DAMPER | ||||
| 19137-33012 |
5K..KM3# |
1 | ||
| 19145 - POINT, DISTRIBUTOR | ||||
| 19145-26060 |
5K..KM3# |
1 | ||
| 19151 - SHAFT, GOVERNOR | ||||
| 19151-24081 |
5K#..KM3# |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-63010 |
5K#..KM3# |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-63010 |
5K#..KM3# |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07122 |
5K#..KM3# |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07122 |
5K#..KM3# |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-13390 |
5K..KM36..RHD..4H SINGAPORE SPEC |
1 | ||
| 19153-13101 |
5KC..KM36 |
1 | ||
| 19153-13380 |
5K..KM3# |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-13380 |
5K..KM3# |
1 | ||
| 19154-13390 |
5K..KM36..RHD..4H SINGAPORE SPEC |
1 | ||
| 19154-13101 |
5KC..KM36 |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-13060 |
5KC..KM36 |
1 | ||
| 19195-24081 |
5K..KM3# |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-63011 |
5K#..KM3# |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-13120 |
5KC..KM36 |
1 | ||
| 19220-13380 |
5K..KM3# |
1 | ||
| 19221 - CAP, ADJUSTER, DISTRIBUTOR | ||||
| 19221-60040 |
5K..KM3# |
1 | ||
| 19231 - TERMINAL, DISTRIBUTOR | ||||
| 19231-38011 |
5K..KM3# |
1 | ||
| 19235 - HOUSING, DISTRIBUTOR | ||||
| 19235-13030 |
5KC..KM36 |
1 | ||
| Common parts | ||||
| 90093-00413 | ||||
| 90099-00124 | ||||
| 90099-00710 | ||||
| 90099-00810 | ||||
| 90099-00871 | ||||
| 90099-00878 | ||||
| 90099-01429 | ||||
| 90099-02019 | ||||
| 90099-05803 | ||||
| 91651-60822 | ||||
| 93319-14008 | ||||
| 94511-00400 | ||||
