KM36RV-JRSQ (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

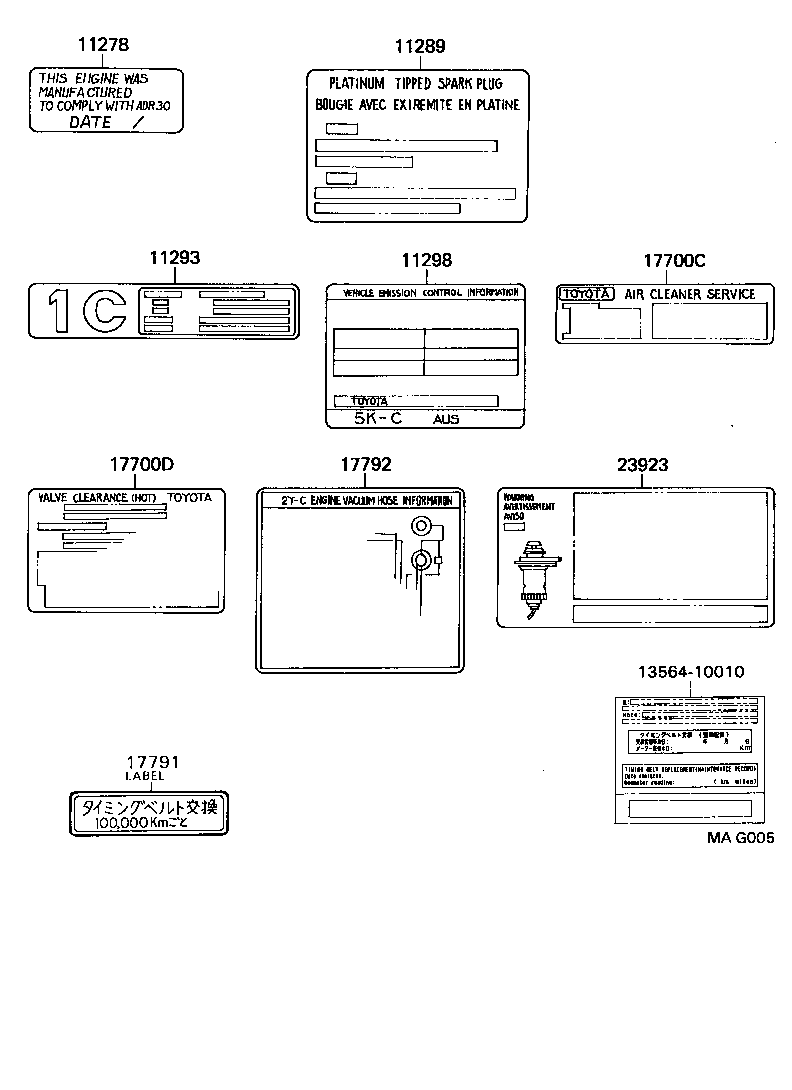

Click highlighted areas on diagram

diagram 11278 11289 11293 11298 1356410010 17700C 17700D 17791 17792 23923
Part # Description Qty Price
11278 - PLATE, ENGINE EMISSION IDENTIFICATION
11278-16020

5K..KM36..RHD..4H

SINGAPORE SPEC

 1
11298 - PLATE, EMISSION CONTROL INFORMATION
11298-13240

5KC..KM36

 1
17700D - PLATE, ENGINE CAUTION
11293-13240

5K..KM36..RHD..4H

SINGAPORE SPEC

 1
17792 - PLATE, ENGINE VACUUM HOSE INFORMATION
11293-13240

5K..KM3#

 1
17792-13370

5KC..KM36

 1
Common parts
13564-10010
