KM36RV-JRSQ (1988)

Toyota Liteace

Production Aug 1988 - Jan 1992
Engine 5KC
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

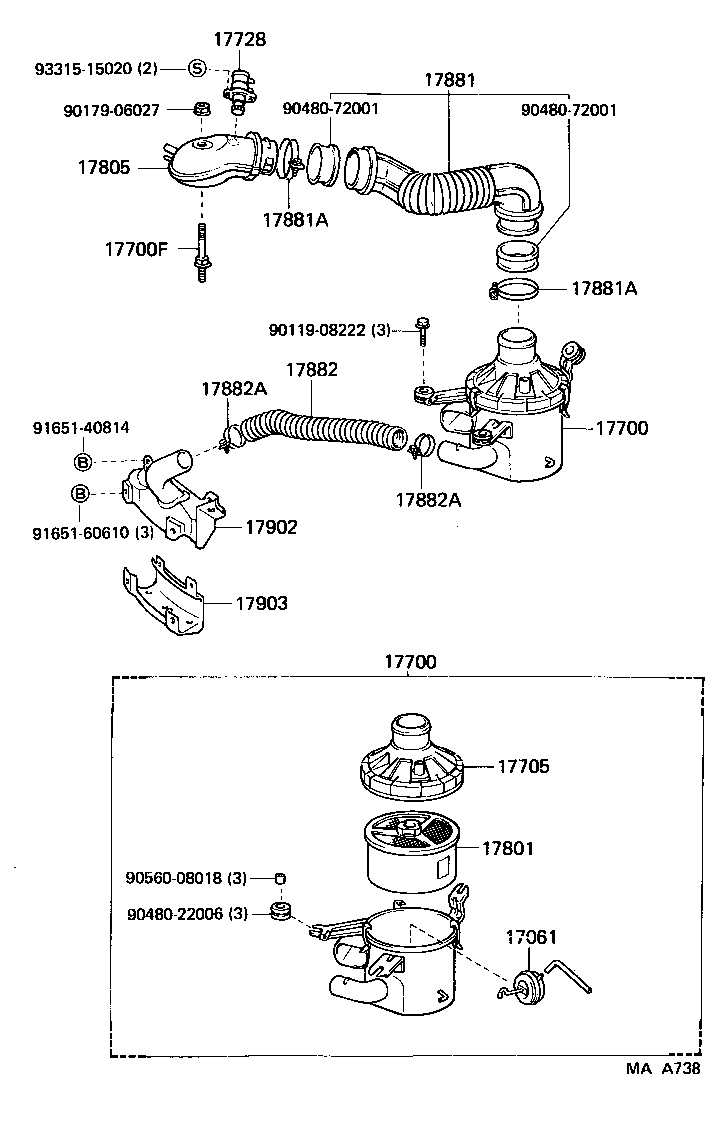

ILLUST NO. 1 OF 2(8808- )5KC

Click highlighted areas on diagram

diagram 17061 17700 17700 17700F 17705 17728 17801 17805 17881 17881A 17881A 17882 17882A 17882A 17902 17903 9011908222 9017906027 9048022006 9048072001 9048072001 9056008018 9165140814 9165160610 9331515020
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-13040

5KC..KM36

 1
17700 - CLEANER ASSY, AIR
17700-13680

5K..KM36..4F;5K..KM36..MRF

 1
17700-13560

5KC..KM36

 1
17700 - CLEANER ASSY, AIR
17700-13680

5K..KM36..4F;5K..KM36..MRF

 1
17700-13560

5KC..KM36

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06060

5K#..KM3#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-13140

5K..KM36,37

 1
17705-13130

5KC..KM36

 1
17728 - VALVE, THERMOSTATIC
17728-13060

5KC..KM36

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-13050

5K#..KM3#

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-13050

5KC..KM36

 1
17805-13060

5K..KM3#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-13140

5K#..KM36..RHD

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-80001

5K#..KM3#

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-80001

5K#..KM3#

 2
17882 - HOSE, AIR CLEANER, NO.2
17882-72040

5KC..KM36

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10460

5KC..KM36

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10460

5KC..KM36

 2
17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1
17167-13060

5KC..KM36

 1
17903 - INLET SUB-ASSY, HOT AIR INTAKE, NO.2
17168-13020

5KC..KM36

 1
Common parts
90119-08222
90179-06027
90480-22006
90480-72001
90560-08018
91651-40814
91651-60610
93315-15020

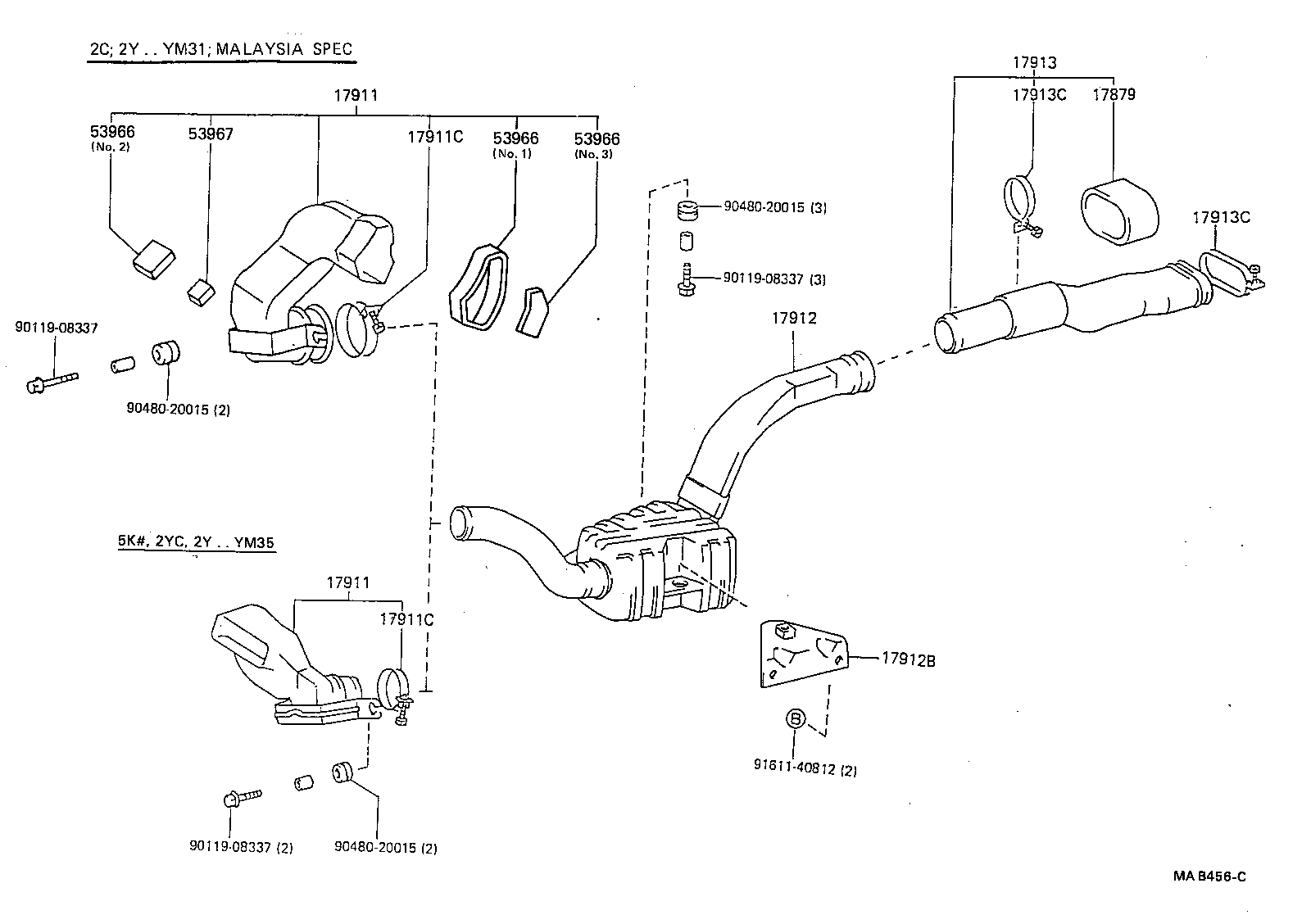

ILLUST NO. 2 OF 2(8808- )5K#

Click highlighted areas on diagram

diagram 17879 17911 17911 17911C 17911C 17912 17912B 17913 17913C 17913C 53966 53966 53966 53967 9011908337 9011908337 9011908337 9048020015 9048020015 9048020015 9161140812
Part # Description Qty Price
17879 - PAD, AIR CLEANER INLET
17879-95701

5KC..KM36

 1
17879-95701

5KC..KM36

 1
17879-95701

5KC..KM36

 1
17911 - DUCT, COOL AIR INTAKE, NO.1
52810-95700

5K..KM30;5KC..KM36

 1
52810-95700

5K..KM30;5KC..KM36

 1
52810-95700

5K..KM30;5KC..KM36

 1
17911 - DUCT, COOL AIR INTAKE, NO.1
52810-95700

5K..KM30;5KC..KM36

 1
52810-95700

5K..KM30;5KC..KM36

 1
52810-95700

5K..KM30;5KC..KM36

 1
17911C - CLAMP, COOL AIR INTAKE DUCT, NO.1
96111-10710

5KC..KM36

 1
96111-10710

5KC..KM36

 1
96111-10710

5KC..KM36

 1
17911C - CLAMP, COOL AIR INTAKE DUCT, NO.1
96111-10710

5KC..KM36

 1
96111-10710

5KC..KM36

 1
96111-10710

5KC..KM36

 1
17912 - DUCT, COOL AIR INTAKE, NO.2
52820-95704

5KC..KM36

 1
52820-95704

5KC..KM36

 1
52820-95704

5KC..KM36

 1
17912B - BRACKET, COOL AIR INTAKE DUCT, NO.2
52854-95700

5KC..KM36

 1
52854-95700

5KC..KM36

 1
52854-95700

5KC..KM36

 1
17913 - DUCT, COOL AIR INTAKE, NO.3
52830-95702

5KC..KM36

 1
52830-95702

5KC..KM36

 1
52830-95702

5KC..KM36

 1
17913C - CLAMP, COOL AIR INTAKE DUCT, NO.3
90460-01041

5KC..KM36

AIR CLEANER SIDE

 1
90460-01041

5KC..KM36

AIR CLEANER SIDE

 1
90460-01041

5KC..KM36

AIR CLEANER SIDE

 1
90460-69005

5KC..KM36

DUCT SIDE

 2
90460-69005

5KC..KM36

DUCT SIDE

 2
90460-69005

5KC..KM36

DUCT SIDE

 2
90460-69005

5KC..KM36

DUCT SIDE

 1
90460-69005

5KC..KM36

DUCT SIDE

 1
90460-69005

5KC..KM36

DUCT SIDE

 1
17913C - CLAMP, COOL AIR INTAKE DUCT, NO.3
90460-01041

5KC..KM36

AIR CLEANER SIDE

 1
90460-01041

5KC..KM36

AIR CLEANER SIDE

 1
90460-01041

5KC..KM36

AIR CLEANER SIDE

 1
90460-69005

5KC..KM36

DUCT SIDE

 2
90460-69005

5KC..KM36

DUCT SIDE

 2
90460-69005

5KC..KM36

DUCT SIDE

 2
90460-69005

5KC..KM36

DUCT SIDE

 1
90460-69005

5KC..KM36

DUCT SIDE

 1
90460-69005

5KC..KM36

DUCT SIDE

 1
Common parts
90119-08337
90480-20015
91611-40812

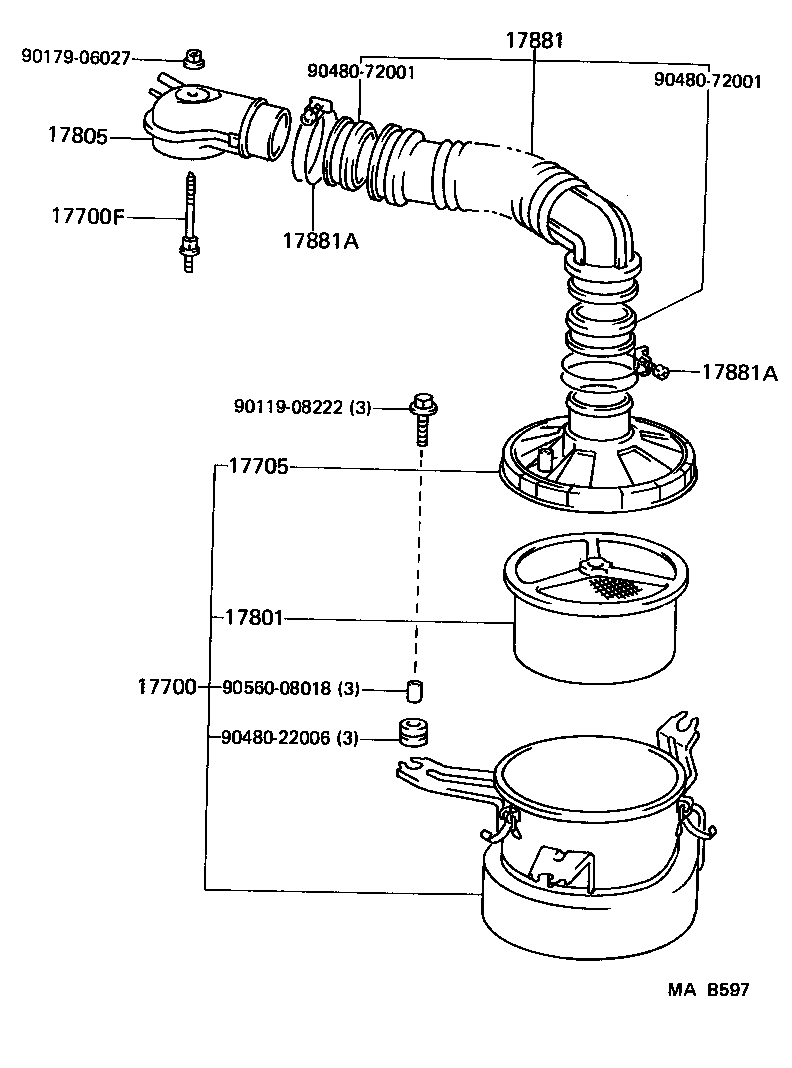

ILLUST NO. 1 OF 2(8808- )5K

Click highlighted areas on diagram

diagram 17700 17700F 17705 17801 17805 17881 17881A 17881A 9011908222 9017906027 9048022006 9048072001 9048072001 9056008018
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-13680

5K..KM36..4F;5K..KM36..MRF

 1
17700-13560

5KC..KM36

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06060

5K#..KM3#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-13140

5K..KM36,37

 1
17705-13130

5KC..KM36

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-13050

5K#..KM3#

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-13050

5KC..KM36

 1
17805-13060

5K..KM3#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-13140

5K#..KM36..RHD

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-80001

5K#..KM3#

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-80001

5K#..KM3#

 2
Common parts
90119-08222
90179-06027
90480-22006
90480-72001
90560-08018

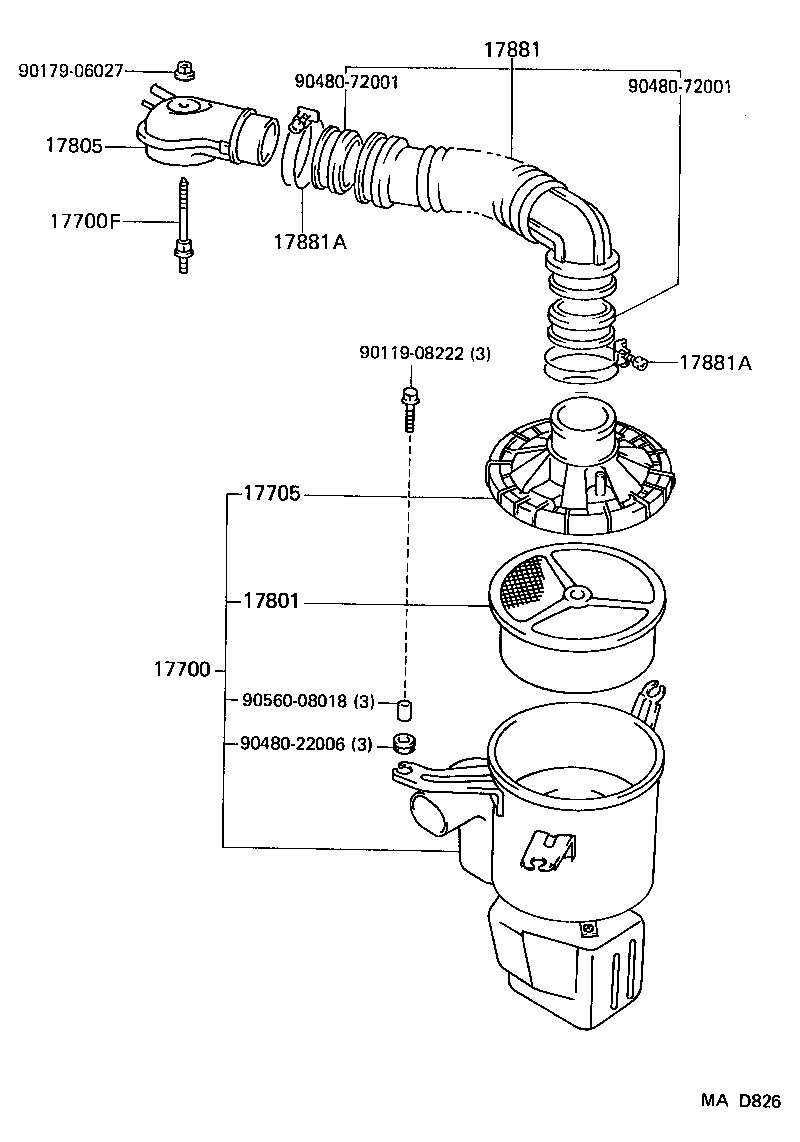

ILLUST NO. 1 OF 2(9001- )5K

Click highlighted areas on diagram

PHILIPPINES SPEC

diagram 17700 17700F 17705 17801 17805 17881 17881A 17881A 9011908222 9017906027 9048022006 9048072001 9048072001 9056008018
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-13680

5K..KM36..4F;5K..KM36..MRF

 1
17700-13560

5KC..KM36

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06060

5K#..KM3#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-13140

5K..KM36,37

 1
17705-13130

5KC..KM36

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-13050

5K#..KM3#

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-13050

5KC..KM36

 1
17805-13060

5K..KM3#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-13140

5K#..KM36..RHD

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-80001

5K#..KM3#

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-80001

5K#..KM3#

 2
Common parts
90119-08222
90179-06027
90480-22006
90480-72001
90560-08018
