KM36RV-JRSQ (1988)
Toyota Liteace
(8808- )2C,5K,2Y

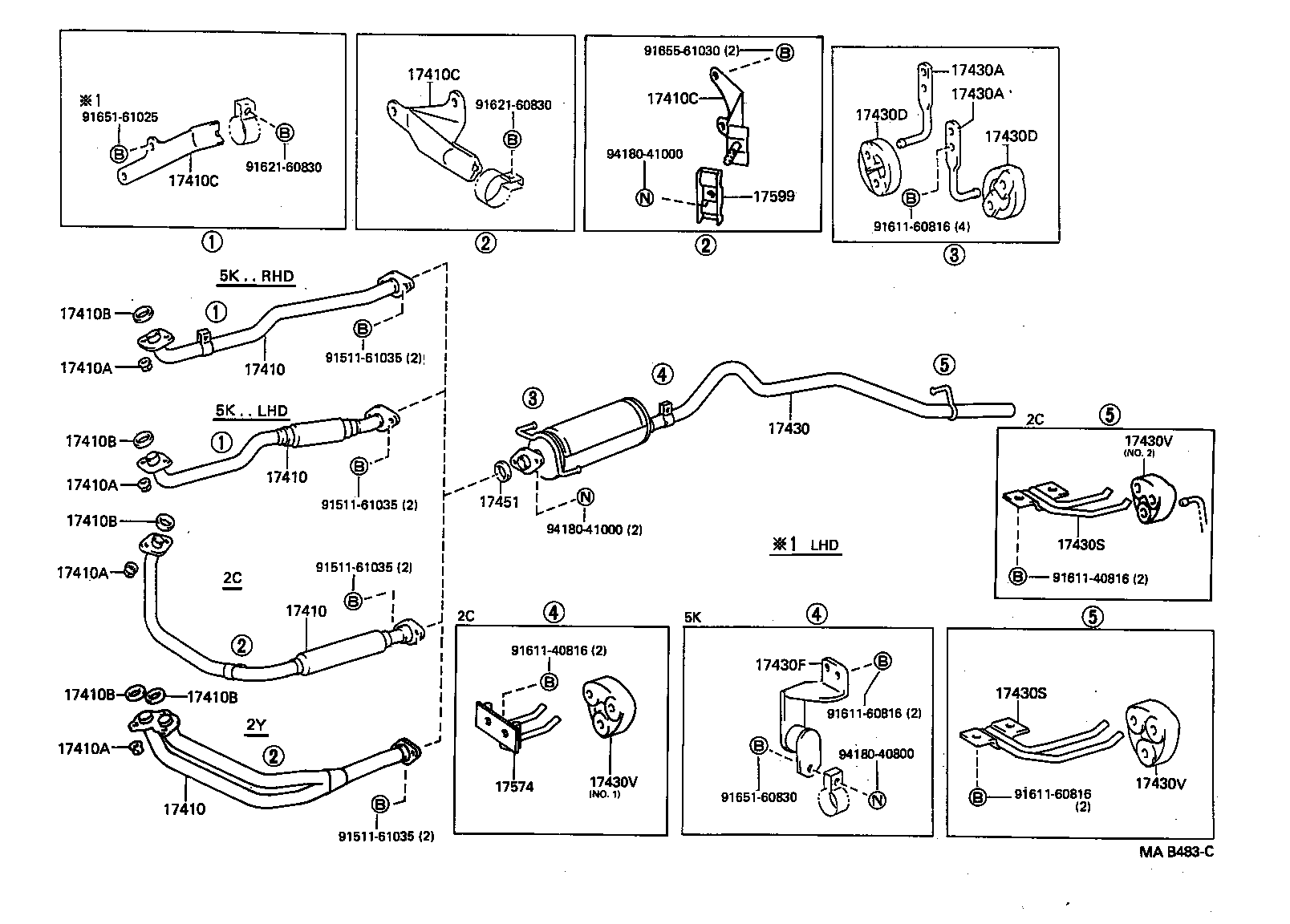

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-13360 |
5KC..KM36 |
1 | ||
| 17410-13280 |
5K..KM36..RHD |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-13360 |
5KC..KM36 |
1 | ||
| 17410-13280 |
5K..KM36..RHD |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-13360 |
5KC..KM36 |
1 | ||
| 17410-13280 |
5K..KM36..RHD |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-13360 |
5KC..KM36 |
1 | ||
| 17410-13280 |
5K..KM36..RHD |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
2C,5K#..CM36,KM3# |
2 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
2C,5K#..CM36,KM3# |
2 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
2C,5K#..CM36,KM3# |
2 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
2C,5K#..CM36,KM3# |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
2C,5K#..CM36,KM3# |
1 | ||
| 90917-06039 |
2C,5K#..CM36,KM3# |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
2C,5K#..CM36,KM3# |
1 | ||
| 90917-06039 |
2C,5K#..CM36,KM3# |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
2C,5K#..CM36,KM3# |
1 | ||
| 90917-06039 |
2C,5K#..CM36,KM3# |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
2C,5K#..CM36,KM3# |
1 | ||
| 90917-06039 |
2C,5K#..CM36,KM3# |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
2C,5K#..CM36,KM3# |
1 | ||
| 90917-06039 |
2C,5K#..CM36,KM3# |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-13160 |
5K#..KM3# |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-13160 |
5K#..KM3# |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-13160 |
5K#..KM3# |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-13390 |
5KC,2YC..KM36,YM35 |
1 | ||
| 17430-13361 |
5K..KM36,37 |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17562-13060 |
2C,5K,2Y..CM36,KM3#,YM31,35 |
2 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17562-13060 |
2C,5K,2Y..CM36,KM3#,YM31,35 |
2 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17563-35020 |
2C,5K,2Y..CM36,KM3#,YM31,35 |
2 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17563-35020 |
2C,5K,2Y..CM36,KM3#,YM31,35 |
2 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17562-13070 |
5K..KM3# |
1 | ||
| 17574-13050 |
5KC,2YC..KM36,YM35 NO.1 |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17575-13060 |
5K#,2Y#..KM3#,YM31,35;2C..CM36..MRF..5F..GEN |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17575-13060 |
5K#,2Y#..KM3#,YM31,35;2C..CM36..MRF..5F..GEN |
1 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17565-13030 |
5K#,2Y#..KM3#,YM31,35;2C..CM36..MRF..5F..GEN |
1 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17565-13030 |
5K#,2Y#..KM3#,YM31,35;2C..CM36..MRF..5F..GEN |
1 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17565-13030 |
5K#,2Y#..KM3#,YM31,35;2C..CM36..MRF..5F..GEN |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
2C,5K..CM36,KM3# |
1 | ||
| 90917-06020 |
5KC..KM36 |
2 | ||
| 90917-06044 |
5KC..KM36 |
2 | ||
| Common parts | ||||
| 91511-61035 | ||||
| 91611-40816 | ||||
| 91611-60816 | ||||
| 91621-60830 | ||||
| 91651-60830 | ||||
| 91651-61025 | ||||
| 91655-61030 | ||||
| 94180-40800 | ||||
| 94180-41000 | ||||

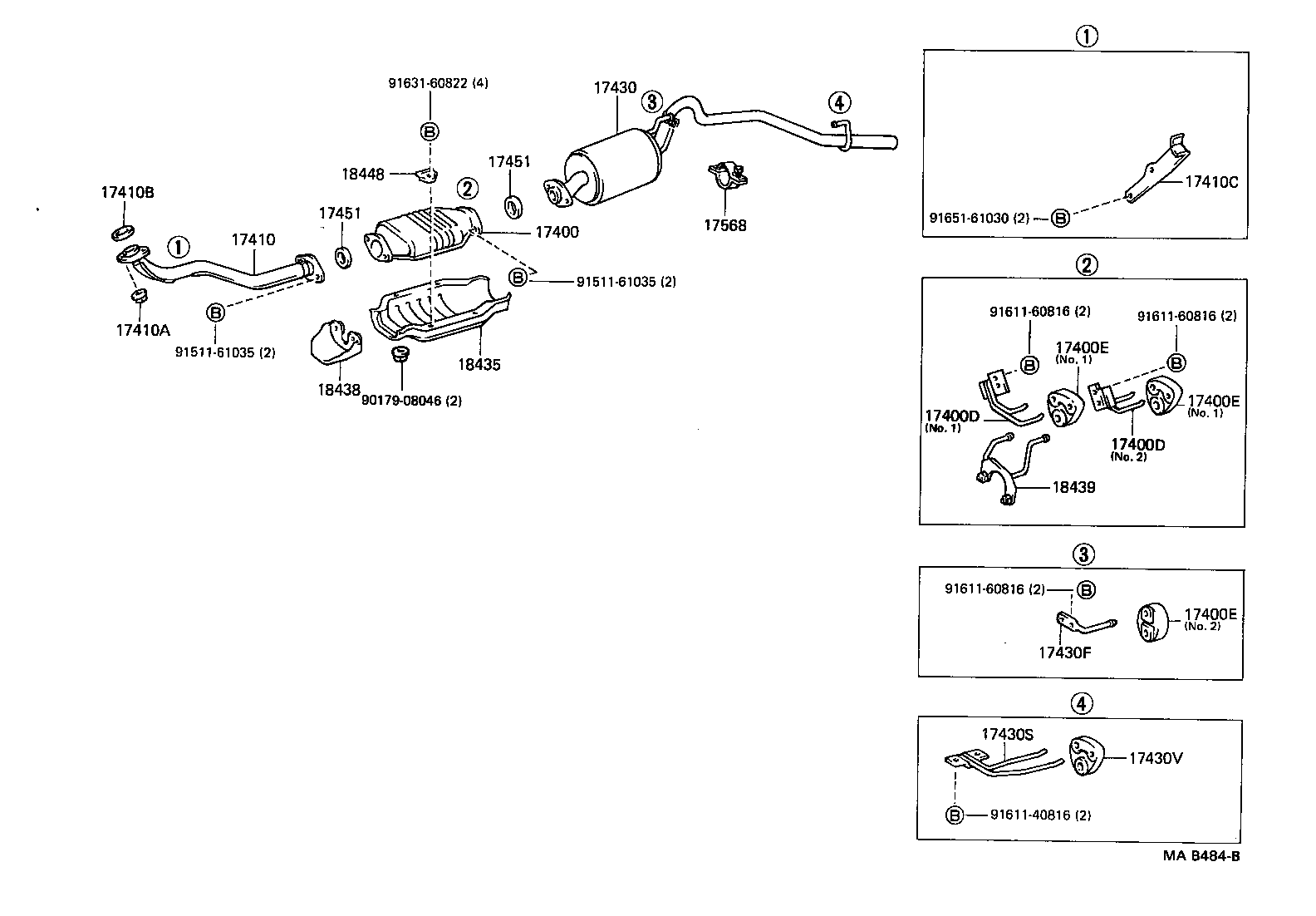

(8808- )5KC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400 - CONVERTER ASSY, W/CATALYST | ||||
| 18450-74071 |
5KC..KM36 |
1 | ||
| 17400D - BRACKET, CATALYTIC CONVERTER SUPPORT | ||||
| 17588-13030 |
5KC,2YC..KM36,YM35 NO.2 |
1 | ||
| 17587-13050 |
5KC,2YC..KM36,YM35 NO.1 |
1 | ||
| 17400D - BRACKET, CATALYTIC CONVERTER SUPPORT | ||||
| 17588-13030 |
5KC,2YC..KM36,YM35 NO.2 |
1 | ||
| 17587-13050 |
5KC,2YC..KM36,YM35 NO.1 |
1 | ||
| 17400E - RING, CATALYTIC CONVERTER | ||||
| 17565-13030 |
5KC,2YC..KM36,YM35 NO.1 |
2 | ||
| 17565-13040 |
5KC,2YC..KM36,YM35 NO.2 |
1 | ||
| 17400E - RING, CATALYTIC CONVERTER | ||||
| 17565-13030 |
5KC,2YC..KM36,YM35 NO.1 |
2 | ||
| 17565-13040 |
5KC,2YC..KM36,YM35 NO.2 |
1 | ||
| 17400E - RING, CATALYTIC CONVERTER | ||||
| 17565-13030 |
5KC,2YC..KM36,YM35 NO.1 |
2 | ||
| 17565-13040 |
5KC,2YC..KM36,YM35 NO.2 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-13360 |
5KC..KM36 |
1 | ||
| 17410-13280 |
5K..KM36..RHD |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
2C,5K#..CM36,KM3# |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
2C,5K#..CM36,KM3# |
1 | ||
| 90917-06039 |
2C,5K#..CM36,KM3# |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-13160 |
5K#..KM3# |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-13390 |
5KC,2YC..KM36,YM35 |
1 | ||
| 17430-13361 |
5K..KM36,37 |
1 | ||
| 17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17562-13070 |
5K..KM3# |
1 | ||
| 17574-13050 |
5KC,2YC..KM36,YM35 NO.1 |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17575-13060 |
5K#,2Y#..KM3#,YM31,35;2C..CM36..MRF..5F..GEN |
1 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17565-13030 |
5K#,2Y#..KM3#,YM31,35;2C..CM36..MRF..5F..GEN |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
2C,5K..CM36,KM3# |
1 | ||
| 90917-06020 |
5KC..KM36 |
2 | ||
| 90917-06044 |
5KC..KM36 |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
2C,5K..CM36,KM3# |
1 | ||
| 90917-06020 |
5KC..KM36 |
2 | ||
| 90917-06044 |
5KC..KM36 |
2 | ||
| 17568 - STAY, EXHAUST PIPE SUPPORT | ||||
| 17568-13010 |
5KC..KM36 |
1 | ||
| 18435 - PROTECTOR, CATALYTIC CONVERTER | ||||
| 18407-15020 |
5KC..KM36 |
1 | ||
| 18438 - BRACKET, CONNECTOR PROTECTOR, FRONT | ||||
| 17582-70020 |
5KC..KM36 |
1 | ||
| 18439 - BRACKET, CONVERTOR PROTECTOR, REAR | ||||
| 17503-72100 |
5KC,2YC..KM36,YM35 |
1 | ||
| 18448 - BRACKET, CONVERTER PROTECTOR, CENTER | ||||
| 18439-15030 |
5KC..KM36 |
2 | ||
| Common parts | ||||
| 90179-08046 | ||||
| 91511-61035 | ||||
| 91611-40816 | ||||
| 91611-60816 | ||||
| 91631-60822 | ||||
| 91651-61030 | ||||
